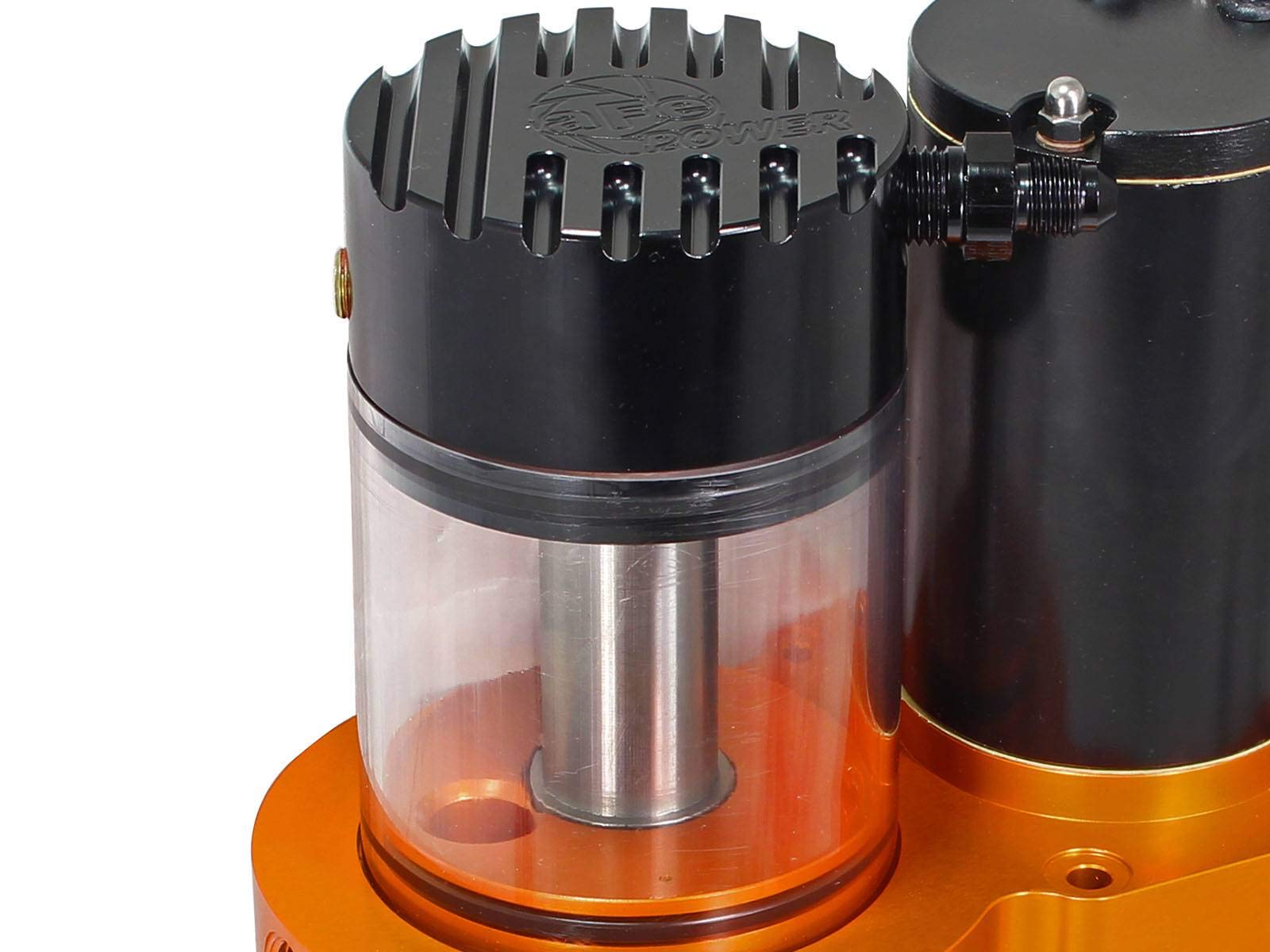

Clear High-Impact Polycarbonate Sight Glass: Enables visual inspection of fuel.

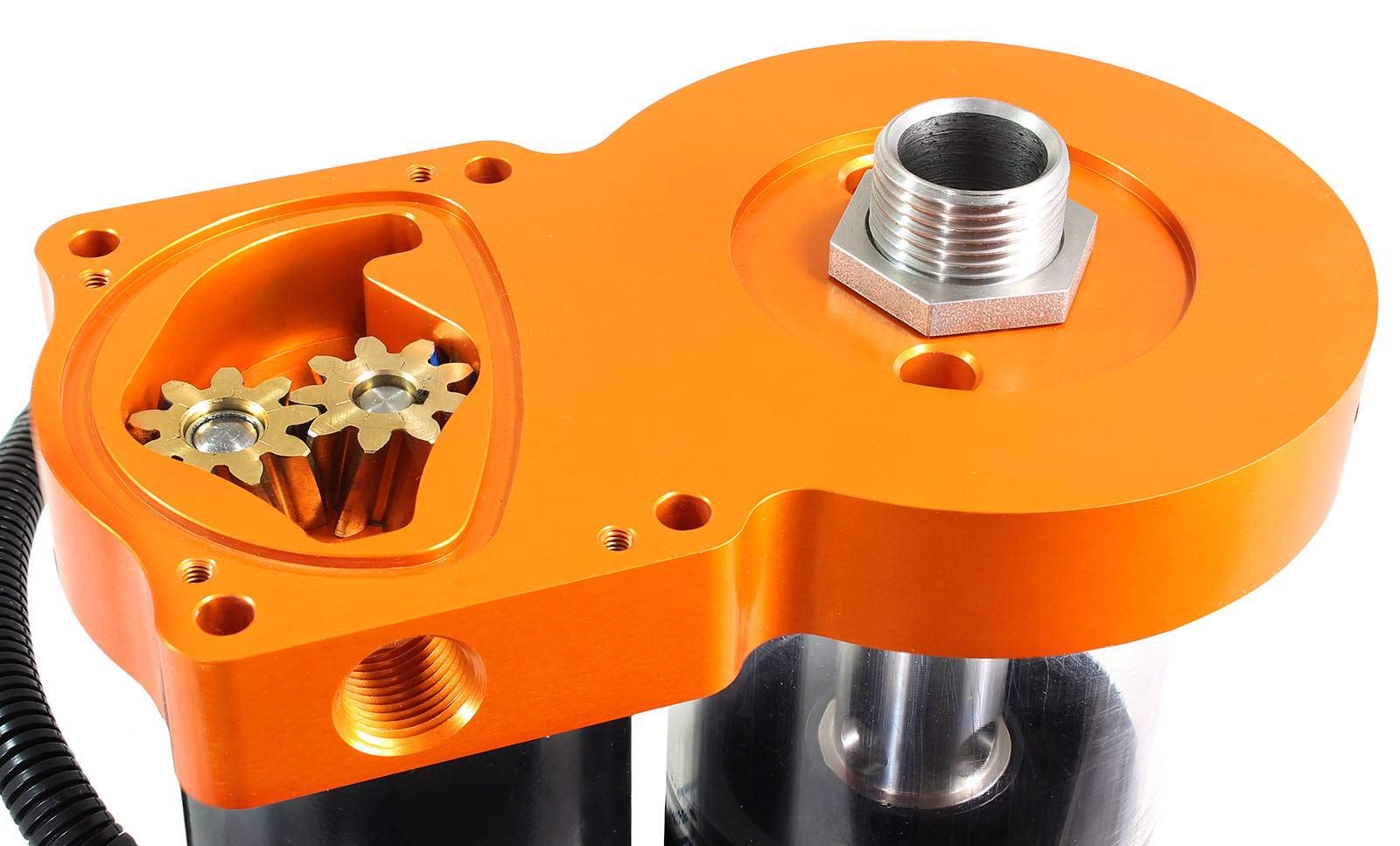

Helical Bronze Spur Gears: Gears made of bronze are more forgiving of contaminants than steel gears.
The helical spur gear design operates quieter than straight cut gears.
Billet 6061-T6 Aluminum Manifold: Addresses porosity concerns with cast aluminum.

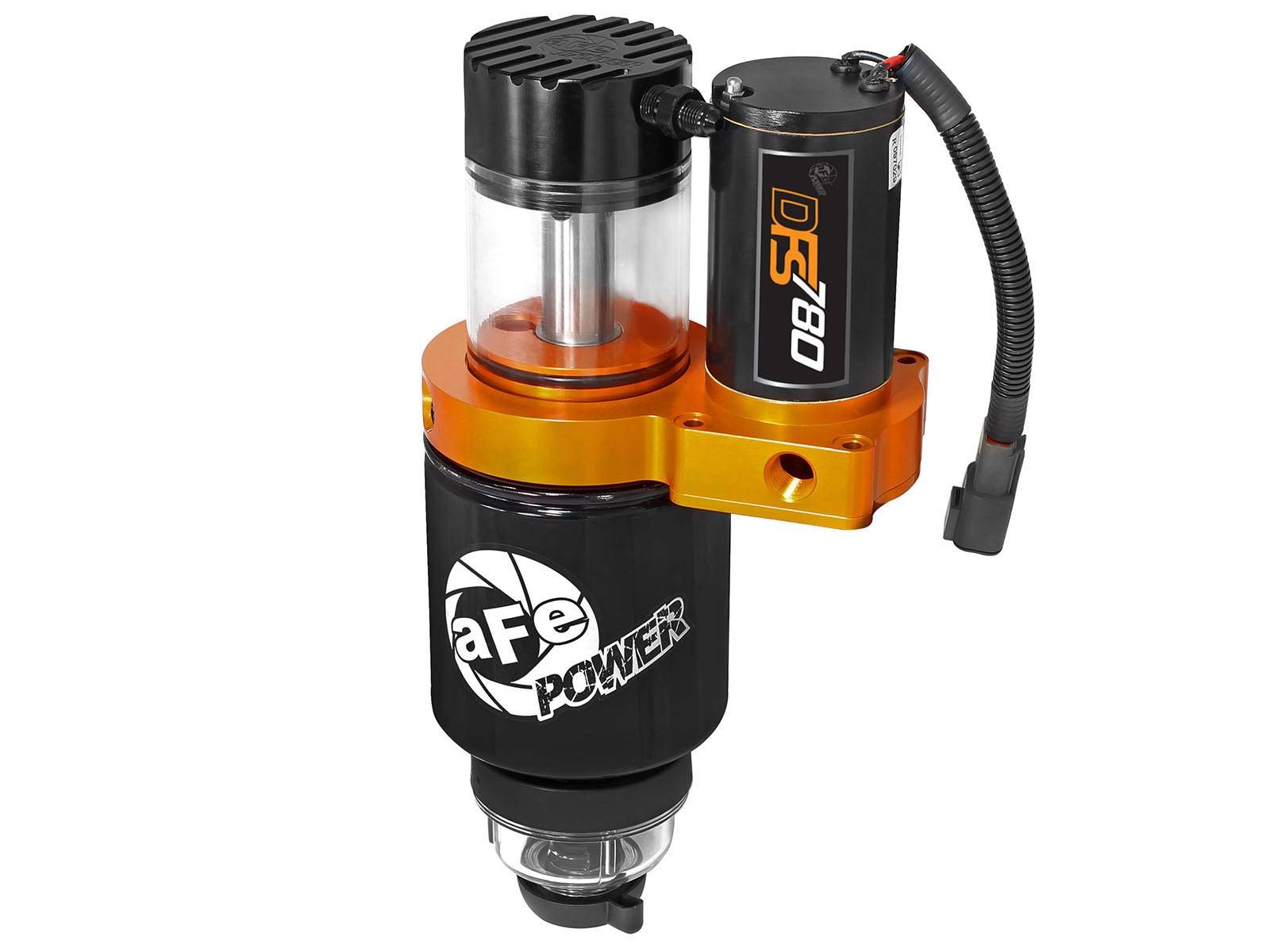

"Marine Grade" Motor: Guarded against dust intrusion and powerful water jets.

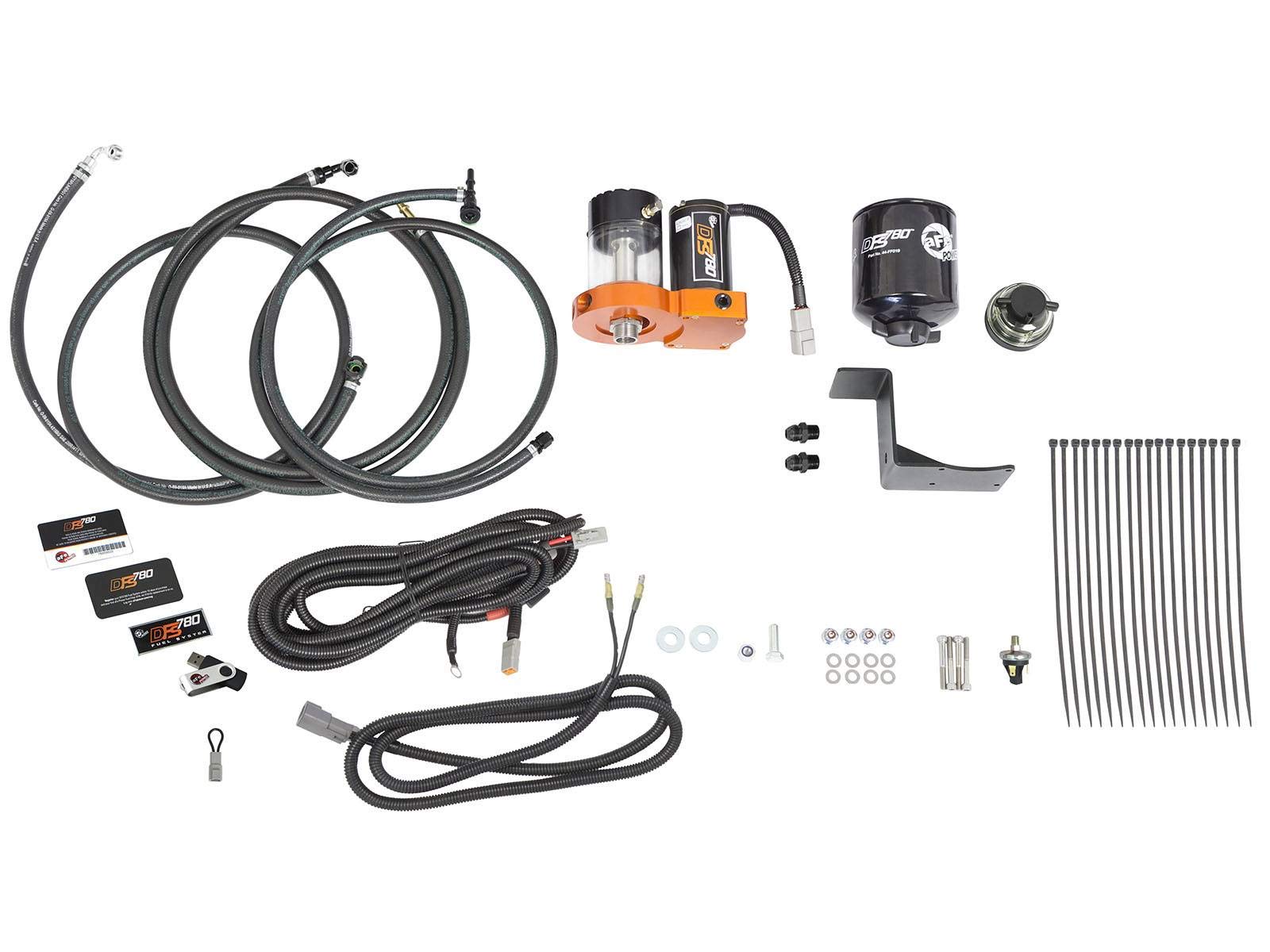

Plug & Play Installation: Supplied harness connects directly to battery and uses Deutsch weather-proof connectors.

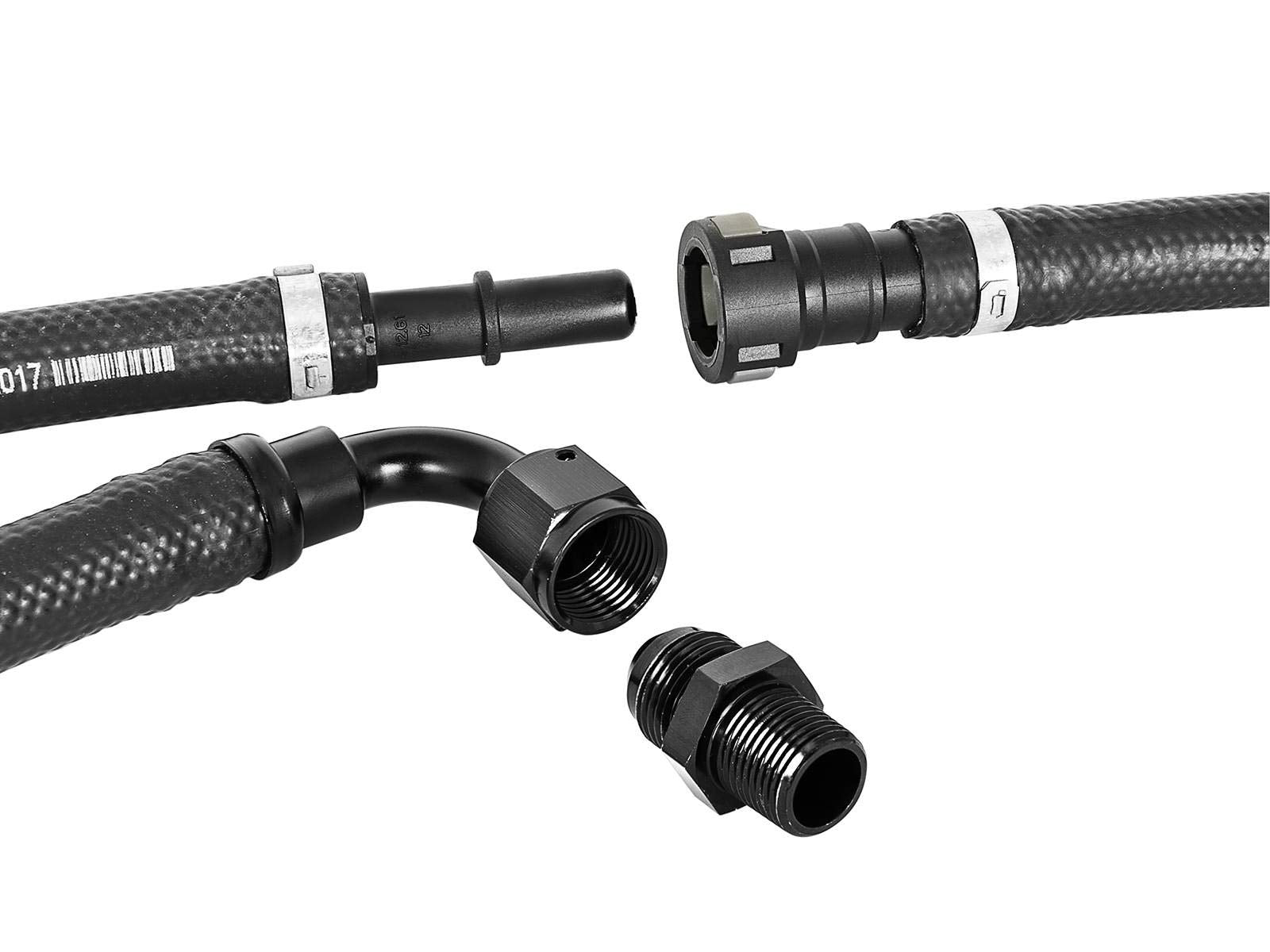

No cutting or modifications of the stock fuel lines are required.
Vehicle can be easily returned to stock.
Boost Activated Pump Engagement: Supplied preset boost switch activates pump only under load, which reduces wear & tear on the DFS780 pump.
PEEK Bearing Wear Surfaces: The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to minimize both noise and wear.
Contoured CNC Machining Of Manifold Passages: Improves flow through the manifold to reduce pressure drop due to flow restrictions.
Direct Bolt-on Steel Mounting Bracket: Heavy-duty bracket mounts to the frame and uses existing holes to secure.
Fuel Pressure Gauge Port: 1/8" NPT port allows customer to attach an external pressure gauge to monitor fuel pressure.
O.E Quality Viton Seals: Compatible with diesel and biodiesel fuels.
Note: This system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicle.
