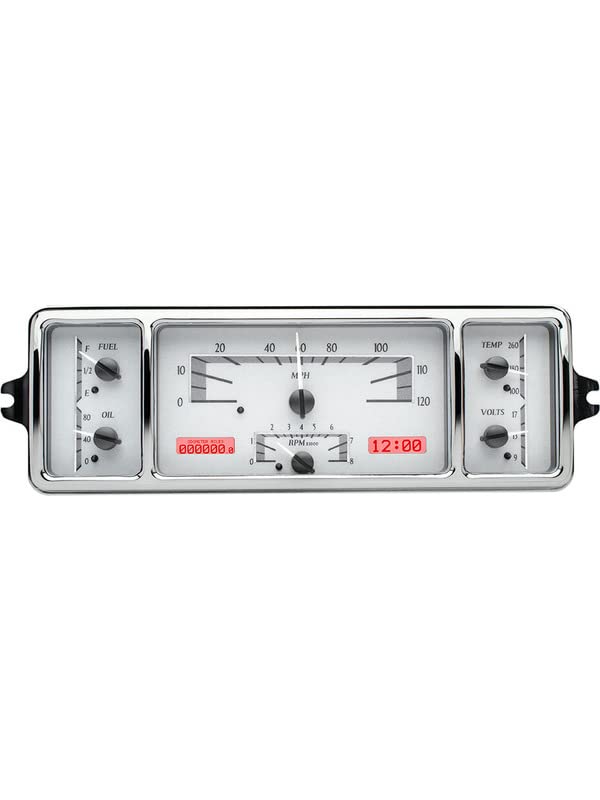

The VHX Systems fit directly into the dash of a 1939 Chevy Car, including a triple-plated chrome machined aluminum instrument housing.
This system includes a full new machined aluminum/chromed housing which attaches directly into the back of the stock dash.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the features that set the VHX Series apart from yesterday’s traditional approach to instrumentation.
A few features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.
Completely engineered and manufactured at the Dakota Digital facility in Sioux Falls, South Dakota, the VHX Series has revolutionized the instrumentation industry!
Dimensions: Overall: 12" W x 4" H.
Machined Aluminum Bezel Included.
Analog Gauges: Speedometer - 0-120 MPH Tachometer - 0-8000 RPM Oil Pressure - 0-80 psi Water Temperature - 100-260ºF Fuel Level - E, 1/4, 1/2, 3/4, F Voltmeter - 9-17 VDC.
Digital Message Centers: Standard Displays: -Odometer (One time user settable, Million Mile) -Dual (A/B) Trip Meter (0- 9,999.9) -Clock (12 hour) Performance Meters: -0-60 MPH Timer (0- 100 kmh) -1/4 mile time -1/4 mile end speed (trap speed) -High speed recall -High RPM recall.
Built-In Indicators: -Turn Signals (Left/ Right) -High Beam -Check Engine -Parking Brake -Cruise Control (On/ On & Engaged when vehicle is equipped) -Gear Position (Optional GSS-2000 sensor required, sold separately) -4 x 4 (When vehicle is equipped) -Wait to Start (When vehicle is equipped).
