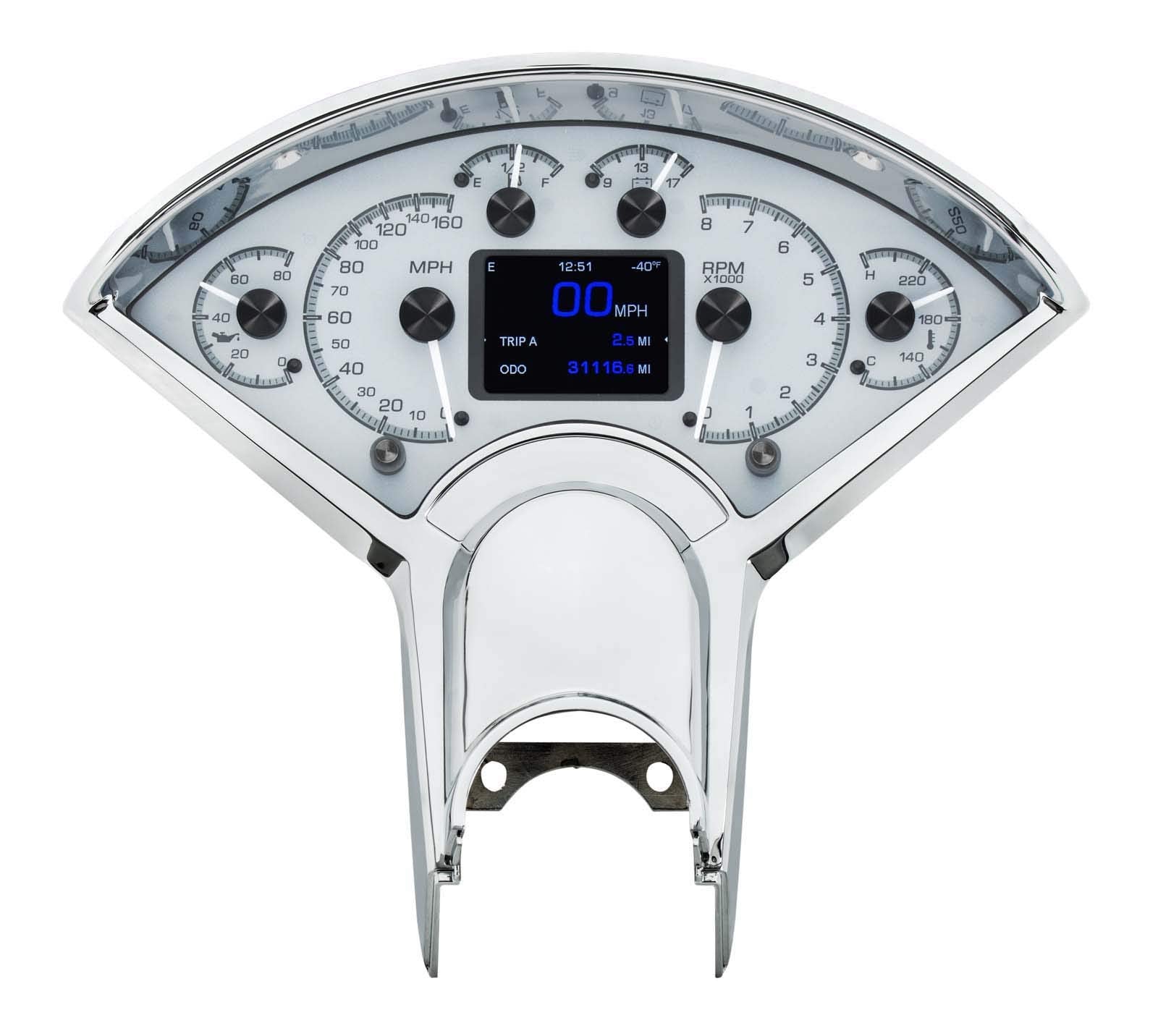

One of the first direct-fit applications offered by Dakota Digital, an HDX system was created for the icon.
A large TFT display allows you to expand upon the six analog gauge readings, all installing into your stock or reproduction bezel.
Bezel is NOT included, shown for visual/presentation purposes only.
The system uses OEM or reproduction style bezel.
Each HDX system allows independent illumination colors for the gauge readings and needles, as well as the message centers.
Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons or the Bluetooth app for Apple and Android devices.
Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced (hidden) indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.

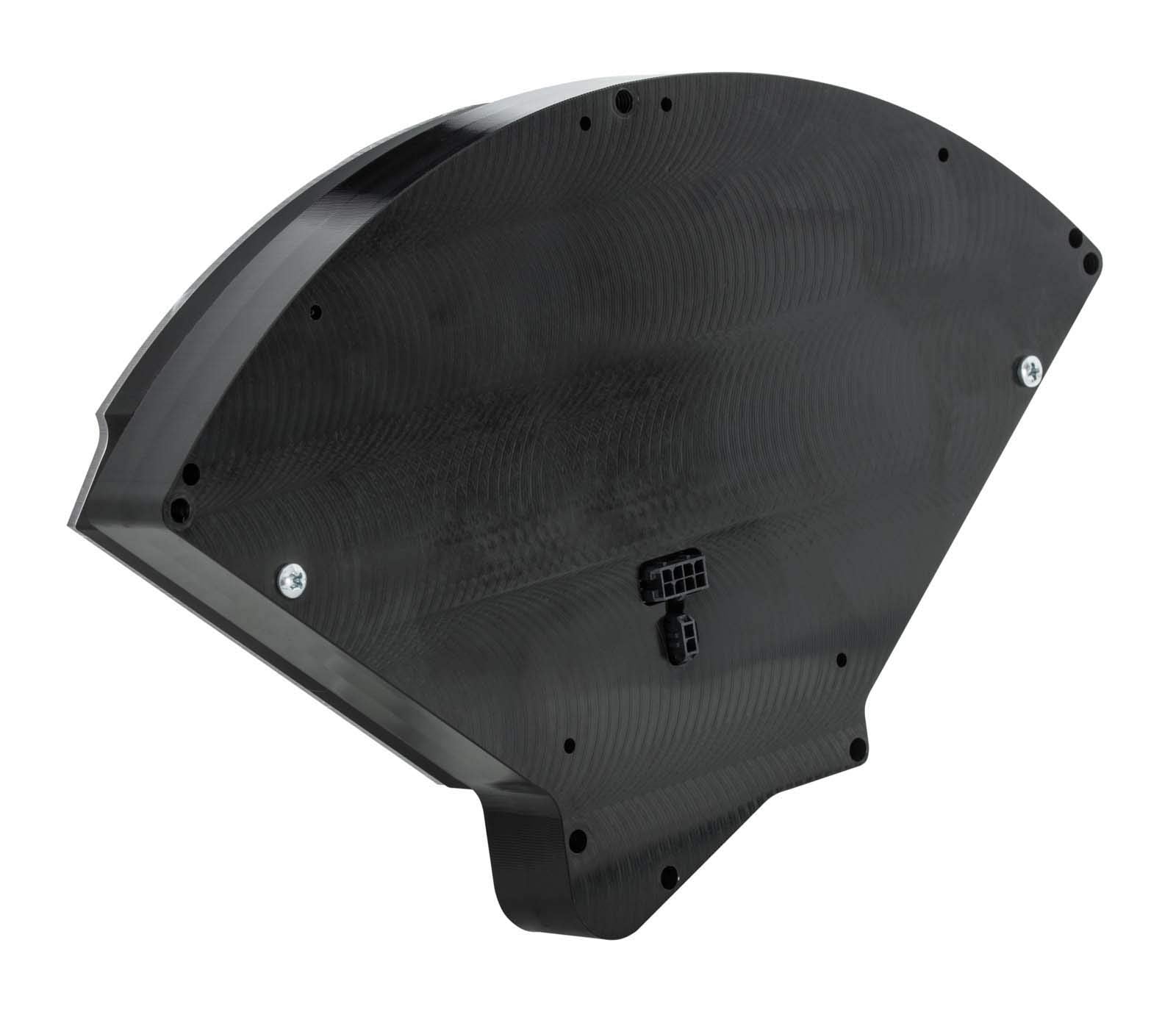

With the central control box, installation is simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

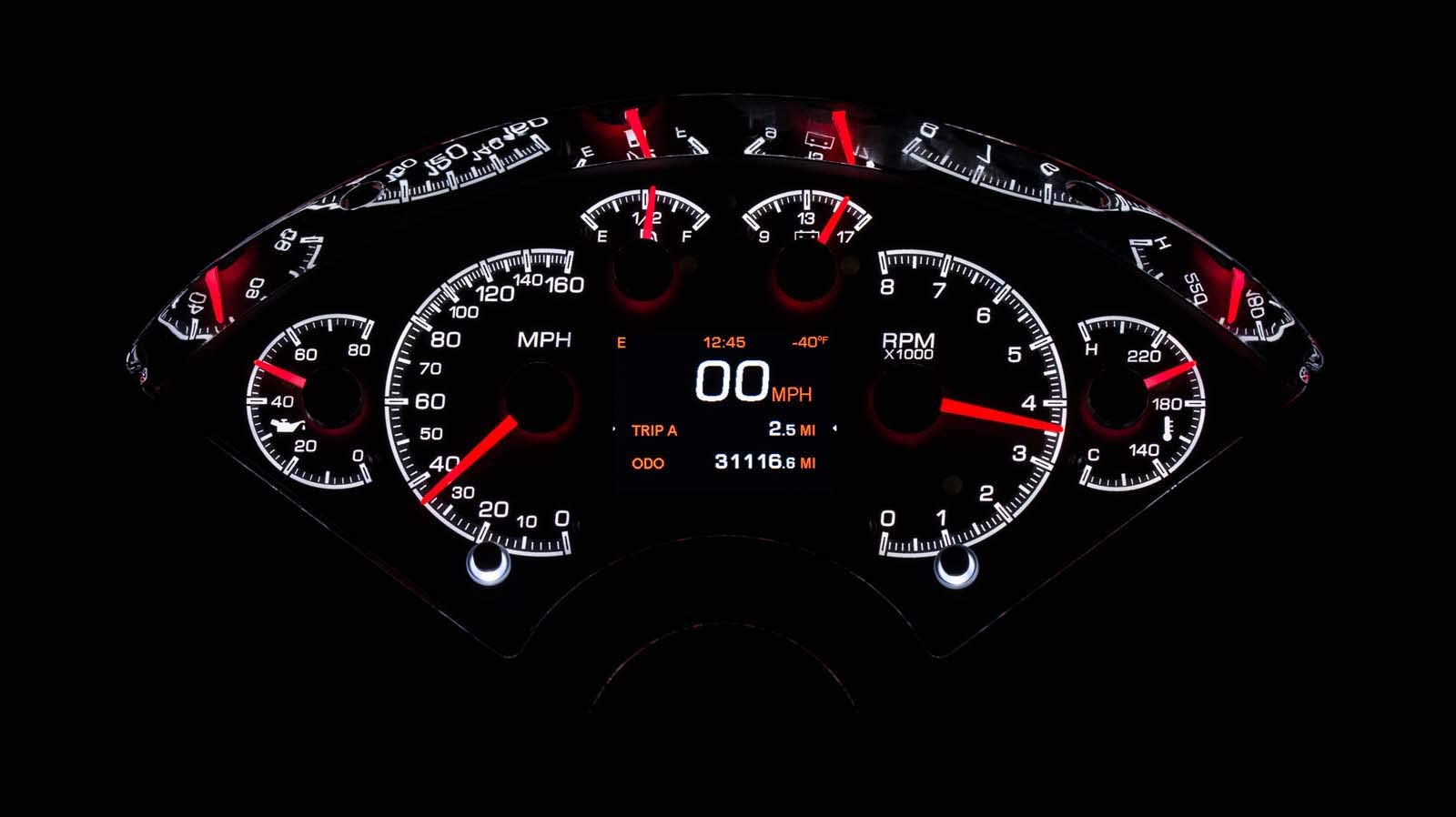

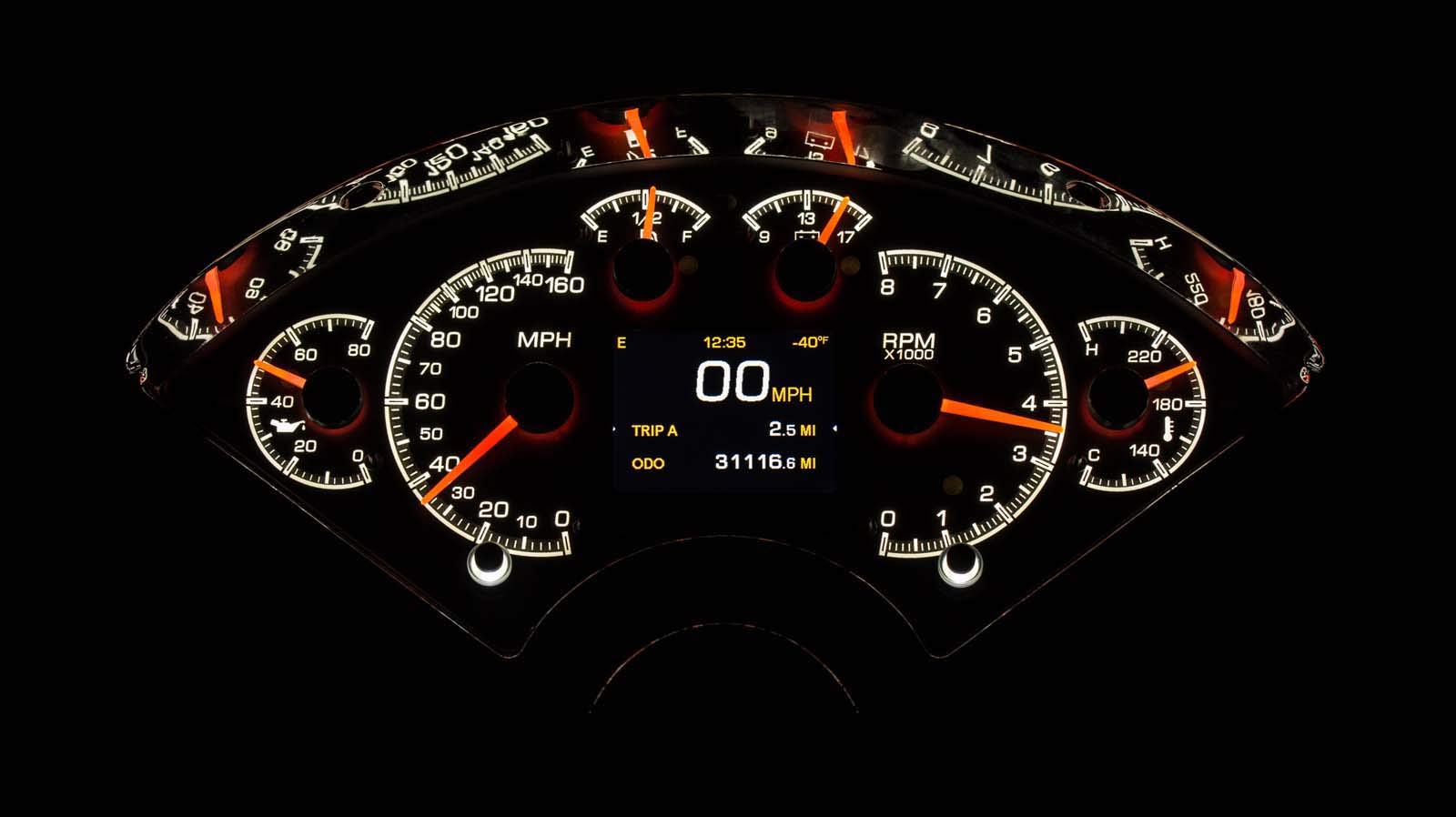

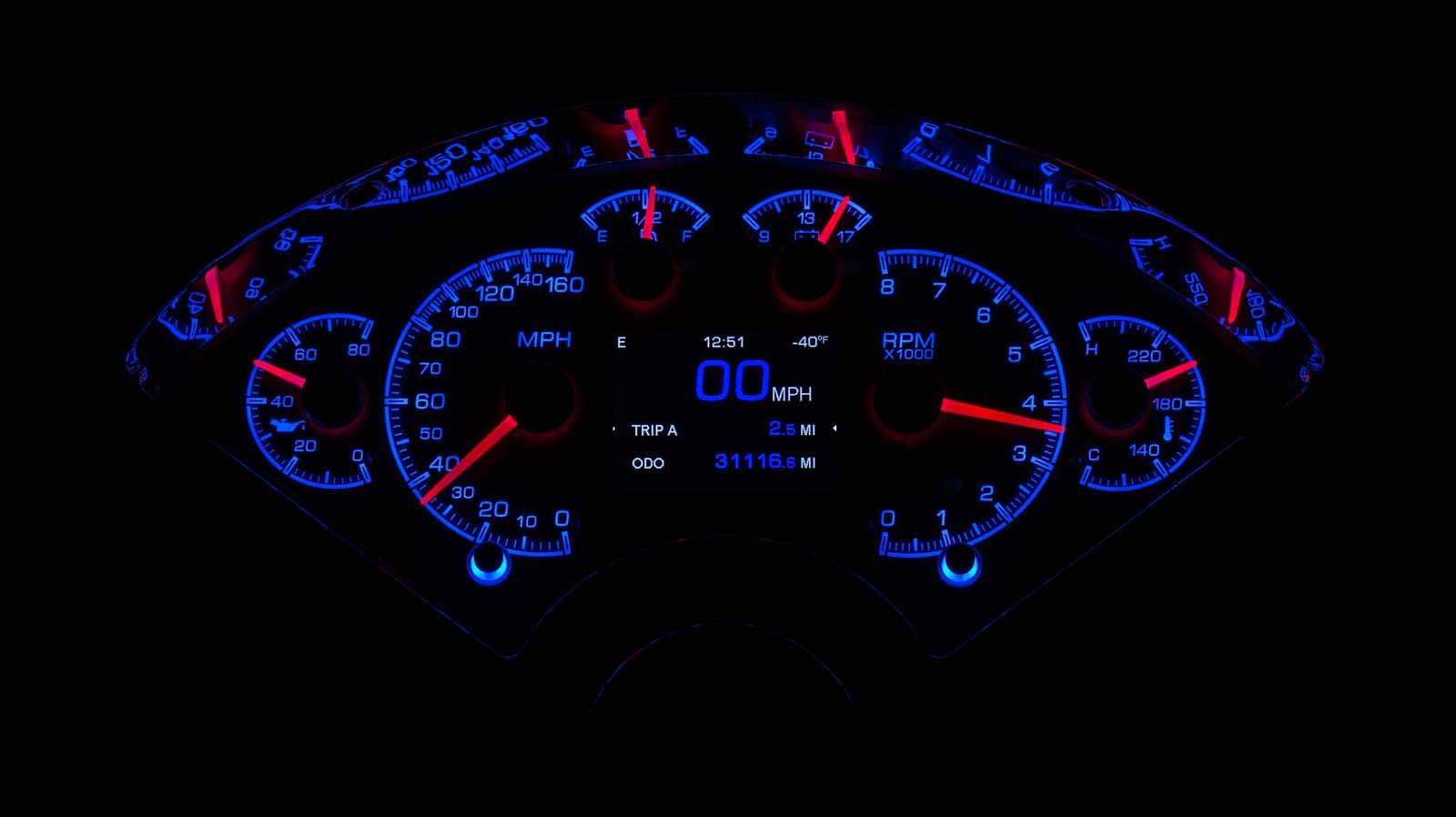

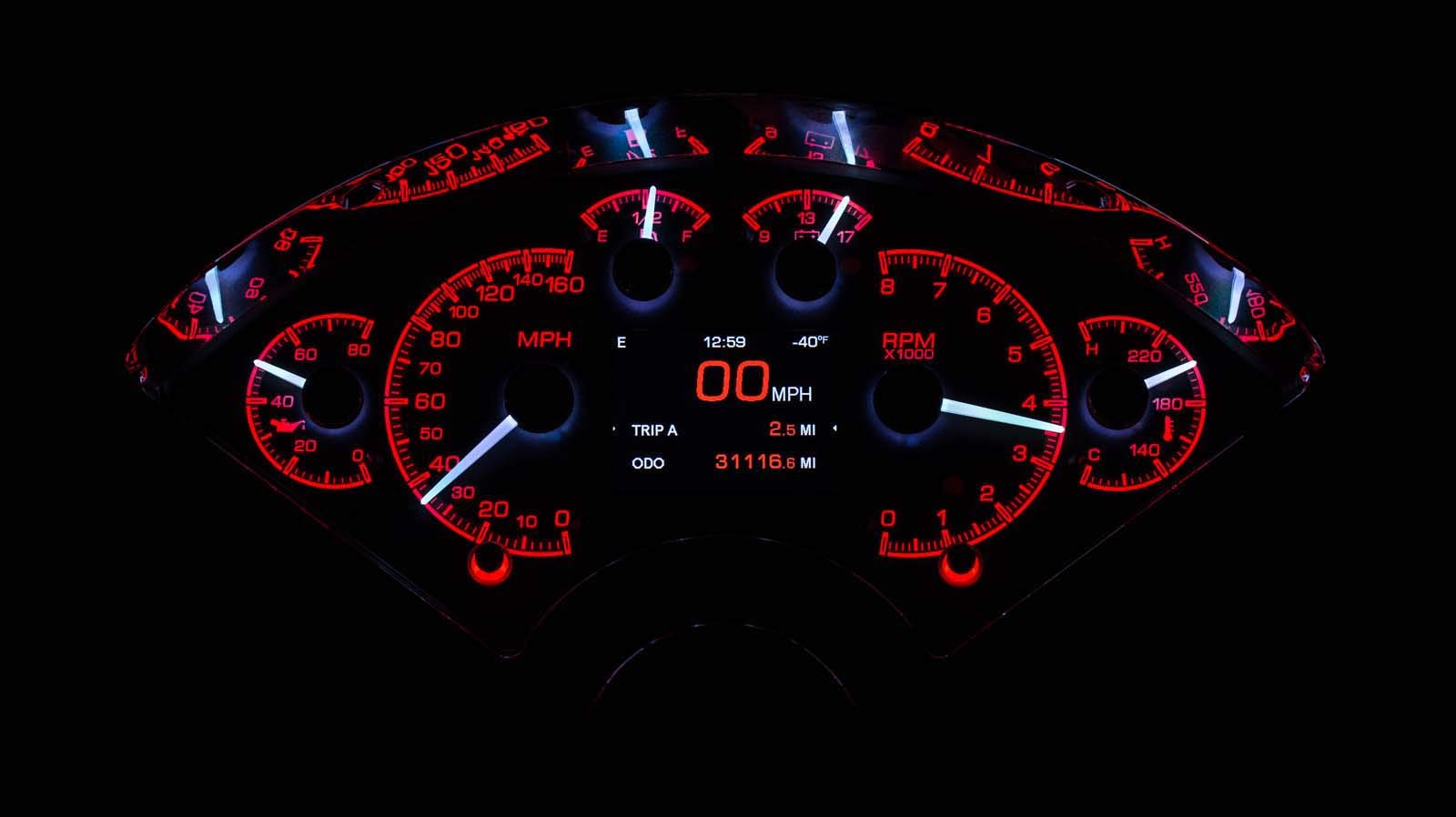

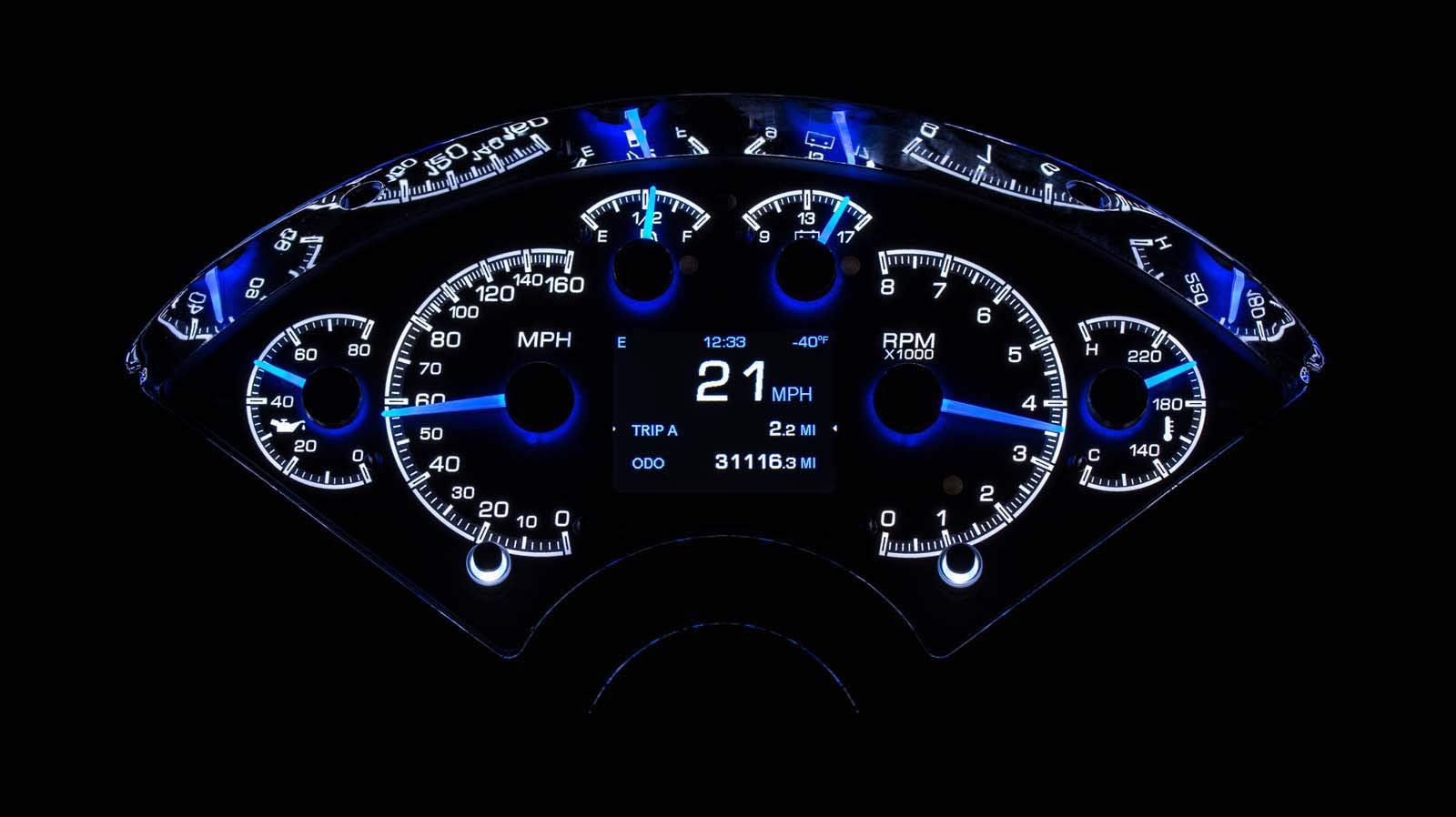

RGB Backlighting: Set your own lighting colors to match your paint or current mood.
Over 30 user-selectable display colors are available.
Select backlighting colors for the needles, digital display, and printed gauge readings independently, or choose from one of 12 preset lighting themes.
Analog Gauges: Speedometer - 0-160 MPH.
Split scale provides resolution of a 120MPH speedometer, with top end range of 160MPH.
Tachometer - 0-8000 RPM.
Oil Pressure - 0-80 psi.
Water Temperature - 100-260ºF.
Fuel Level - E, 1/4, 1/2, 3/4, F.
Voltmeter - 9-17 VDC.
