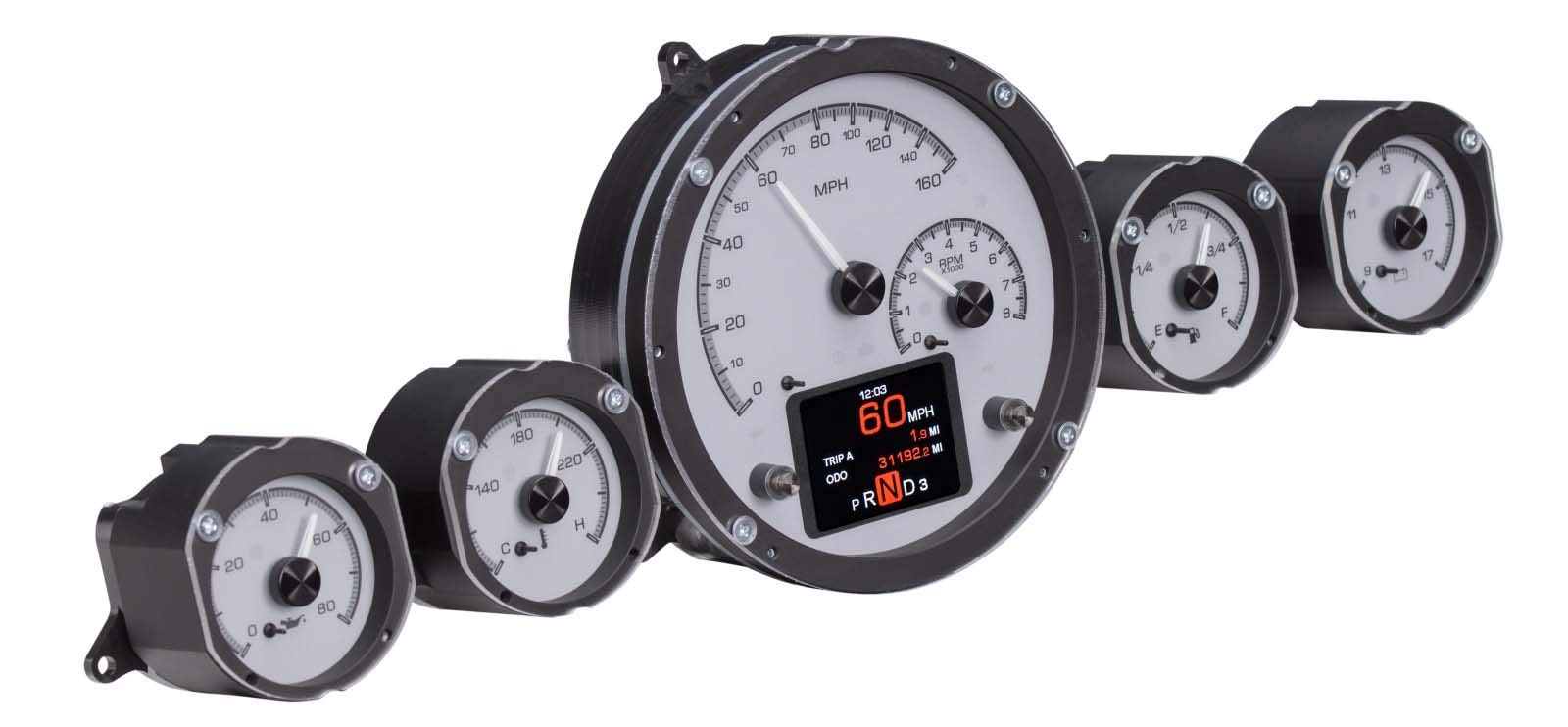

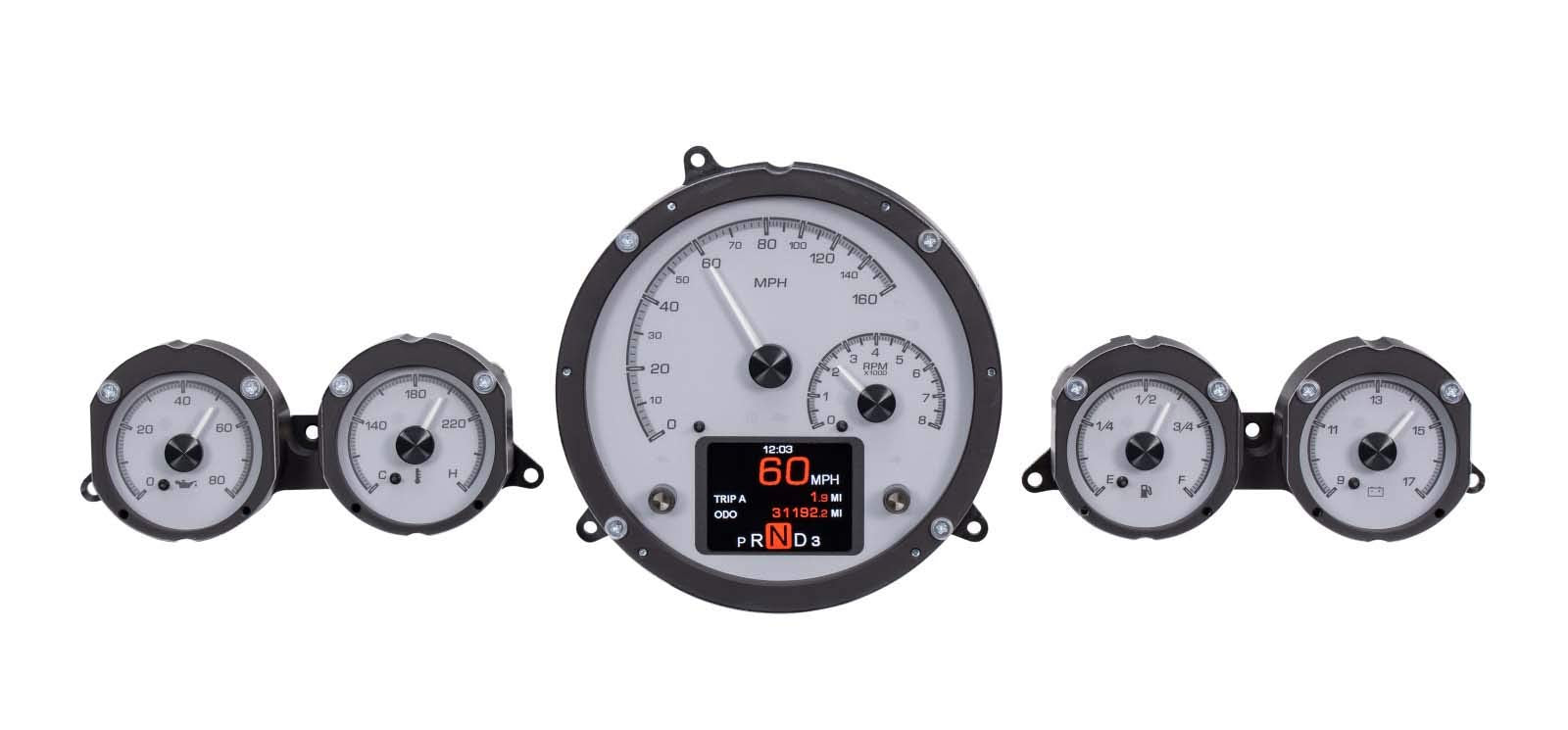

This package is designed to install directly into stock housings, whatever your original cast pods are in, and brings six analog sweep readouts plus a large, full color TFT message center (bezel is NOT included).

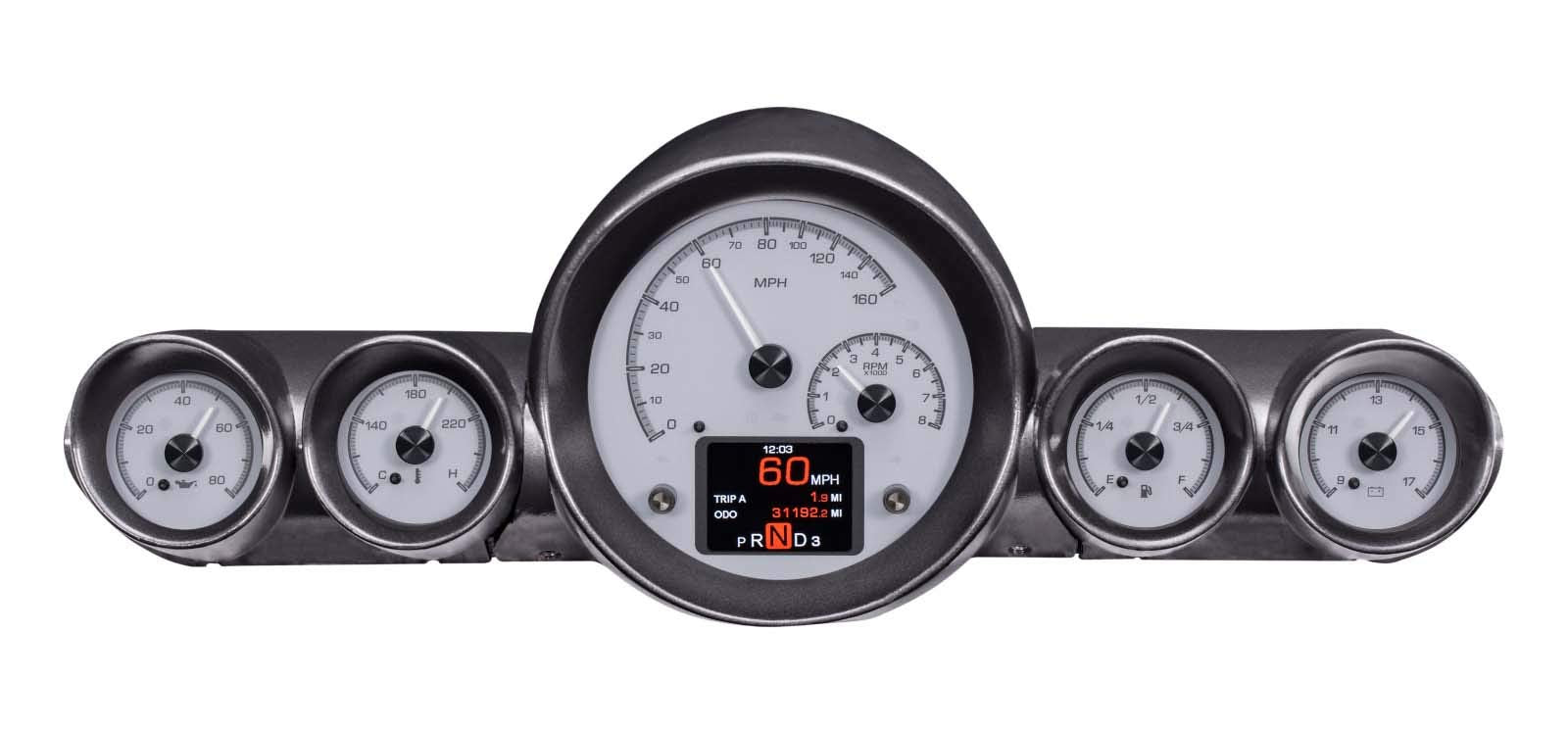

Shown for visual/presentation purposes, bezel is not included.
System uses OEM or reproduction style bezel.
Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers.
Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices.
Each needle hub is spun-aluminum black nickel plated to match the buttons.
All HDX instrument systems feature dead-faced (hidden) indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.

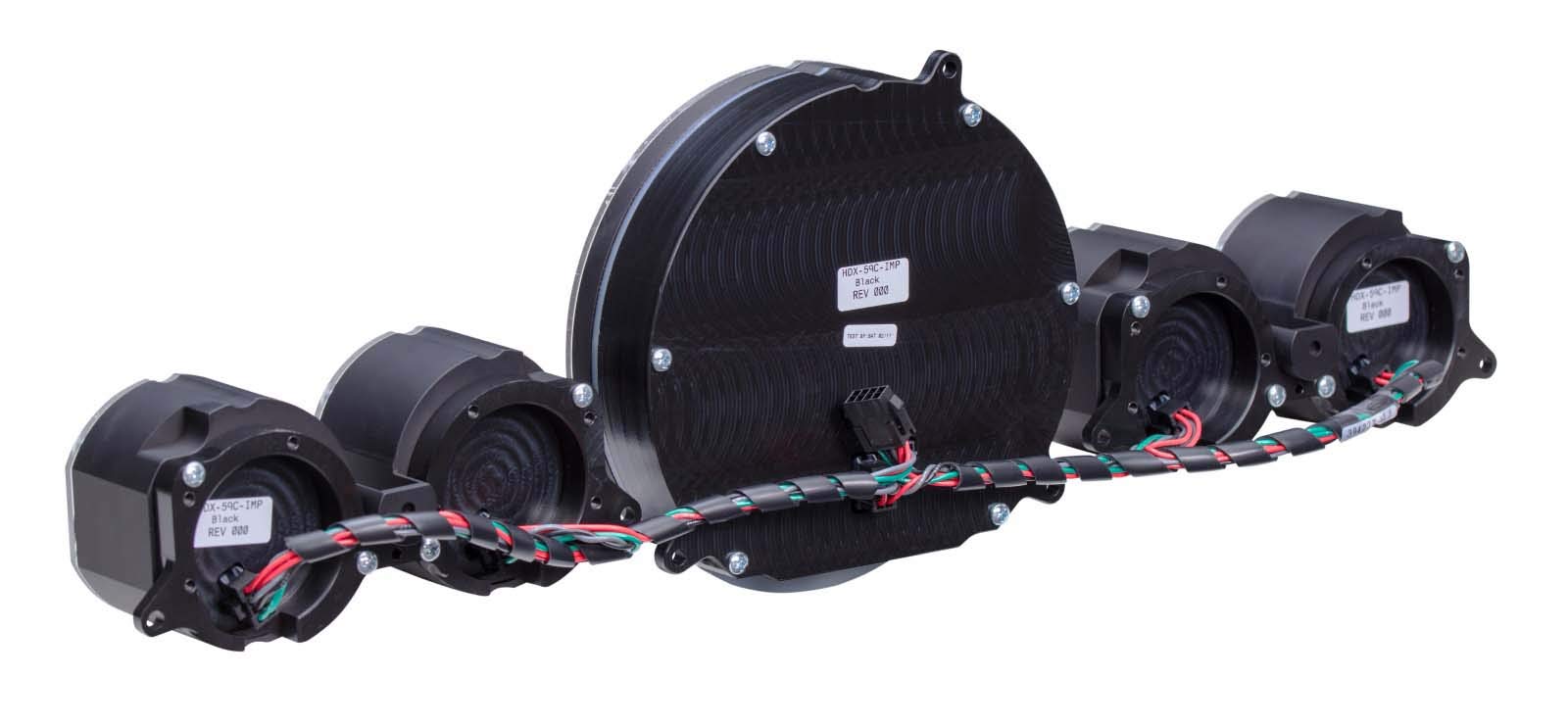

Installation is greatly simplified with our central control box, with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

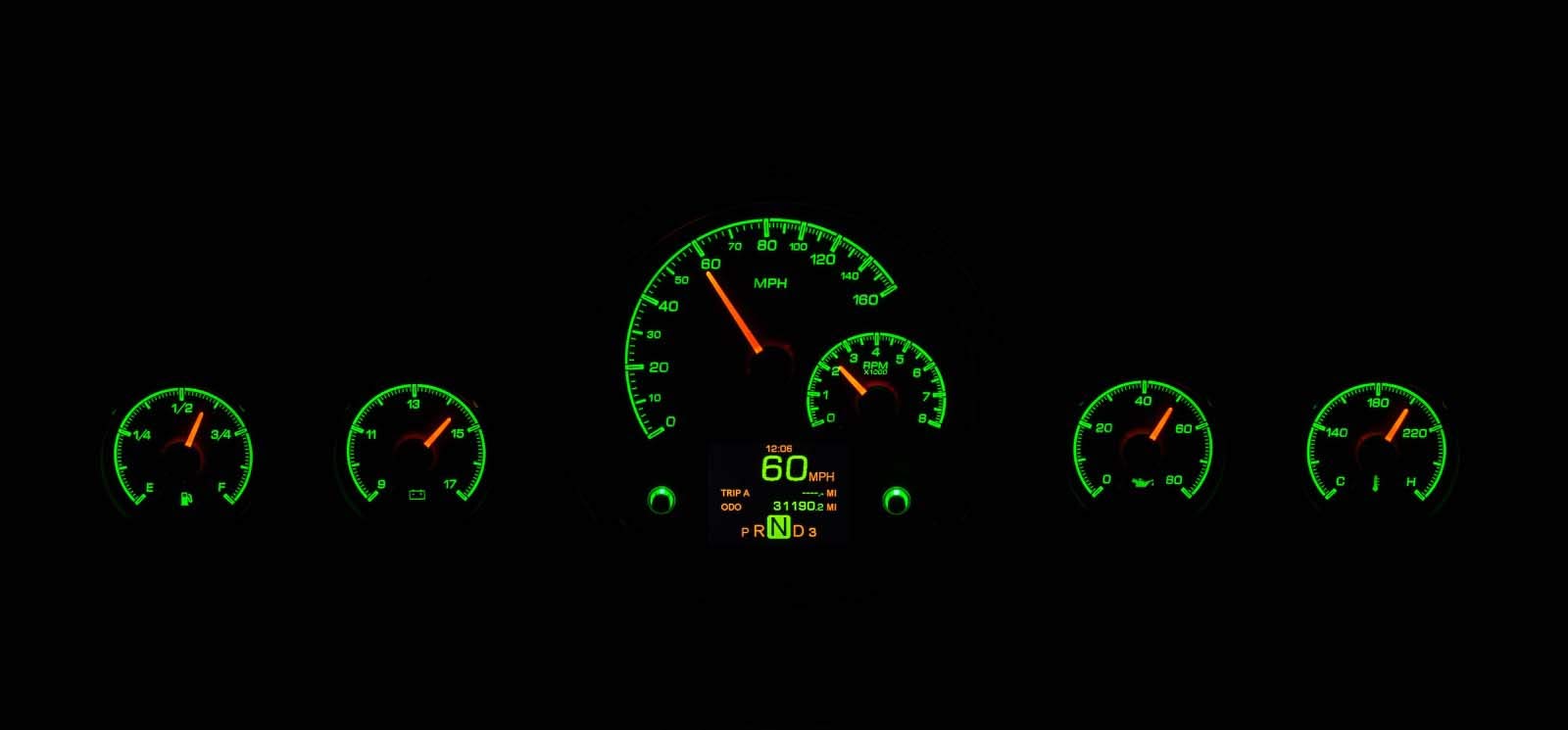

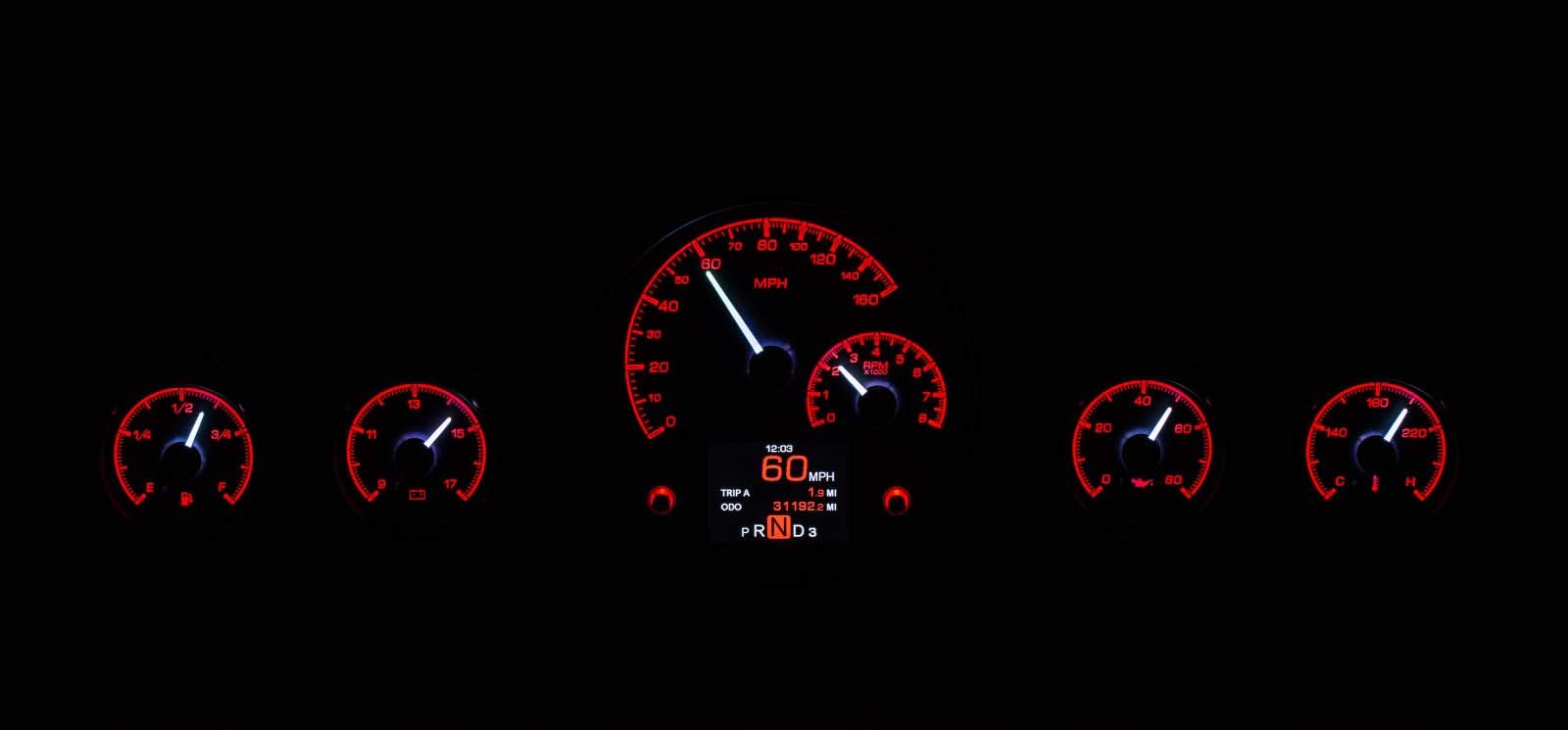

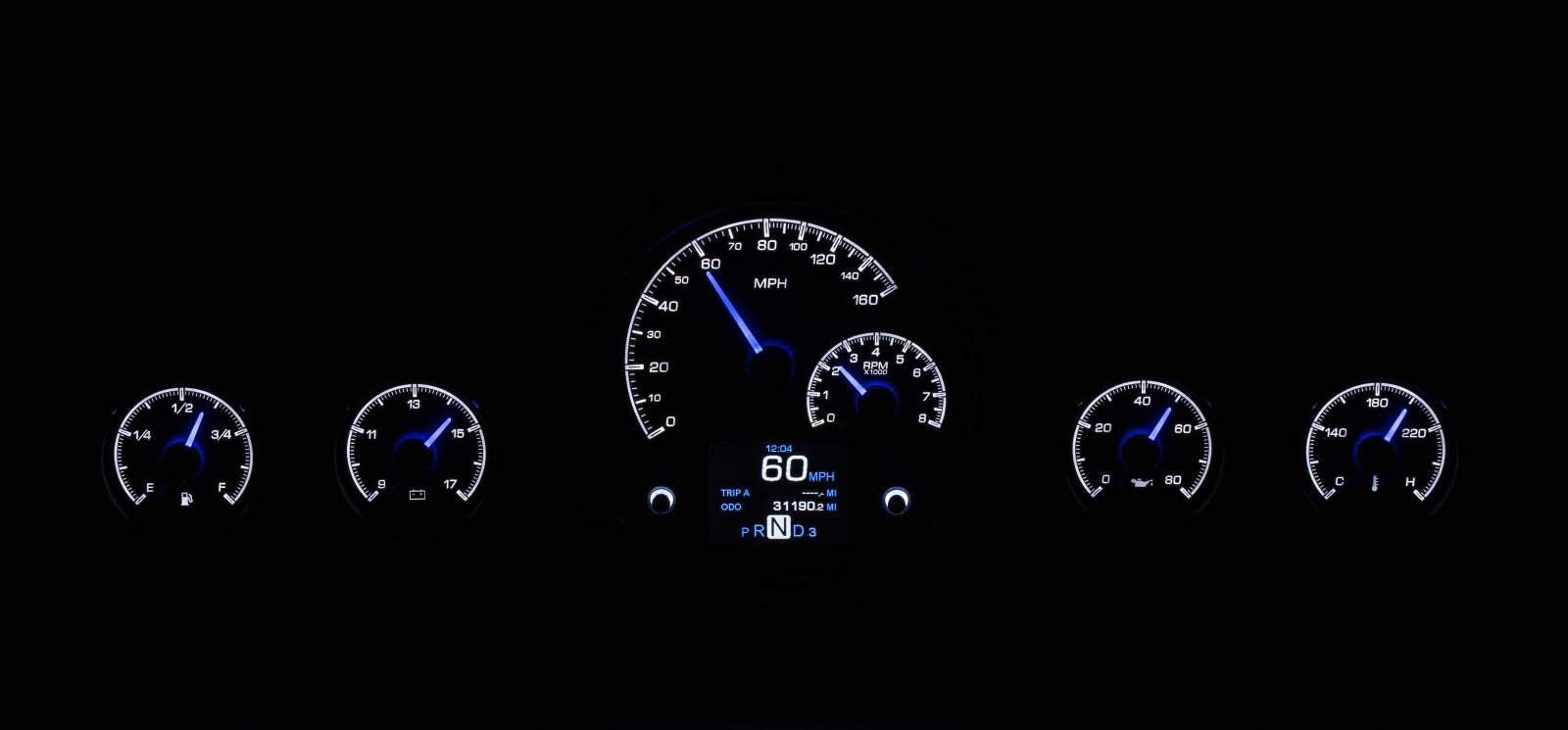

RGB Backlighting: Set your own lighting colors to match your paint or current mood.
Over 30 user-selectable display colors are available.
Select backlighting colors for the needles, digital display and printed gauge readings independently, or choose from one of 12 preset lighting themes.
Analog Gauges: Speedometer - 0-160 MPH.
Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.
Tachometer - 0-8000 RPM.
Oil Pressure - 0-80 psi.
Water Temperature - 100-260ºF.
Fuel Level - E, 1/4, 1/2, 3/4, F.
Voltmeter - 9-17 VDC.
Digital Message Centers: Odometer (one time user settable, million mile), Dual Trip Meter, Clock, Turn Signals (Left/Right), High Beam, Check Engine...
