VHX-1060 6 gauge round kit.
Includes: Speedometer, Tachometer, Oil Pressure, Water Temperature, Fuel Level, Volts.
Dimensions: Speedometer and Tachometer: Cutout 3-3/8".
Oil Pressure, Water Temperature, Fuel Level, Volts: Cutout 2-1/16".
Not available as individual gauges.
These 3-3/8” and 2-1/16” housings are standard sizes in the industry, so they fit many aftermarket panels easily, although offering all of the integration and flexibility of their VHX systems!
The satellite gauges (oil pressure, water temp, voltmeter, and fuel level) connect directly to the speedometer with included telephone style cables, making installation simple.

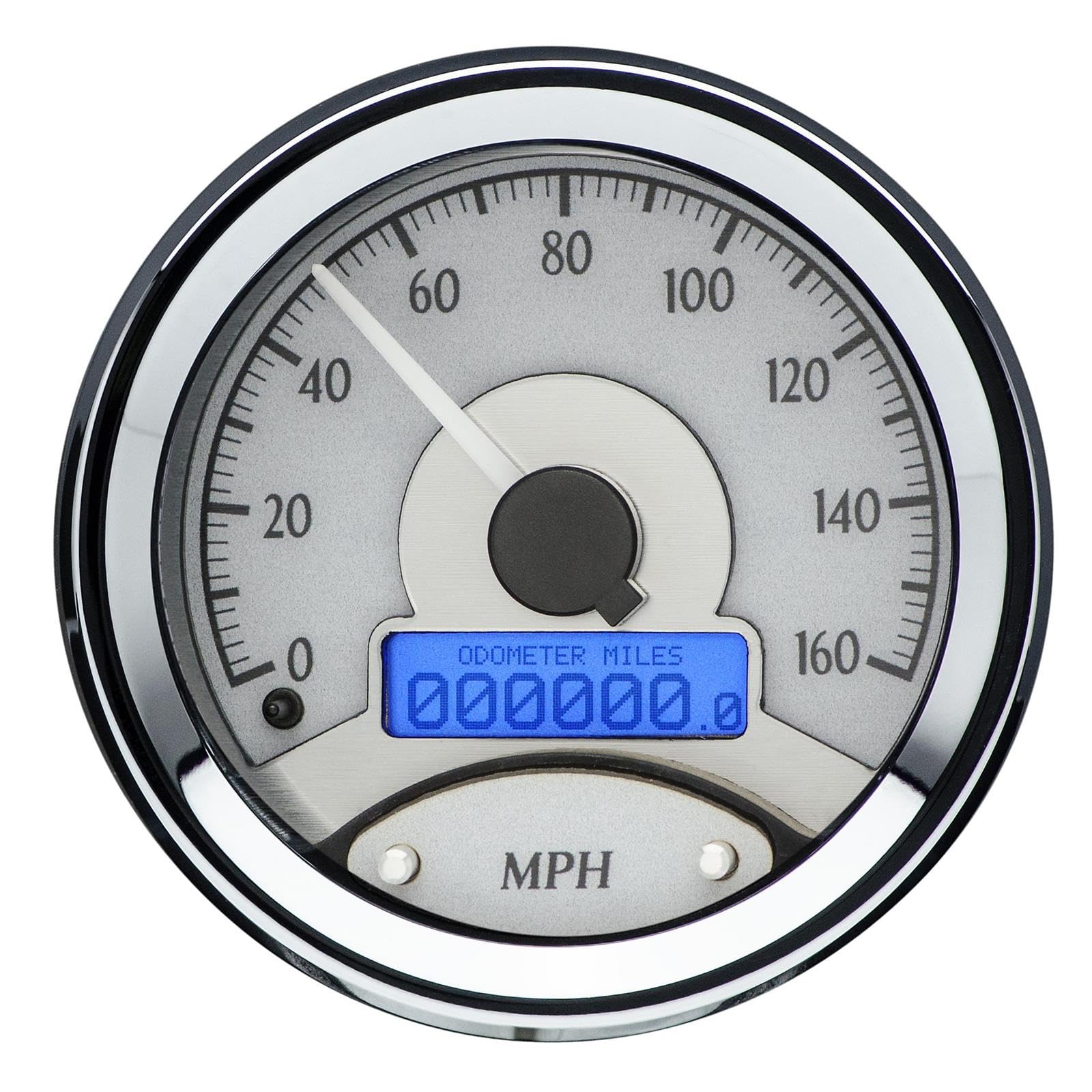

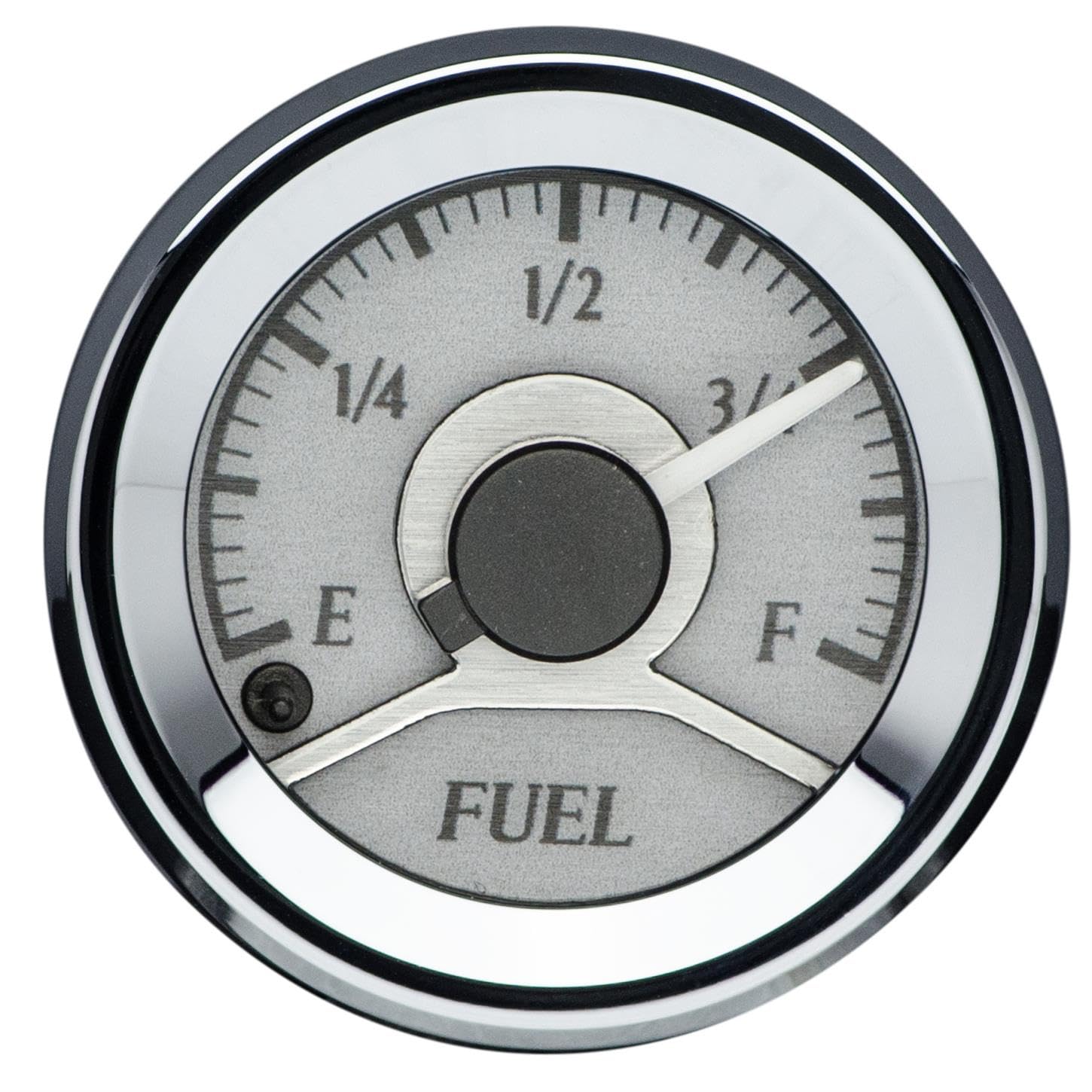

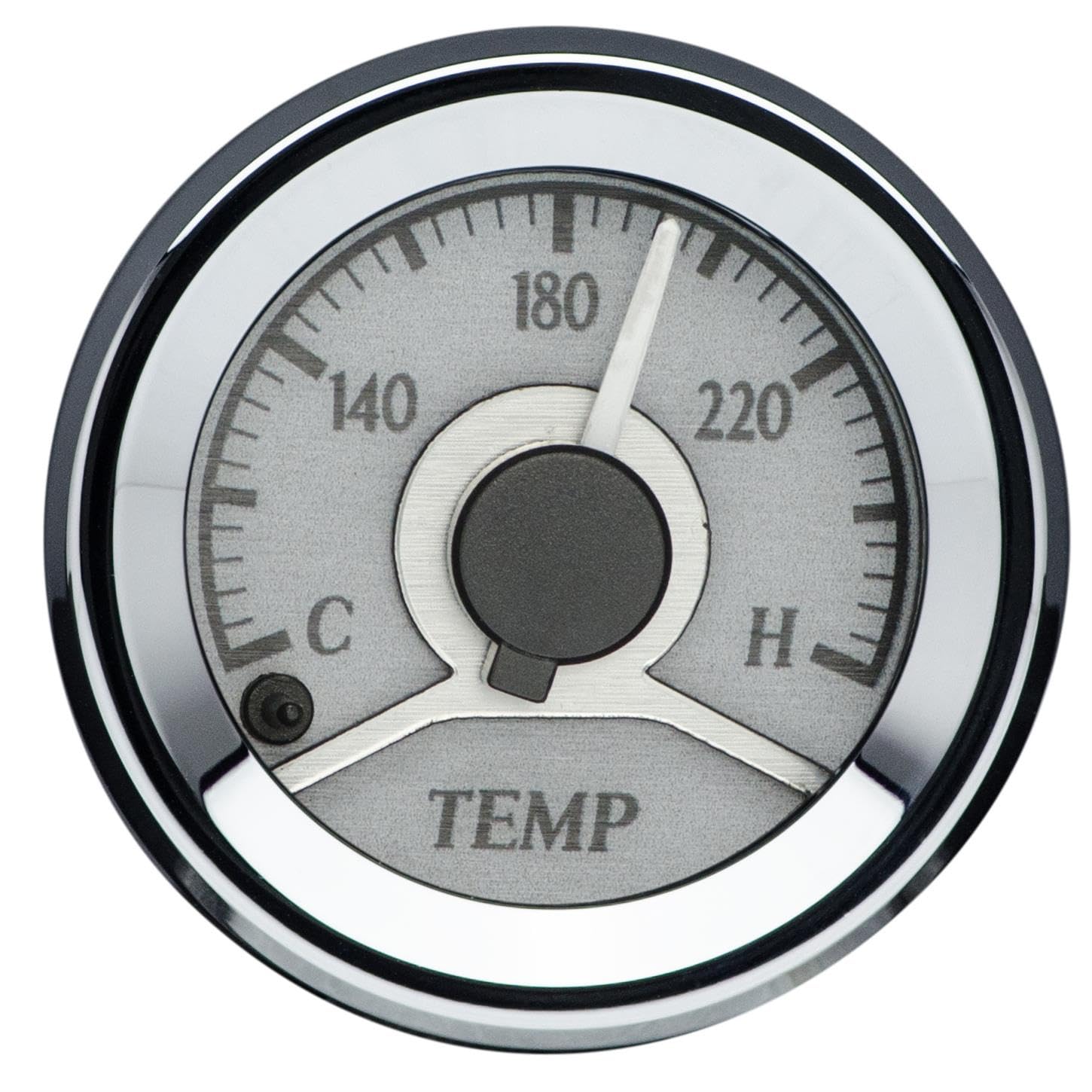

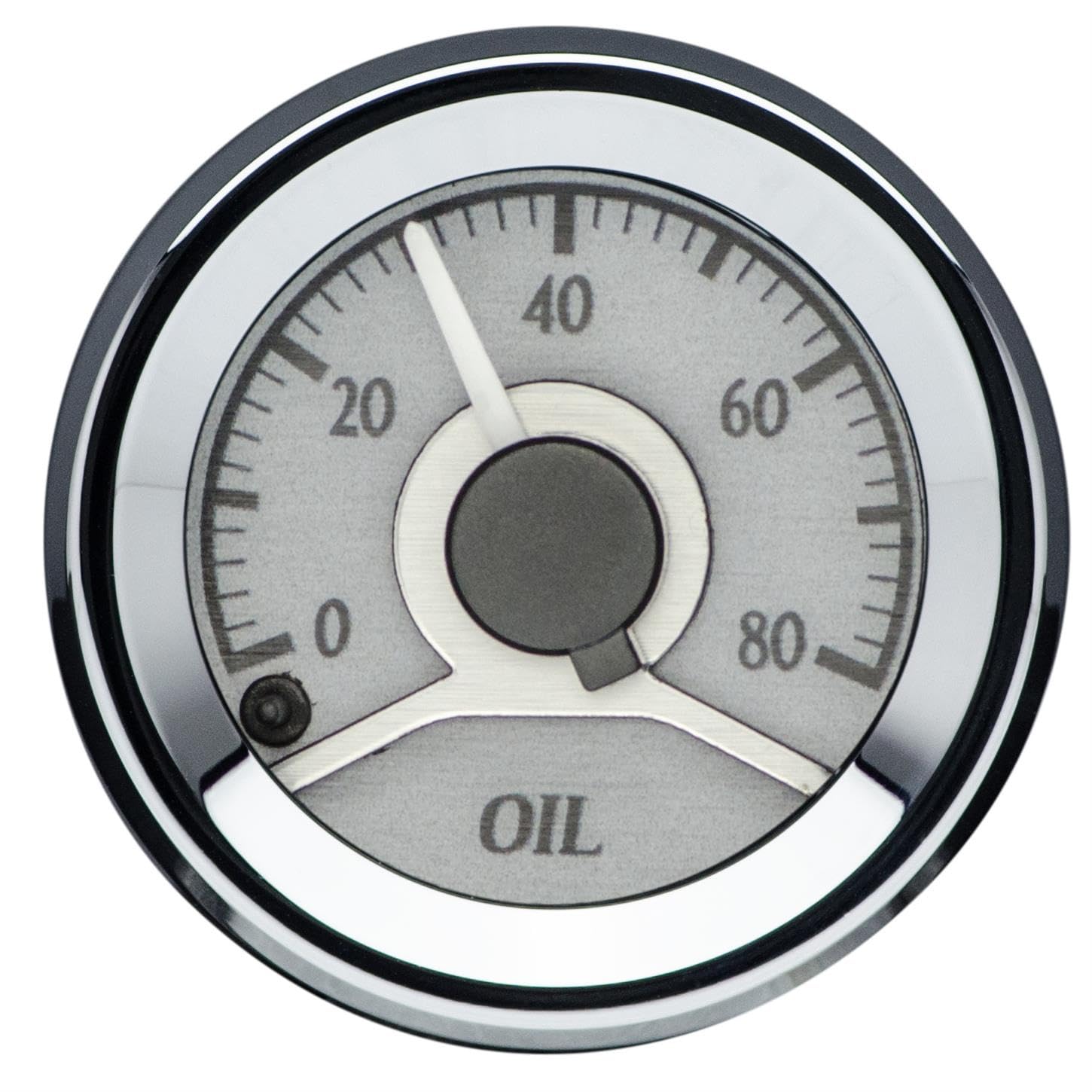

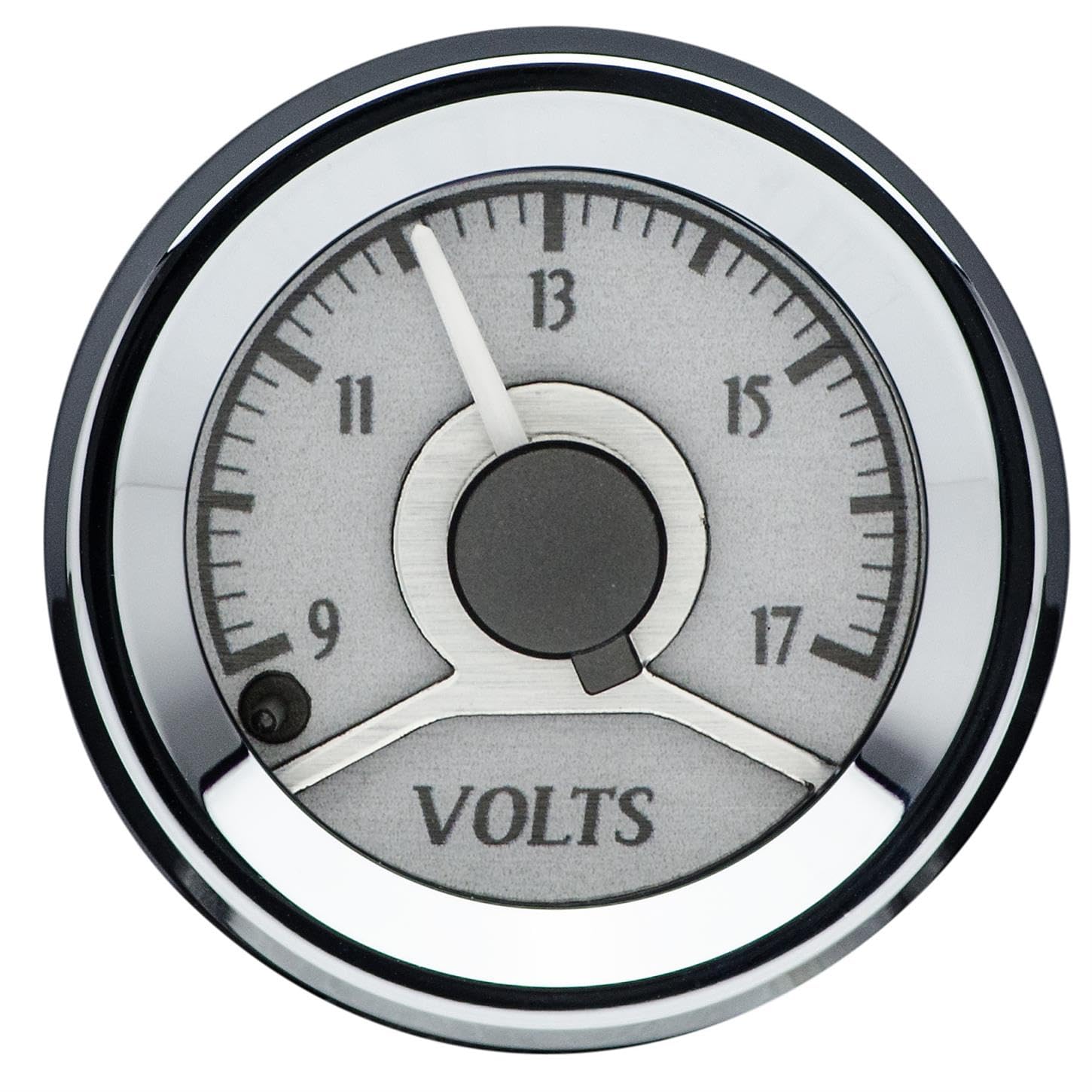

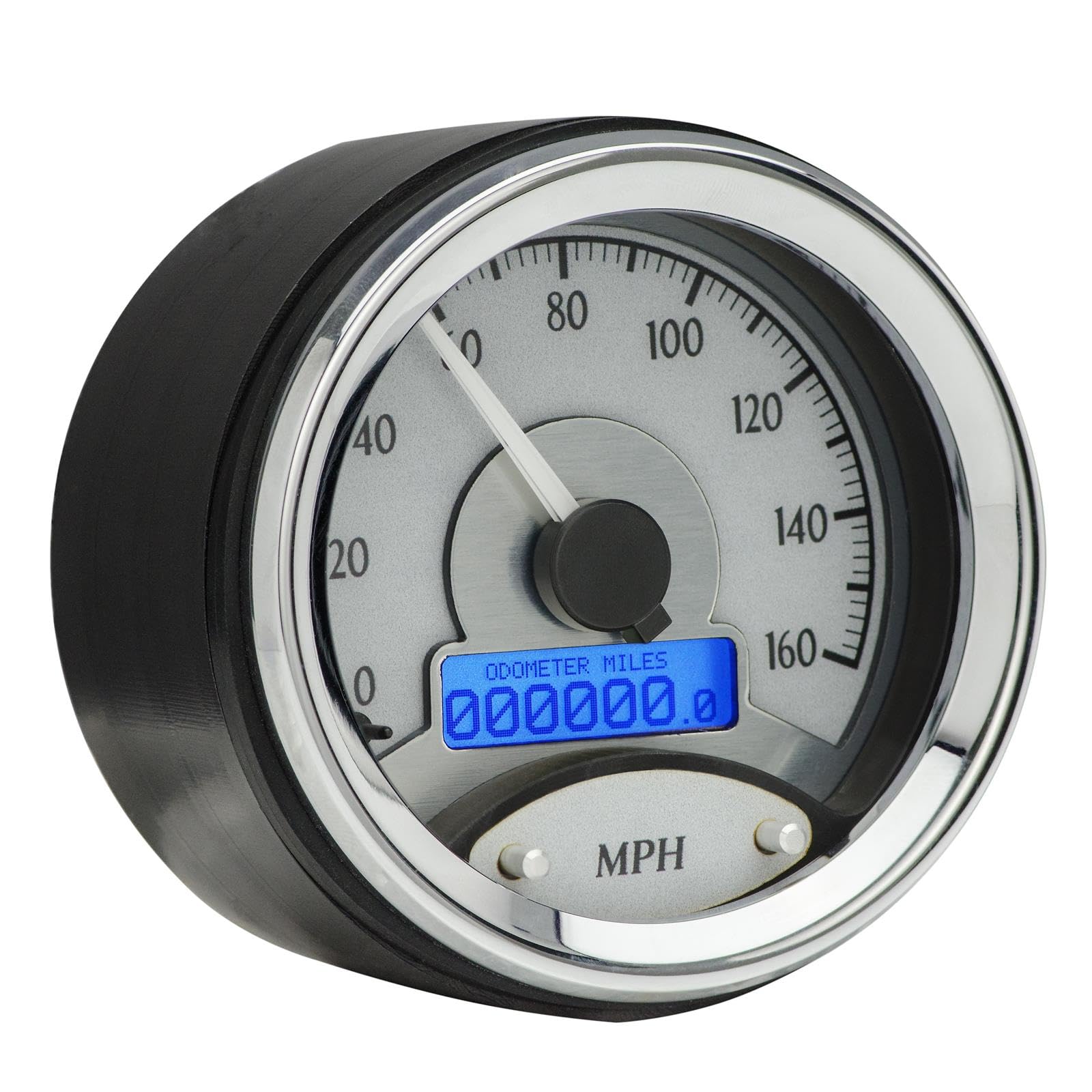

Analog Gauges: Speedometer - 0-160 MPH, Tachometer - 0-8000 RPM, Oil Pressure - 0-80 psi, Water Temperature - 100-260ºF, Fuel Level - E, 1/4, 1/2, 3/4, F, Voltmeter - 9-17 VDC.
Digital Message Centers: Standard Displays: Odometer (One time user settable, Million Mile), Dual (A/B) Trip Meter (0- 9,999.9), Clock (12 hour).
Performance Meters: 0-60 MPH Timer (0- 100 kmh), 1/4 mile time, 1/4 mile end speed (trap speed), High speed recall, High RPM recall.
Built-In Indicators: Turn Signals (Left/ Right), High Beam, Check Engine, Parking Brake, Cruise Control (On/ On & Engaged when vehicle is equipped), Gear Position (Optional GSS-3000 sensor required, sold separately), 4 x 4 (When vehicle is equipped), Wait to Start (When vehicle is equipped).
