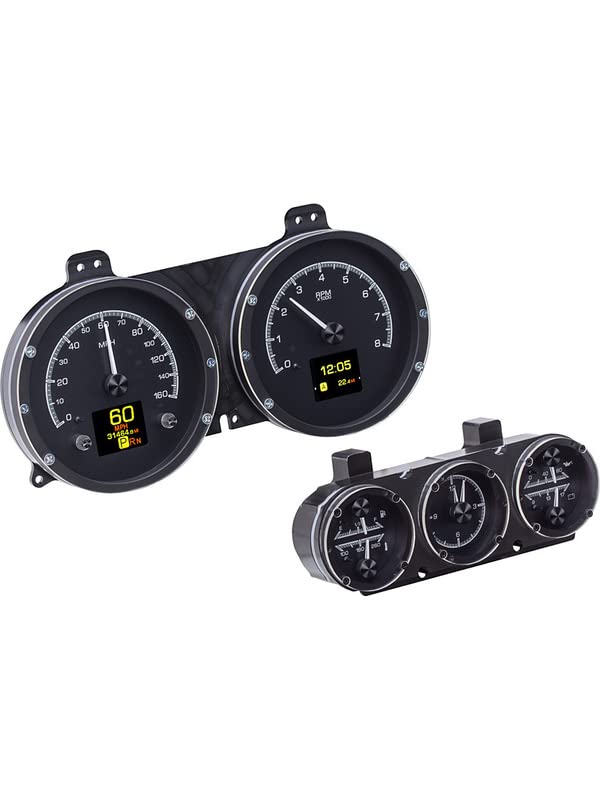

This kit fits directly into your stock dash and console instrument housings, bringing two TFT message centers plus an analog clock to the party.
This complete package cannot be split up.
Dash and console bezels are not supplied (bezel is NOT included).
Bezel is not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers.
Calibration and personal settings are manipulated with the built-in capacitive-touch buttons or the available Bluetooth app for Apple and Android devices.
Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced (hidden) indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.
With the central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied solid state sending units connecting cleanly to their respective terminal.
RGB backlighting allows you to set your own lighting colors to match your paint or current mood.
Over 30 user-selectable display colors are available.
Select backlighting colors for the needles, digital display, and printed gauge readings independently, or choose from one of 12 preset lighting themes.
