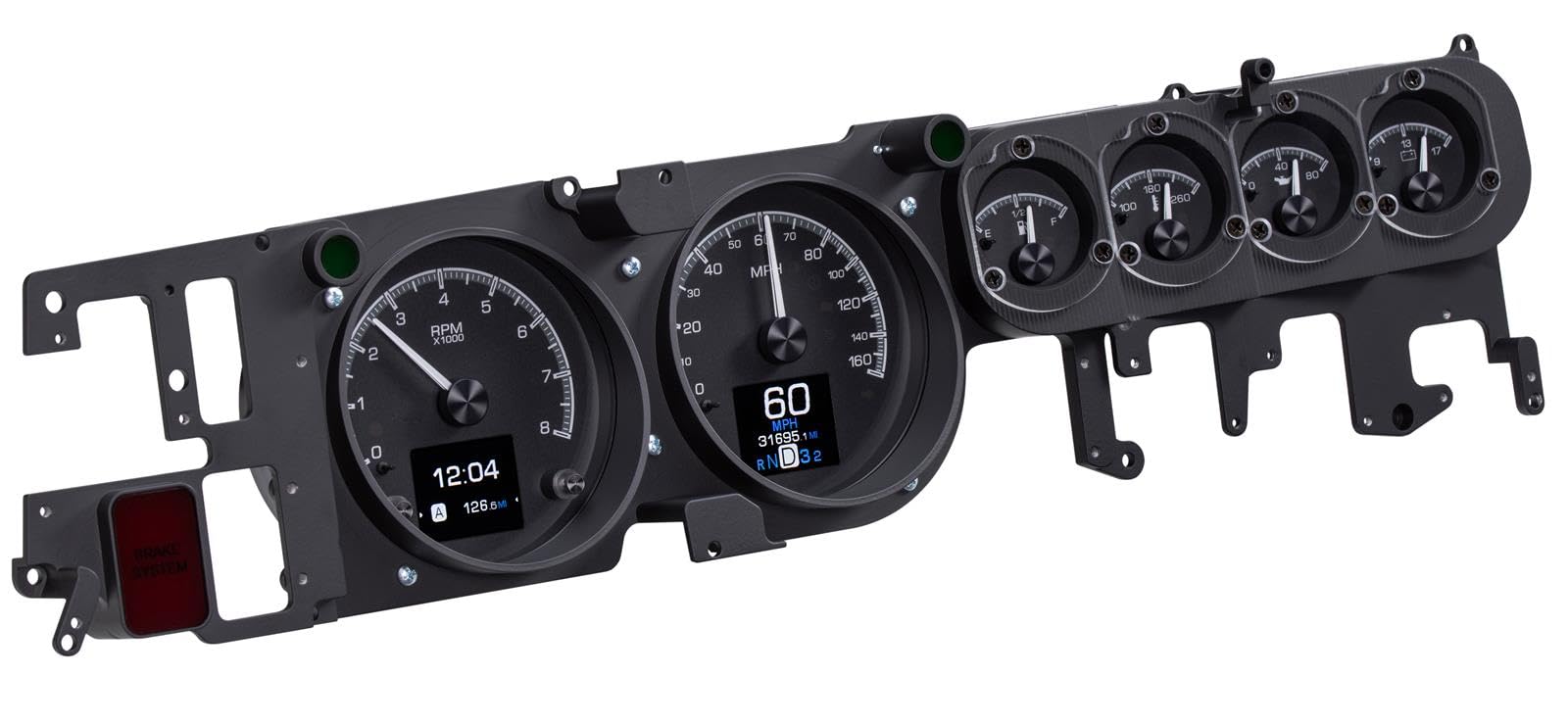

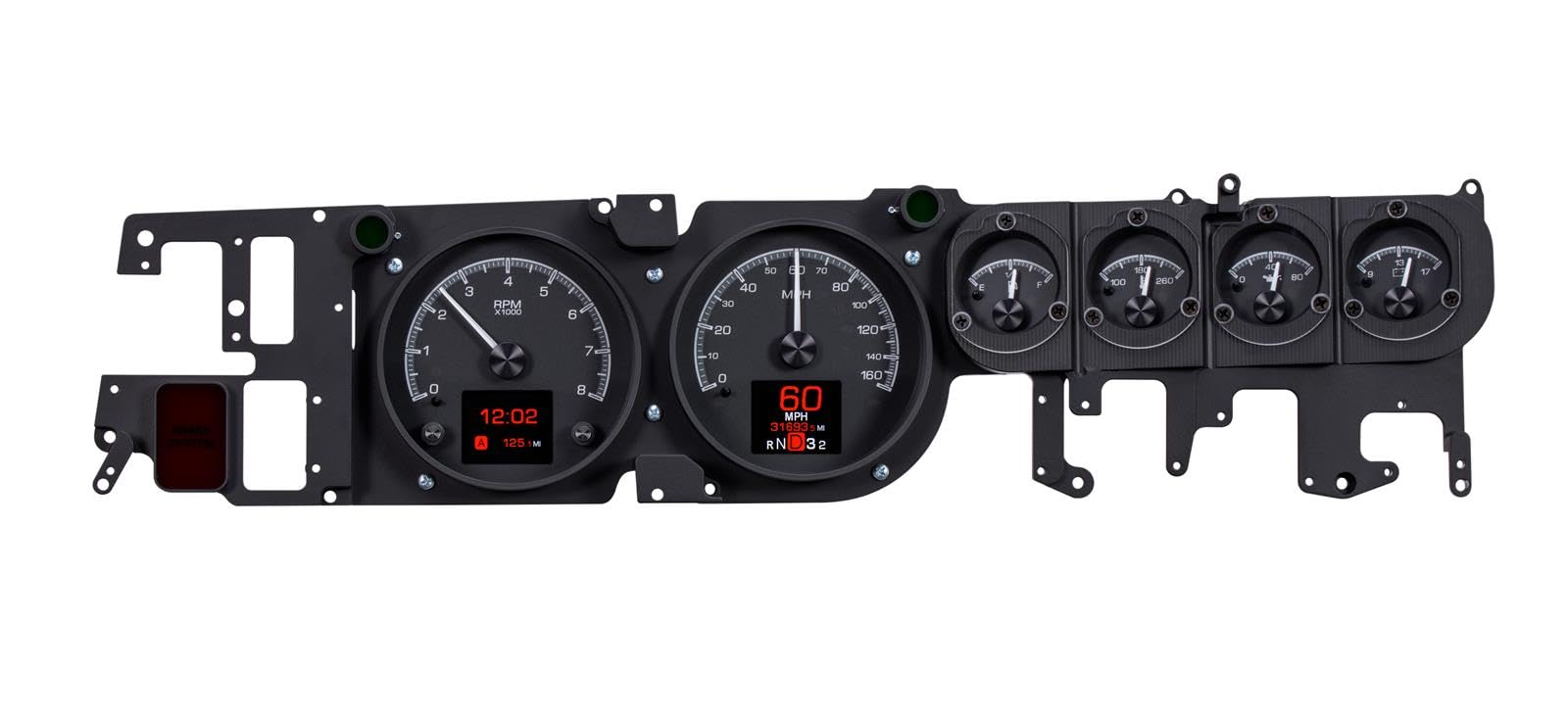

This instrument system is a direct-fit upgrade for Chargers with the rallye dash, as well as ’68-70 Super Bee, ’69-70 Coronet R/T, and the 1970 GTX.
The housing made of billet aluminum accommodates your original switches and front bezel (not supplied) for a truly bolt-in upgrade.

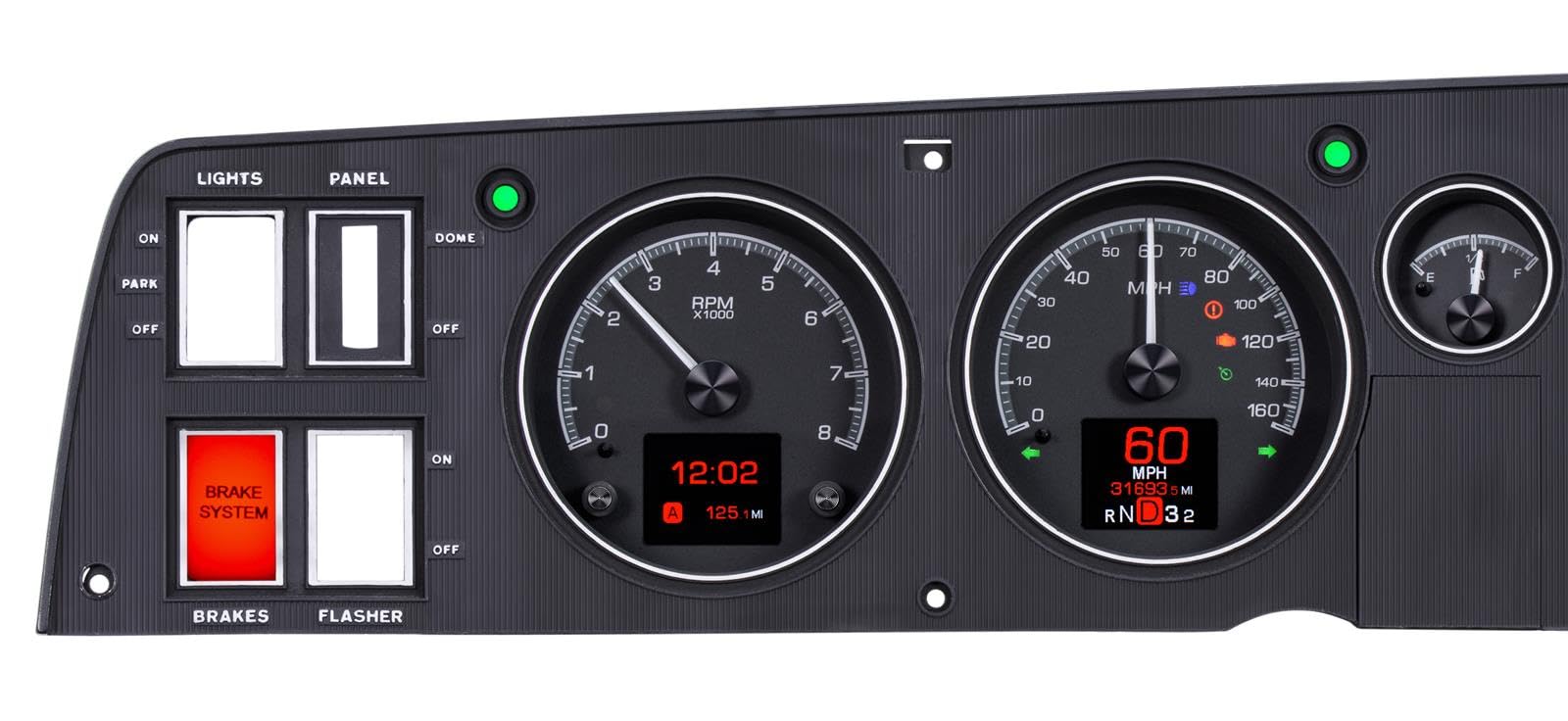

Bezel is NOT included, shown for demonstration/visual purposes only.
The system uses OEM or reproduction style bezel.
This listing is for the BLACK ALLOY version (also available with SILVER ALLOY instead, sold in a separate listing).
Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers.
Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons or the Bluetooth app for Apple and Android devices.
Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced (hidden) indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.
With the central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.
RGB Backlighting: Set your own lighting colors to match your paint or current mood.
Over 30 user-selectable display colors are available.
Select backlighting colors for the needles, digital display, and printed gauge readings independently, or choose from one of 12 preset lighting themes.
Analog Gauges: Speedometer - 0-160 MPH.
Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.
Tachometer - 0-8000 RPM.
Oil Pressure - 0-80 psi.
Water Temperature - 100-260ºF.
Fuel Level - E, 1/4, 1/2, 3/4, F.
Voltmeter - 9-17 VDC.
