Compatible with 1978-88 Oldsmobile Cutlass, this system fits both rectangle and round-gauge style clusters in your 1978-87 Cutlass.
The ultimate upgrade, this direct fit system features a full color TFT message center that can be customized for specific data, while the six analog gauge readings provide information at a glance.
Requires use of stock cluster and bezel, which is not included and shown for visual purposes only.
The system uses OEM or reproduction style bezels.
Each HDX system allows independent illumination color selection for the gauge readings and needles, as well as the message centers.
Calibration and personal settings are adjusted with built-in capacitive-touch buttons or the Bluetooth app for Apple and Android devices.
Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.

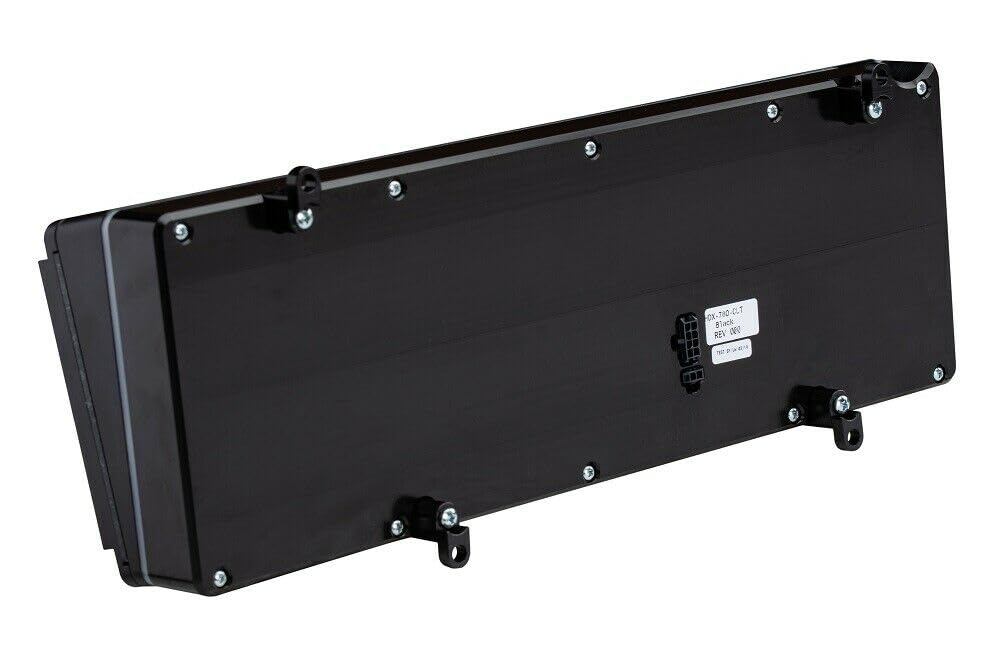

Installation is simplified with a central control box, vehicle-harness sourced signals, and solid state sending units connecting cleanly to their respective terminal.

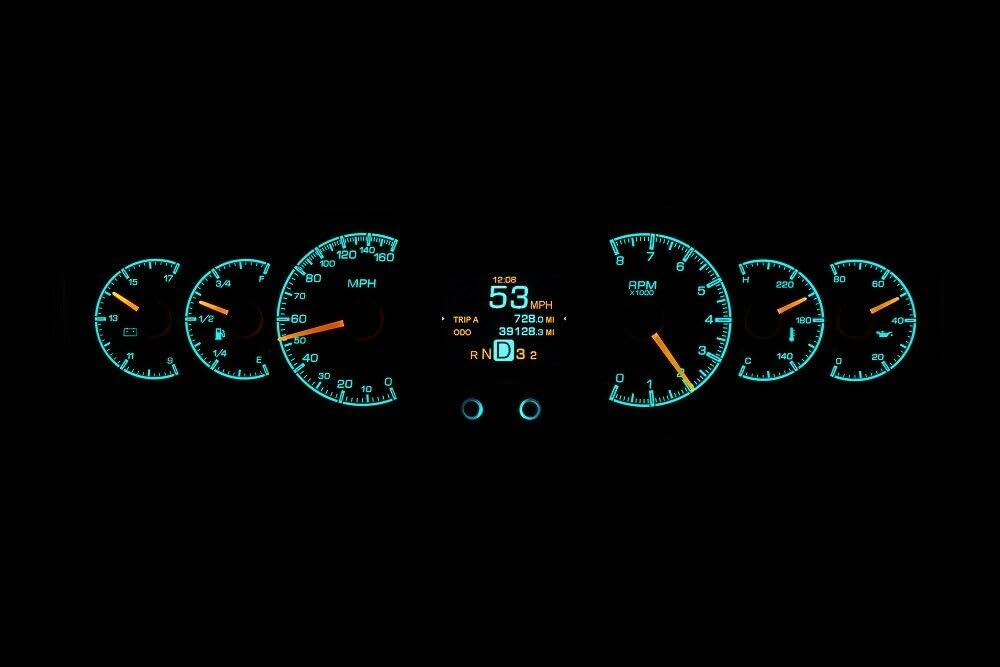

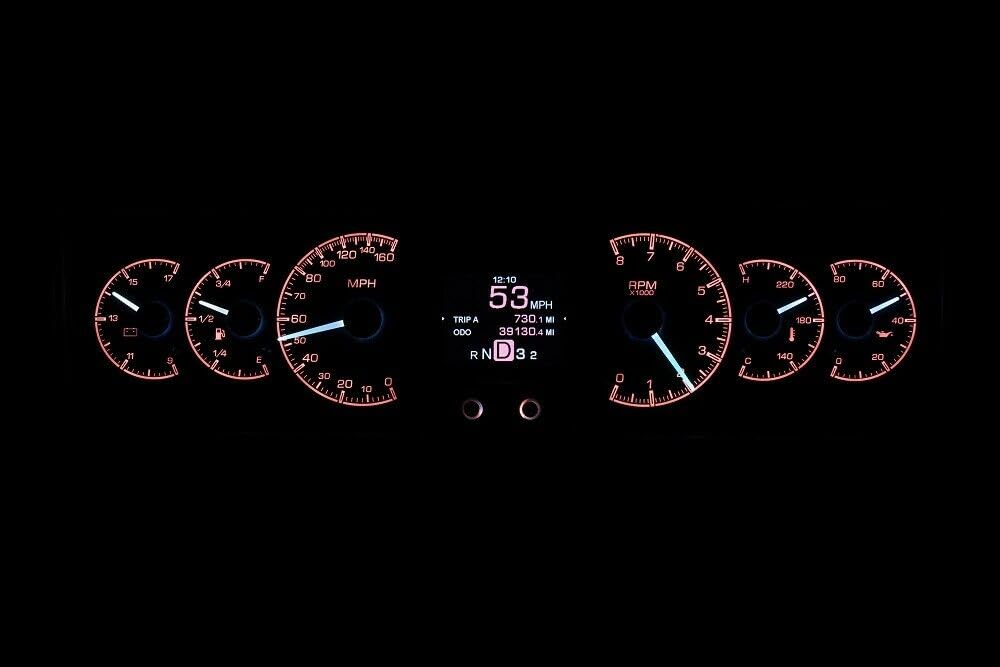

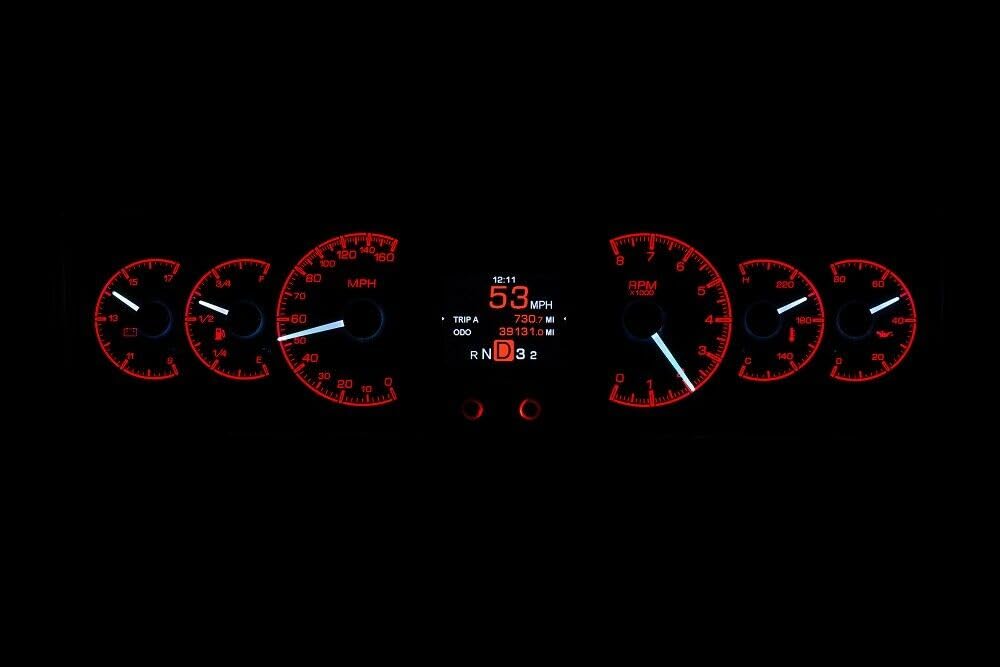

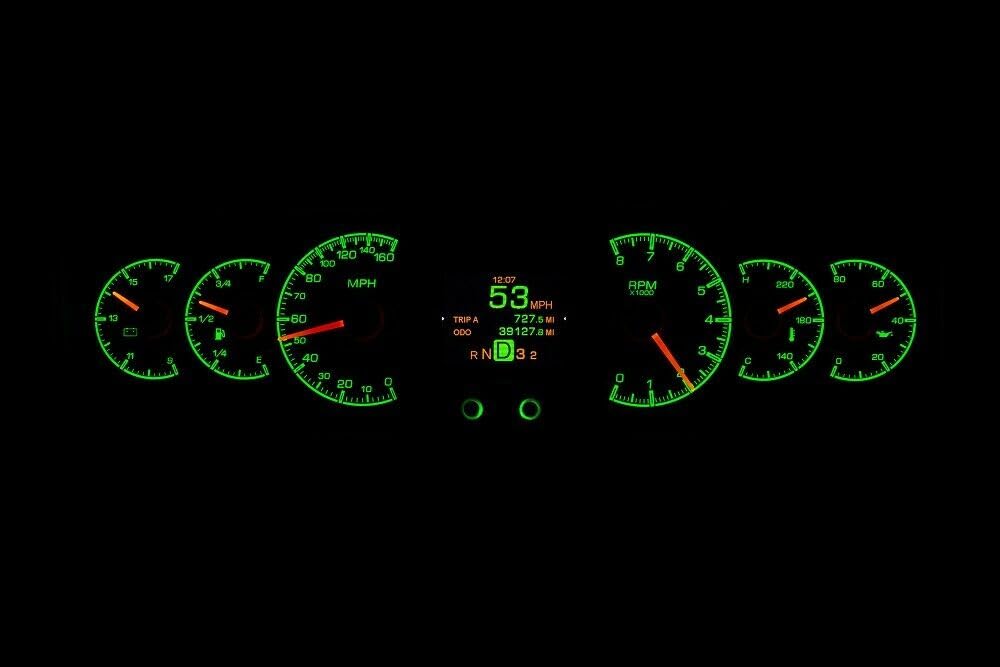

RGB backlighting allows for custom lighting colors to match your paint or mood, with over 30 user-selectable display colors available.
Backlighting colors for the needles, digital display, and printed gauge readings can be selected independently or from one of 12 preset lighting themes.

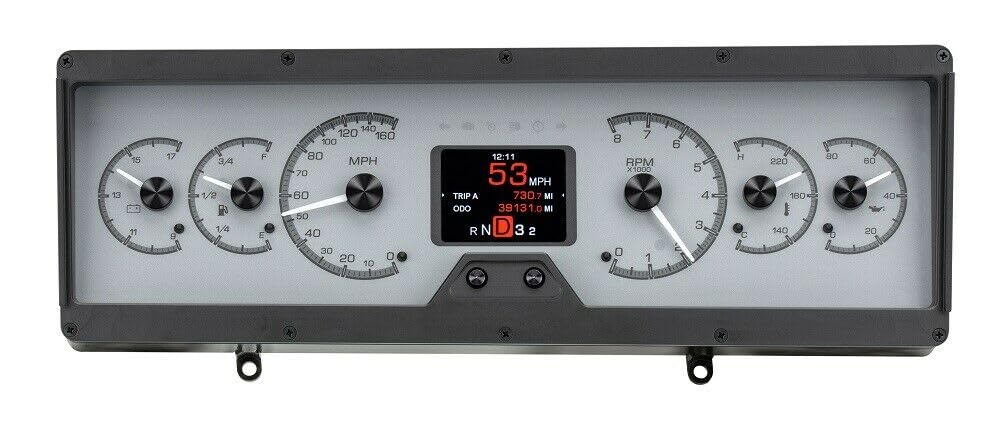

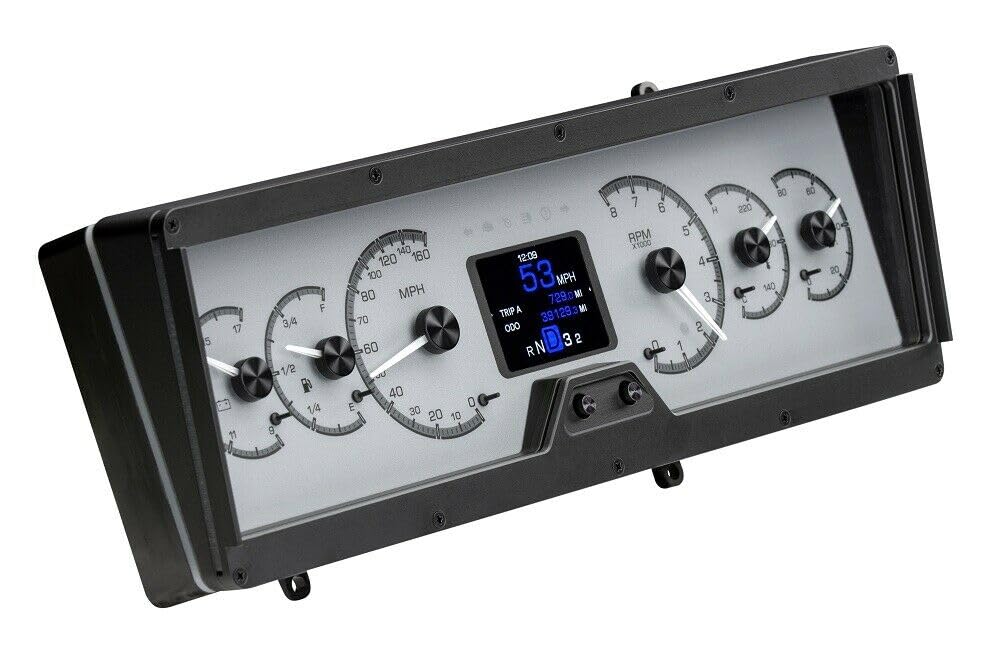

Analog gauges include: Speedometer - 0-160 MPH, Tachometer - 0-8000 RPM, Oil Pressure - 0-80 psi, Water Temperature - 100-260ºF, Voltmeter - 9-17 VDC, Fuel Level - E, 1/4, 1/2, 3/4, F.
Digital message centers display odometer, dual (A/B) trip meter, and 12hr clock.
