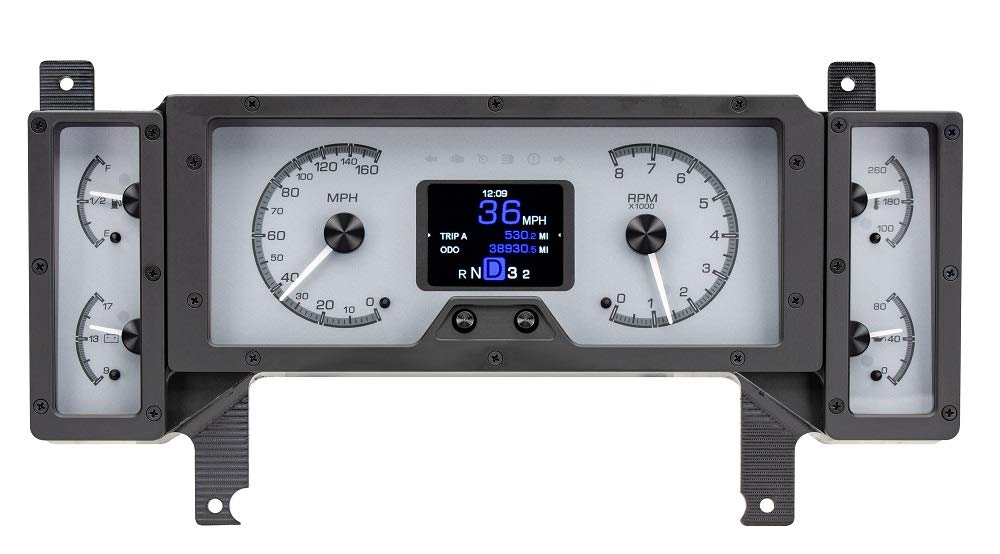

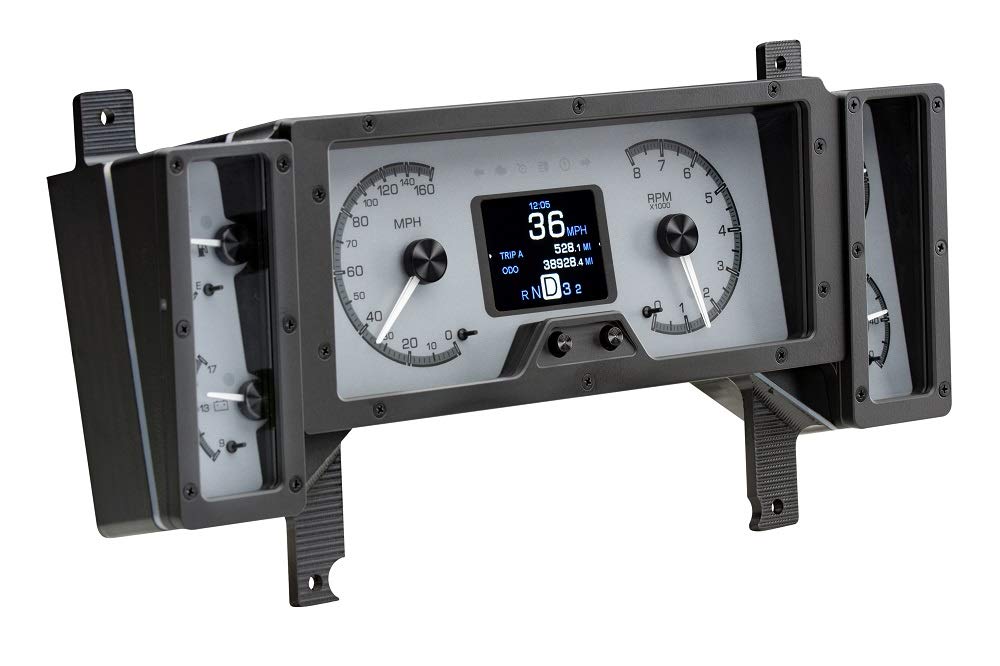

Compatible with 1984-87 Buick Regal and Grand National, the system features six analog instruments surrounding a full color TFT message center display.
The display can be adjusted to show what you need; boost, transmission temperature, fuel pressure, and more can be added at a glance.
For the Grand National, the Boost gauge is shown in the digital message centers.
* Requires the factory bezel, which is not included.
**SEN-09-7 adds Boost info to the message center (sold separately).
***Grand National ignition systems may need the SGI-17 to support the tachometer connection (sold separately).
For Grand National or other applications needing a boost pressure display, add part number SEN-09-7 (sold separately).

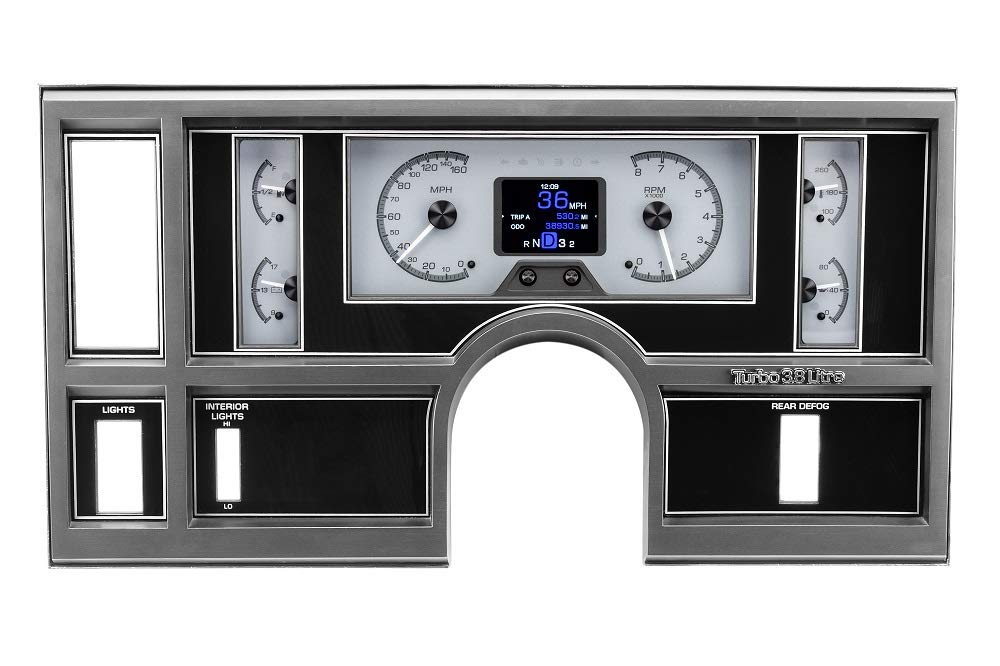

The bezel is NOT included and is shown for visual/demonstration purposes only.
The system uses OEM or reproduction style bezels.
Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, along with the message centers.
Calibration and personal settings are adjusted with the built-in capacitive-touch buttons or the Bluetooth app for Apple and Android devices.
Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced (hidden) indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge.
With the central control box, installation is simplified with vehicle-harness sourced signals and supplied solid state sending units connecting cleanly to their respective terminal.

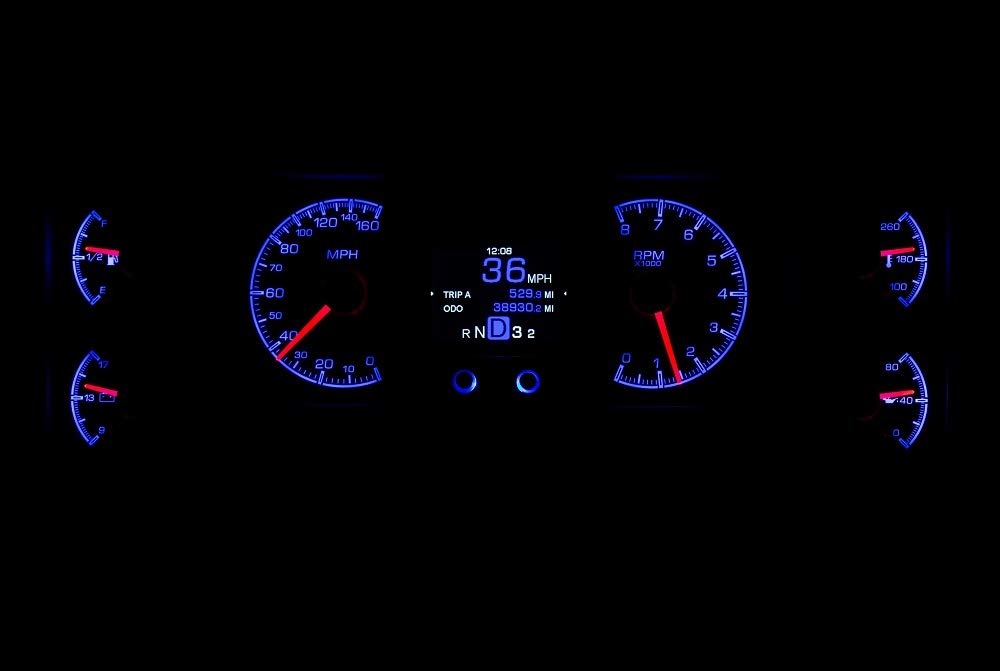

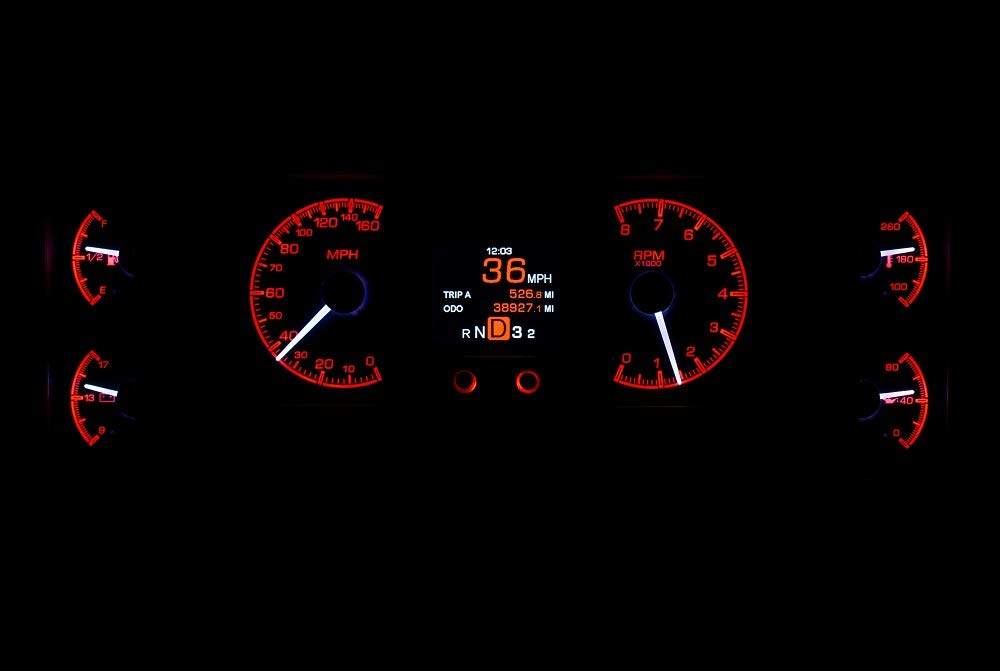

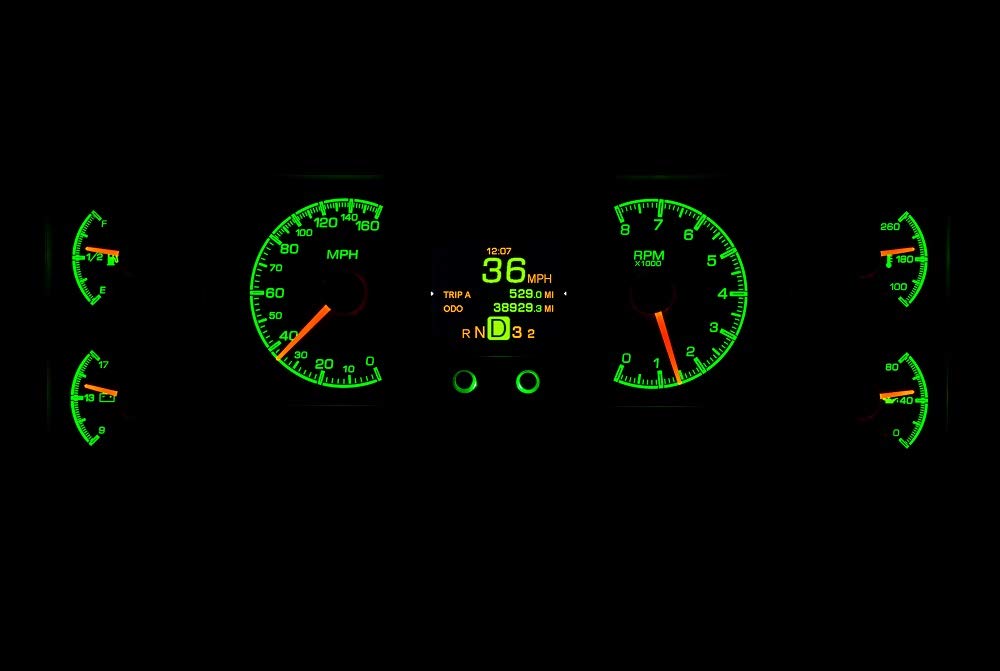

RGB Backlighting allows you to set your own lighting colors to match your paint or mood.
Over 30 user-selectable display colors are available.
You can select backlighting colors for the needles, digital display, and printed gauge readings independently, or choose from one of 12 preset lighting themes.
Analog Gauges include: Speedometer - 0-160 MPH, Tachometer - 0-8000 RPM, Oil Pressure - 0-80 psi, Water Temperature - 100-260ºF, Voltmeter - 9-17 VDC, Fuel Level - E, 1/4, 1/2, 3/4, F.
