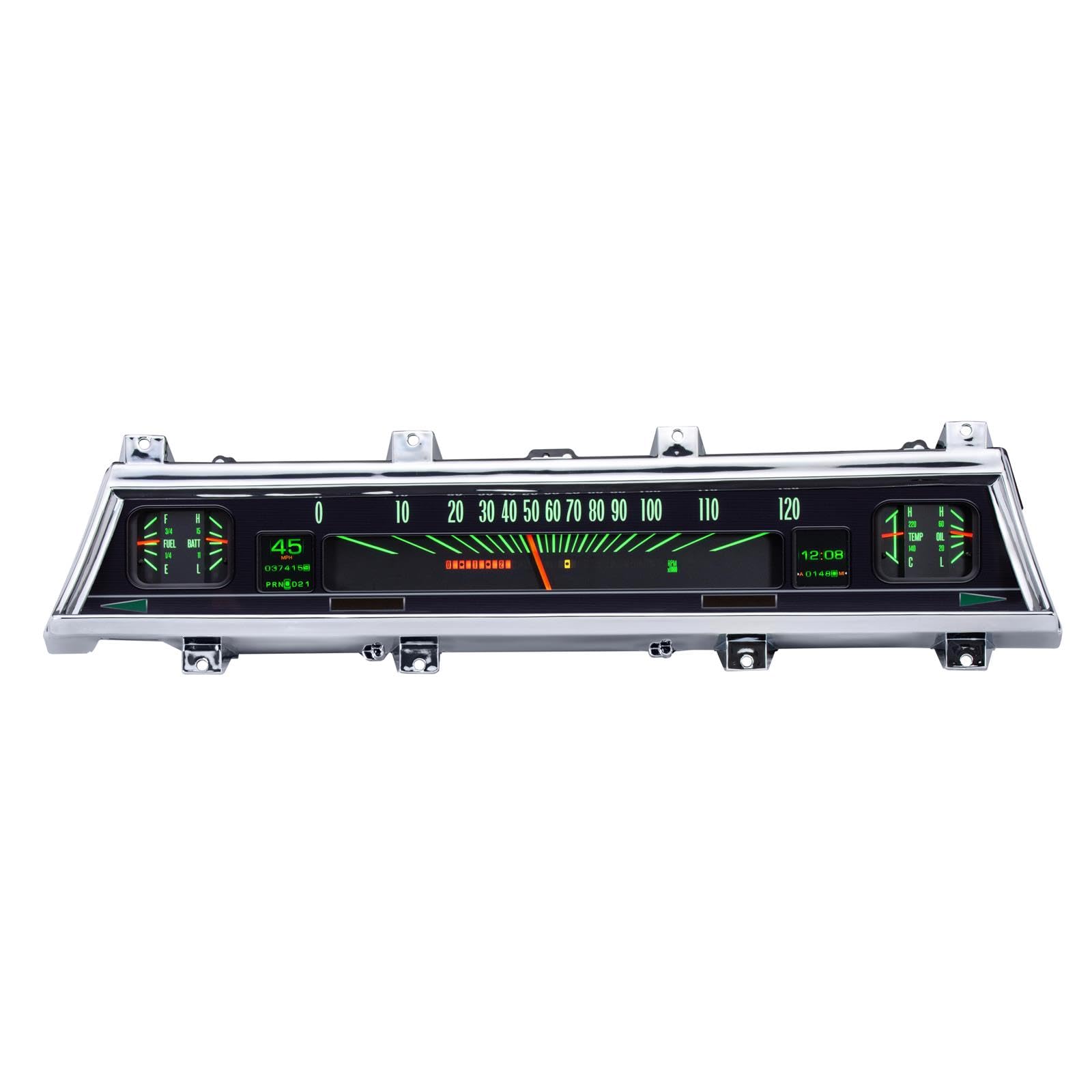

The gauge system is compatible with Chevelle, Malibu, or El Camino from 1966-67.
A long, sweeping speedometer is flanked by a pair of dual gauges that maintain the OEM feel, while the two 1.8” TFT message centers, LED backlighting, and hidden indicators bring your view into the future.
Below the speedometer and invisible until the key is on, an LED bar-graph tach is found, and the horizontal lines on the face are kept for the ultimate in stock appearance.
The bezel shown in any picture is NOT included and is shown for visual/demonstration purposes only.
A stock or reproduction bezel is required for installation.
The RTX series is the latest from Dakota Digital, focused on retaining the stock look without sacrificing the late-model features you love.
Every effort has been made to incorporate OEM design elements regarding the layout, face styling, and indicators.

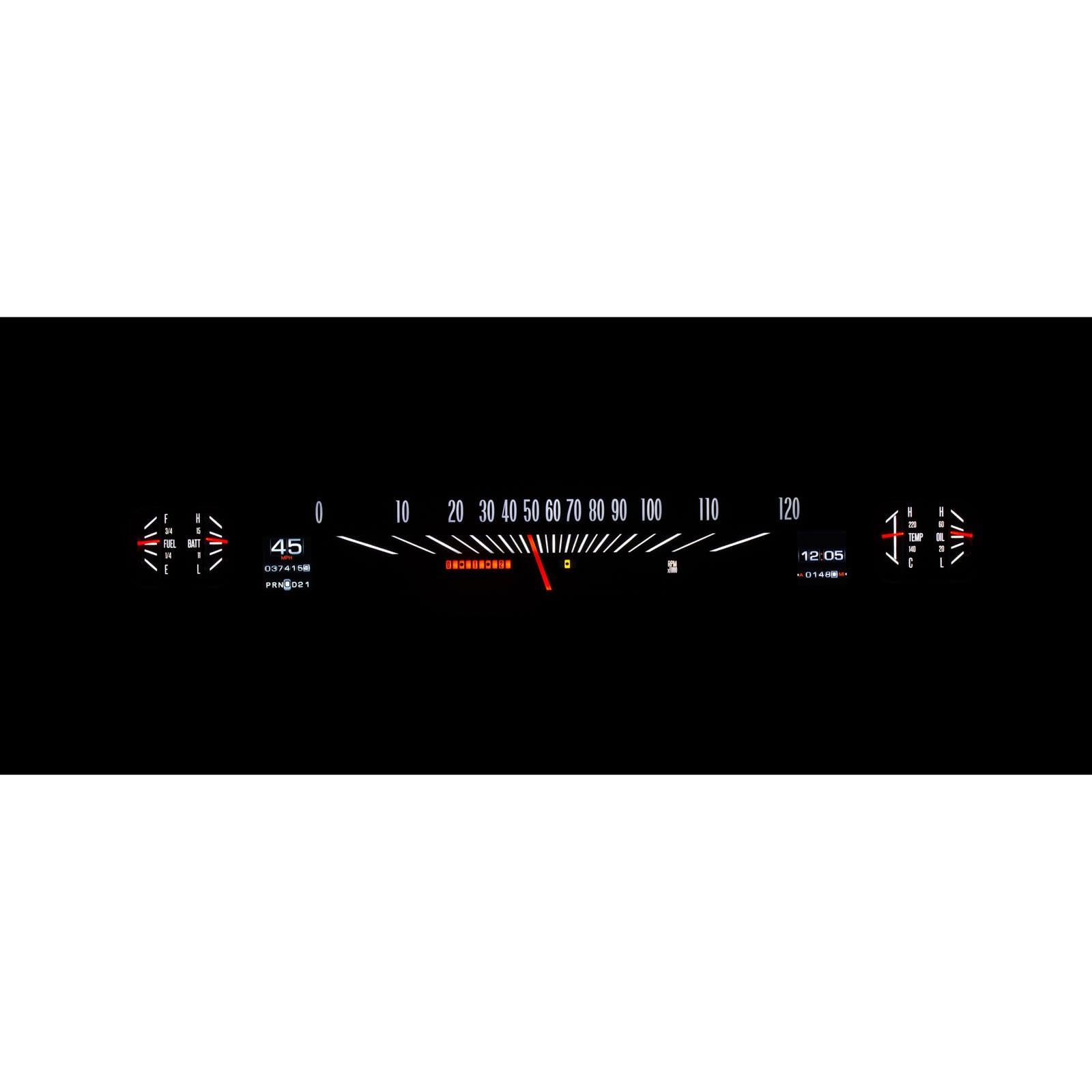

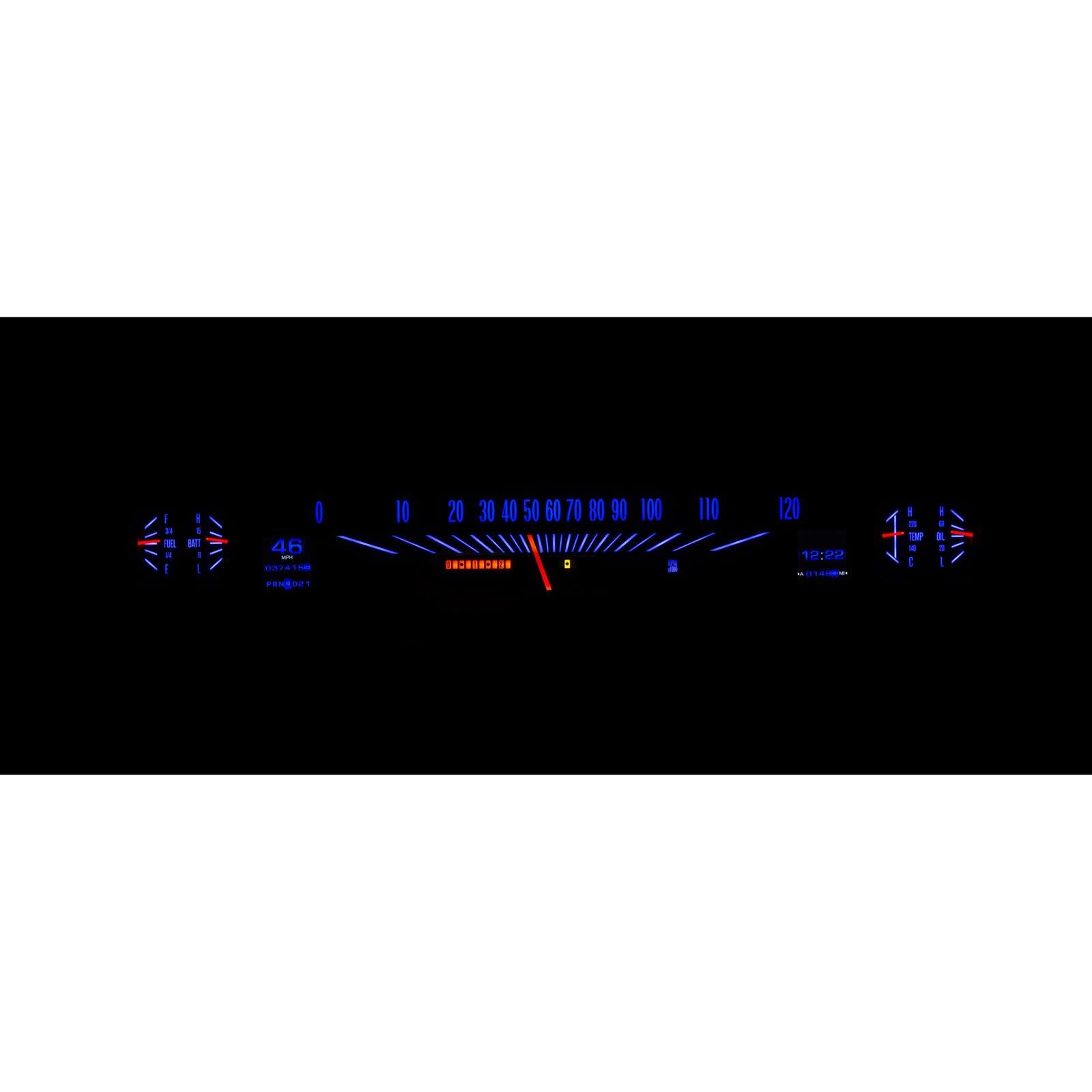

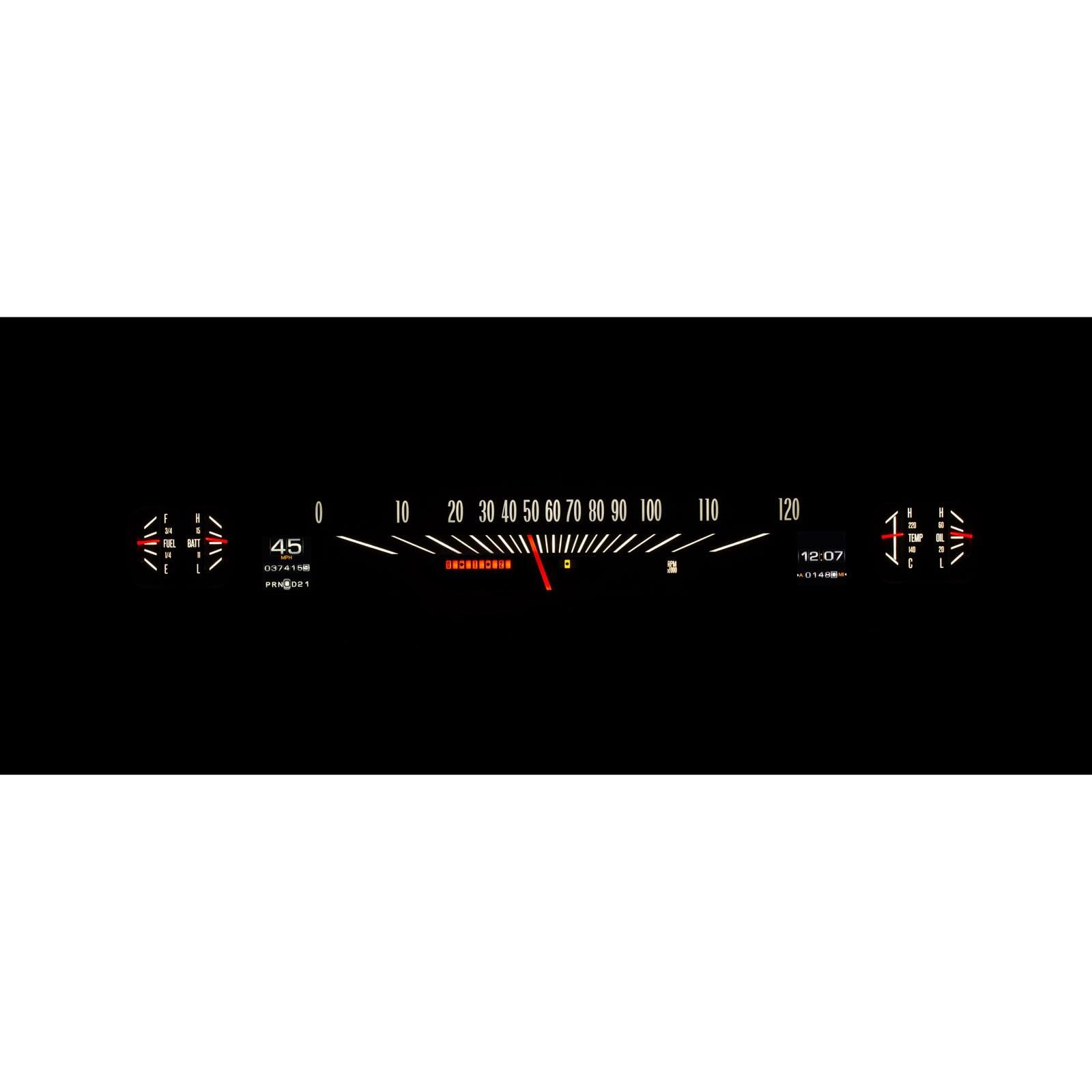

A casual glance may dismiss these as original equipment, but once the switch is hit and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house.
The high-definition TFT message centers can be fully configured to display just about any piece of information needed.

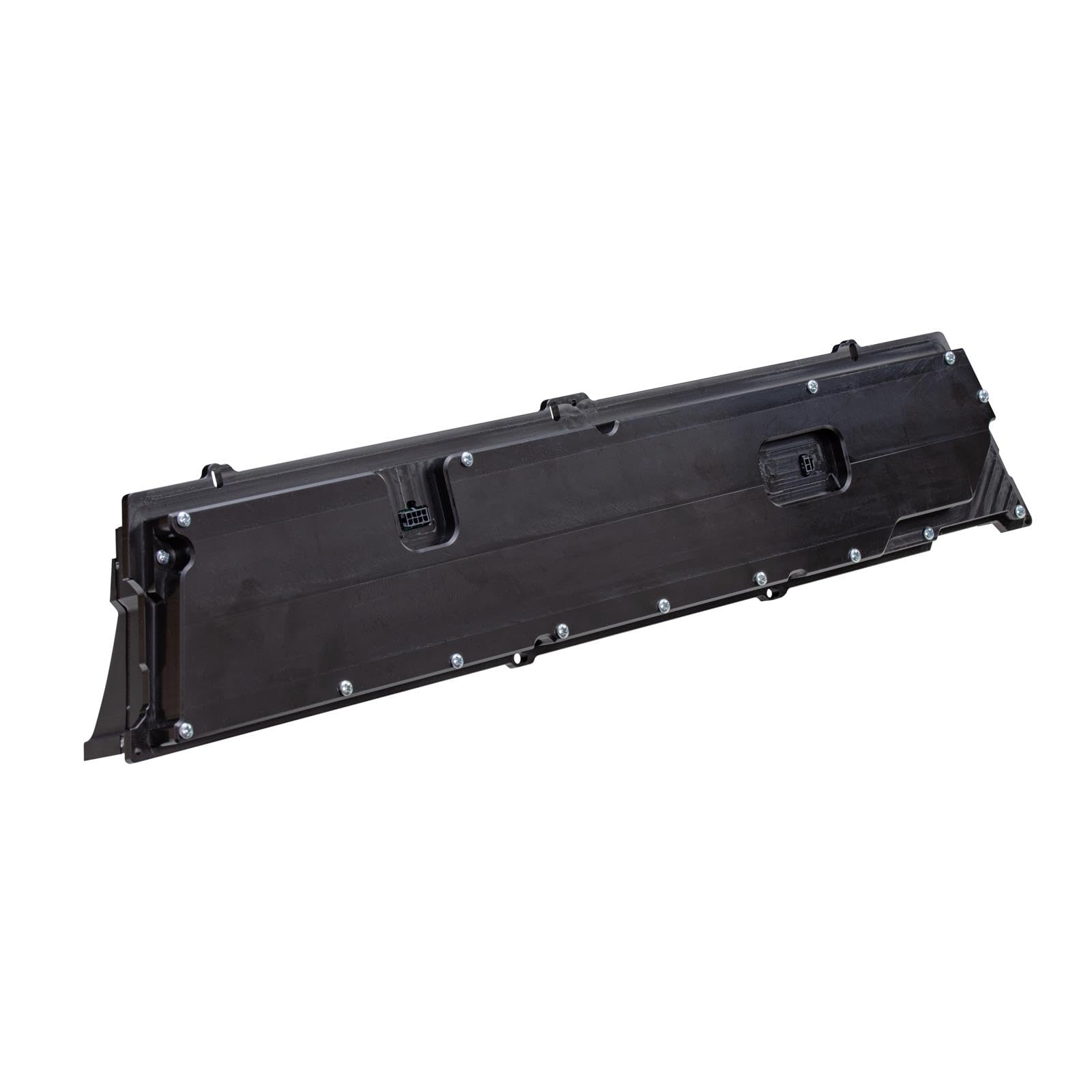

The RTX series utilizes a central control box to make installation and setup as easy as possible.
Analog gauges include speedometer (0-120MPH), oil pressure (0-80psi), water temp, fuel level, and voltmeter.
The digital bar graph tachometer ranges from 0-8000rpm.
Digital message centers display odometer, dual trip meter, clock (12 hour), estimated range/miles to empty, 0-60mph timer, 1/4 and 1/8 mile time and end speed, high speed & RPM recall.
Indicators include turn signals, high beam, check engine, parking brake, cruise control (on / on & engaged when vehicle is equipped), gear position (requires GSS-3000, sold separately), 4 x 4, and wait to start (when vehicle is equipped).
