The gauge system is compatible with 1973-87 Chevy Pickup, 1973-91 Chevy Blazer, GMC Jimmy and Suburbans.
Styled after the gauge design of 1973-75 Chevy Pickup.
The RTX series maintains the beloved square-body look of Chevy and GMC while incorporating late-model elements.
A bolt-in affair with your stock or aftermarket front bezel (not supplied).
The stock gear-indicator is retained, and the factory turn signal locations are now LED-lit.
*Bezel not included, shown for visual/presentation purposes.
The system uses OEM or reproduction style bezel.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing late-model features.
Every effort has been made to incorporate OEM design elements regarding layout, face styling, and indicators.

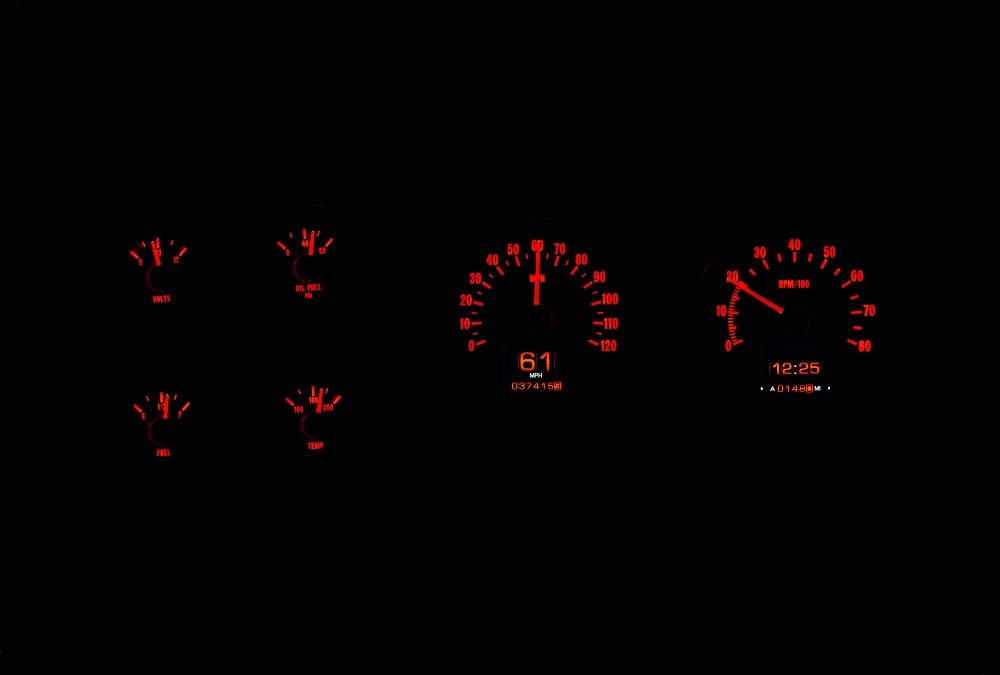

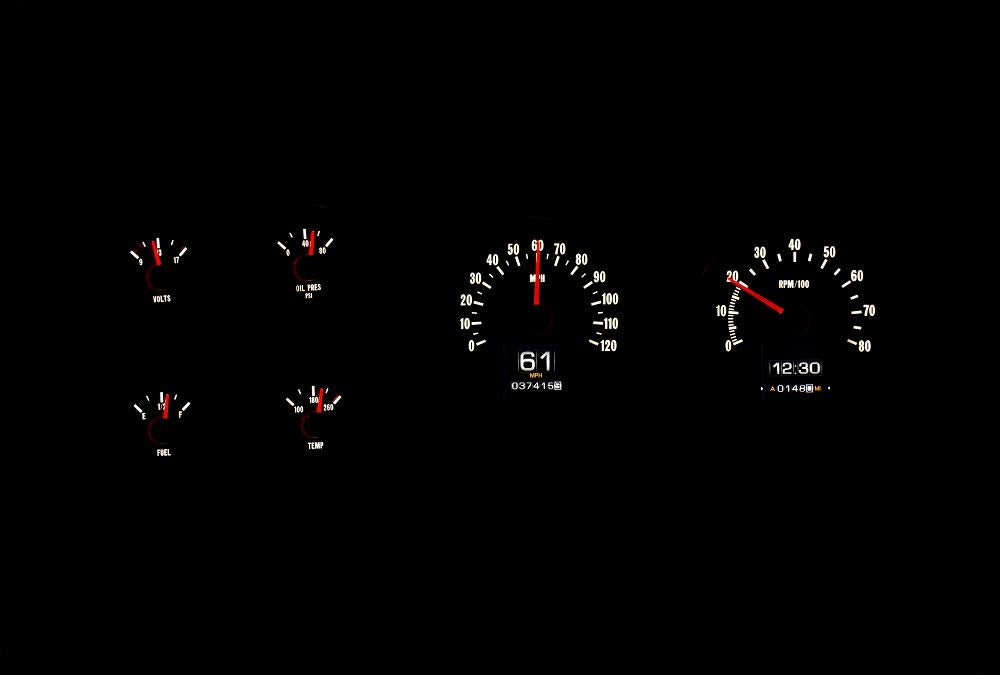

A casual glance may dismiss these as original equipment, but once the switch is hit and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

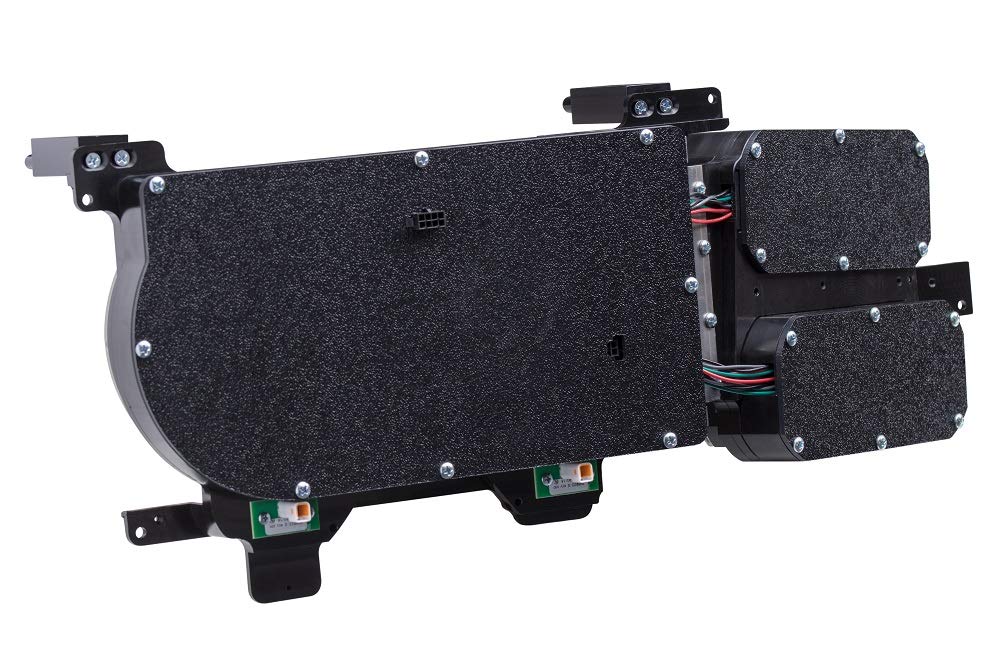

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house.

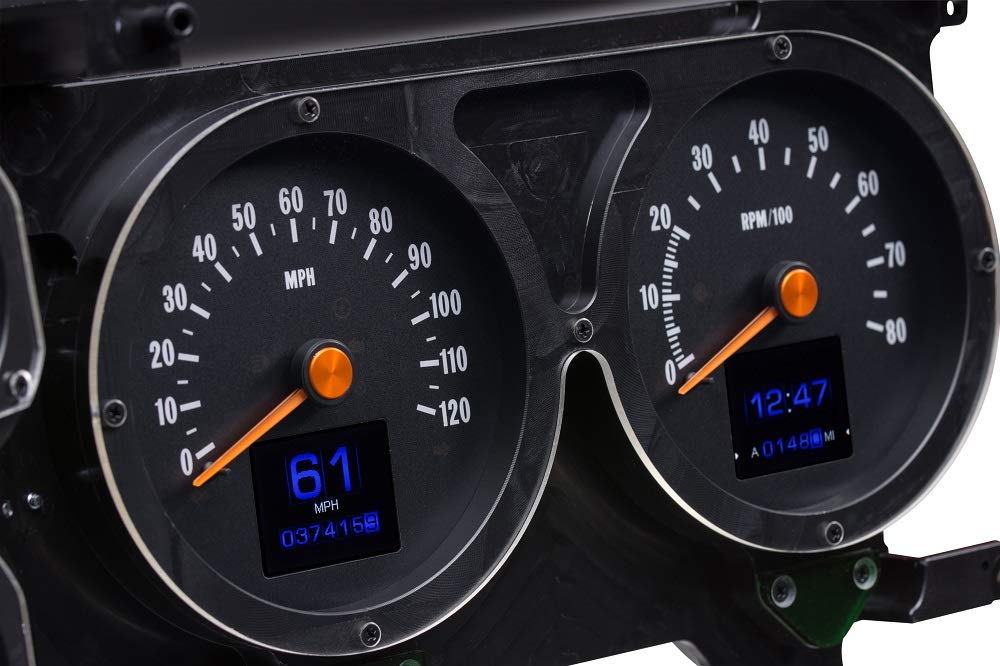

The high-definition TFT message centers can be fully configured to display just about any piece of information needed.
The RTX series utilizes a central control box to make installation and setup as easy as possible.

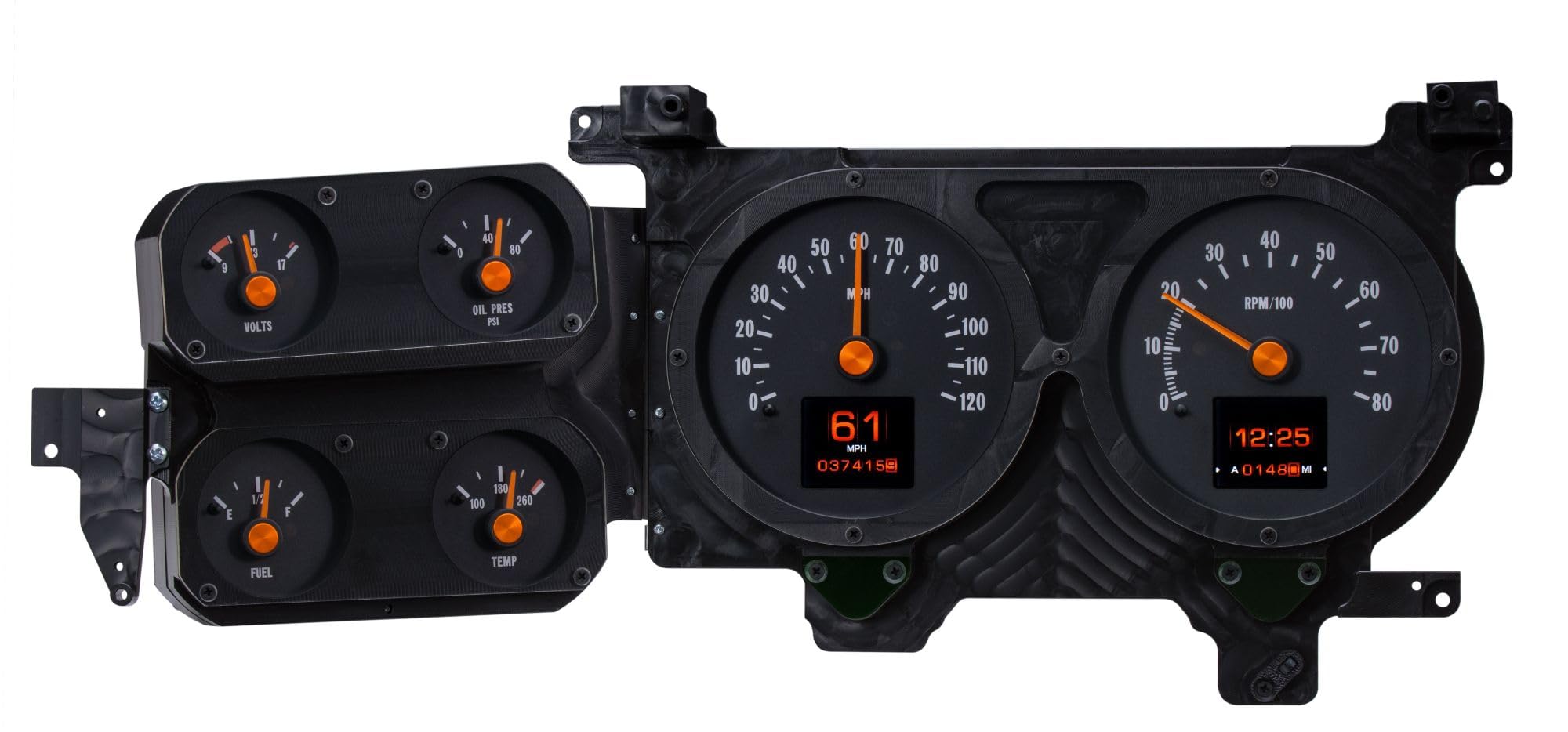

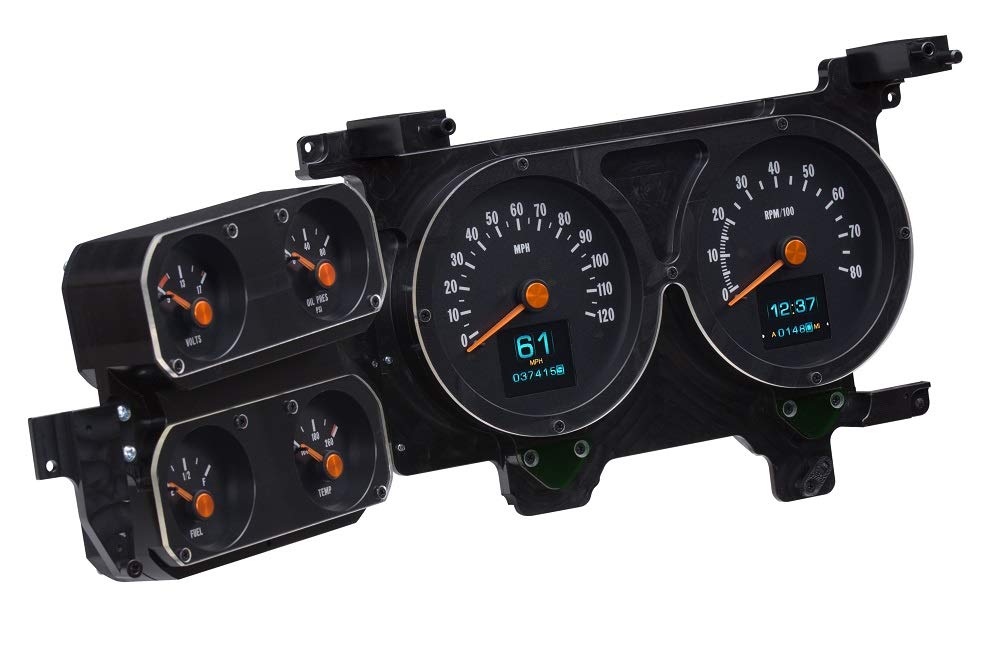

Analog gauges include Speedometer (0-120MPH), Tachometer, Oil Pressure (0-80psi), Water Temp, Fuel Level, and Voltmeter.
Digital message centers display Odometer, Dual Trip Meter, Clock (12 hour), Estimated Range/Miles to Empty, 0-60mph timer, 1/4 and 1/8 mile time and end speed, high speed & RPM recall.
Indicators include Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control (On/On & Engaged when vehicle is equipped), Gear Position (requires GSS-3000, sold separately), 4 x 4 and Wait to Start (when vehicle is equipped).
Over 30 user-selectable color options allow you to independently change the needle color, sweep color, and digital TFT display color.
