You can retain your stock instrument bezel with this system, but a small section of the dash between the speedometer and clock will need trimming.
With that minor modification, you’ll create space for a plethora of 21st century features such as LED backlighting (which can be set to your favorites), full-color TFT message center, late-model drivetrain integration, and more!
Every effort has been made to maintain the OEM look, so your vintage interior can remain just that!
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
* The instrument system eliminates the stock automatic gear shift indicator immediately above the steering column.
To display gear position, add GSS-3000 Gear Shift Sensor (sold separately).
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love.
Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling, and indicators.

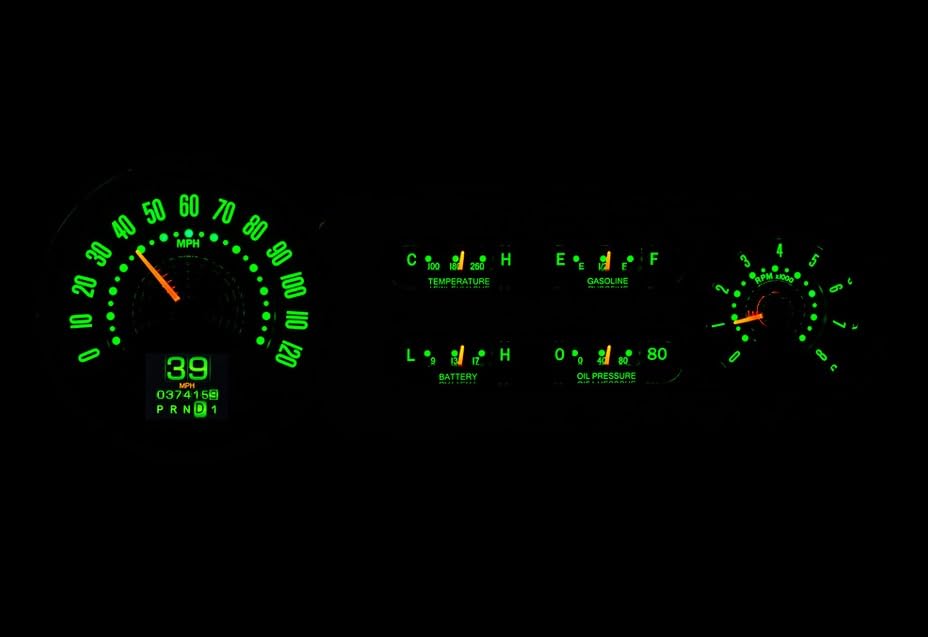

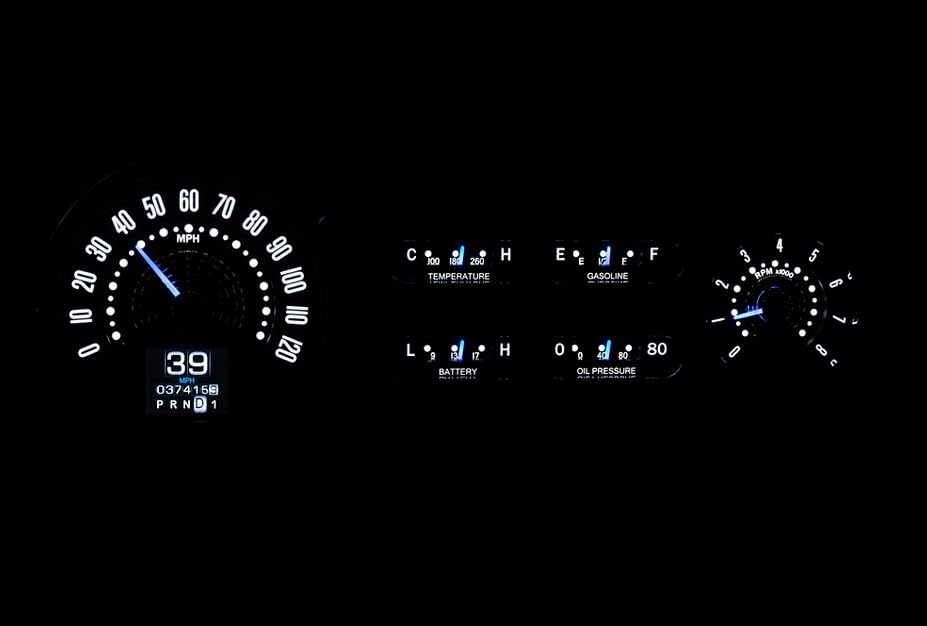

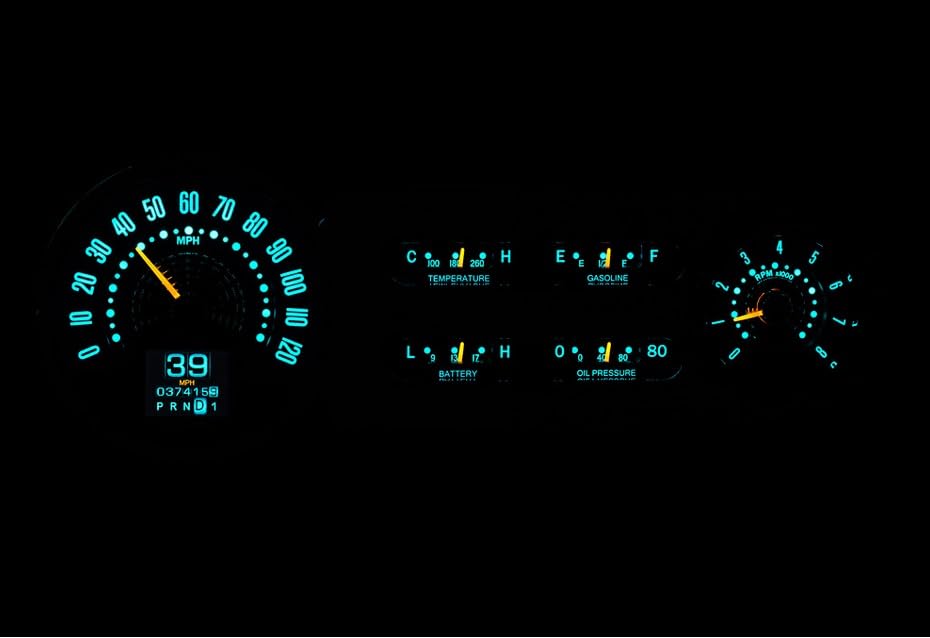

A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

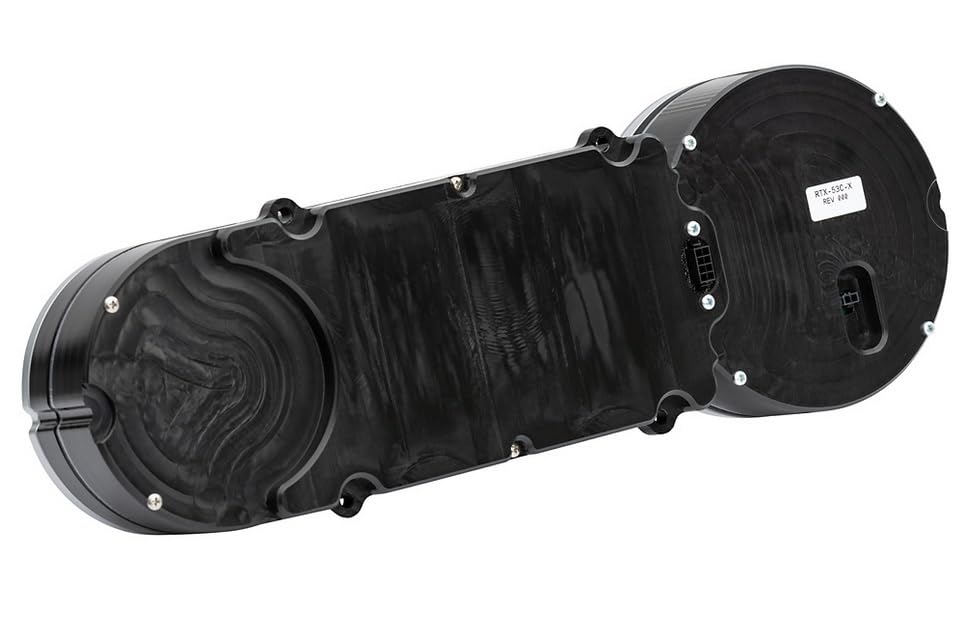

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation.
The high-definition TFT message centers can be fully configured to display just about any piece of information needed.

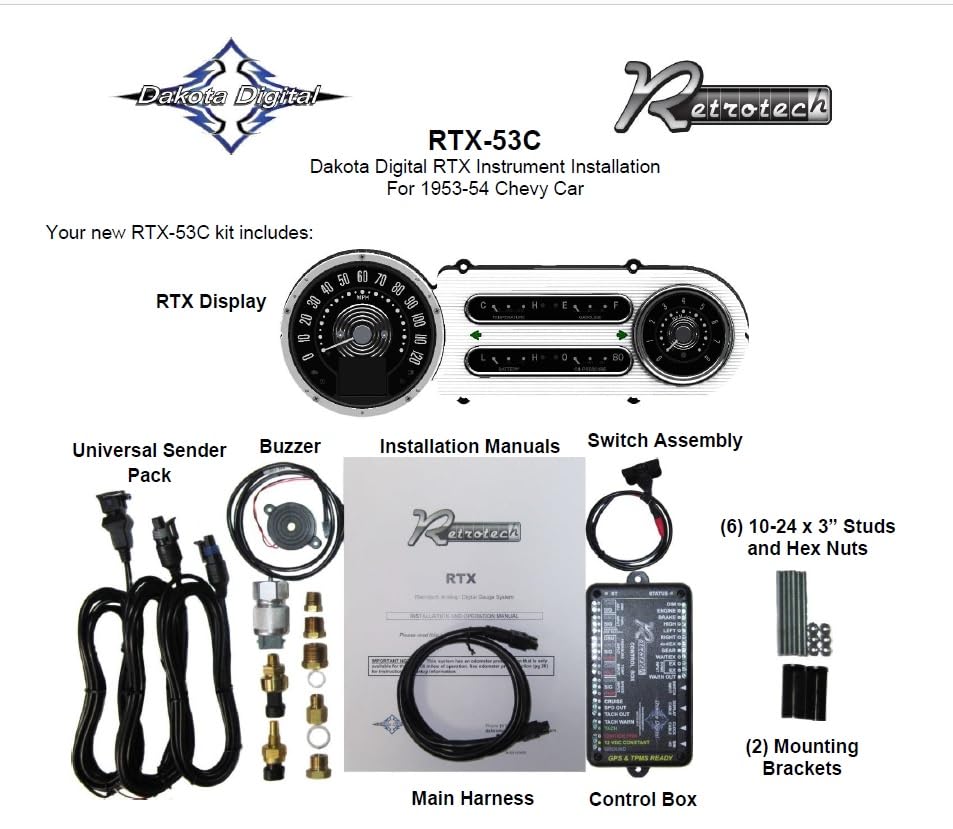

As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible.
Analog Gauges: Speedometer (0-120MPH), Oil Pressure (0-80psi), Water Temp, Fuel Level, and Voltmeter, Tachometer (0-8000rpm).
Digital Message Centers: Odometer, Dual Trip Meter, Clock (12 hour), Estimated Range/Miles to Empty, 0-60mph timer, 1/4 and 1/8 mile time and end speed, high speed & RPM recall.
Indicators: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control (On / On & Engaged when vehicle is equipped), Gear Position (requires GSS-3000, sold separately), 4 x 4 and Wait to Start (when vehicle is equipped).
Color: Over 30 user-selectable color options.
