Dakota Digital Universal VHX-1017-S-W Elliptical Analog Dash Gauge System, Silver Alloy Style, White Backlighting

$1,079.27 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : Dakota Digital
Universal VHX-1017 Elliptical gauge cluster measures 12.05" W x 5.7" H.
Out of stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

Dakota Digital Universal VHX-1017-S-W Elliptical Analog Dash Gauge System, Silver Alloy Style, White Backlighting
Dakota Digital Universal VHX-1017-S-W Elliptical Analog Dash Gauge System, Silver Alloy Style, White Backlighting
View Detail
Type
Gauge Sets
Title
Dakota Digital Universal VHX-1017-S-W Elliptical Analog Dash Gauge System, Silver Alloy Style, White Backlighting
Price
$1,079.27 USD
Vendor
Dakota Digital
Description

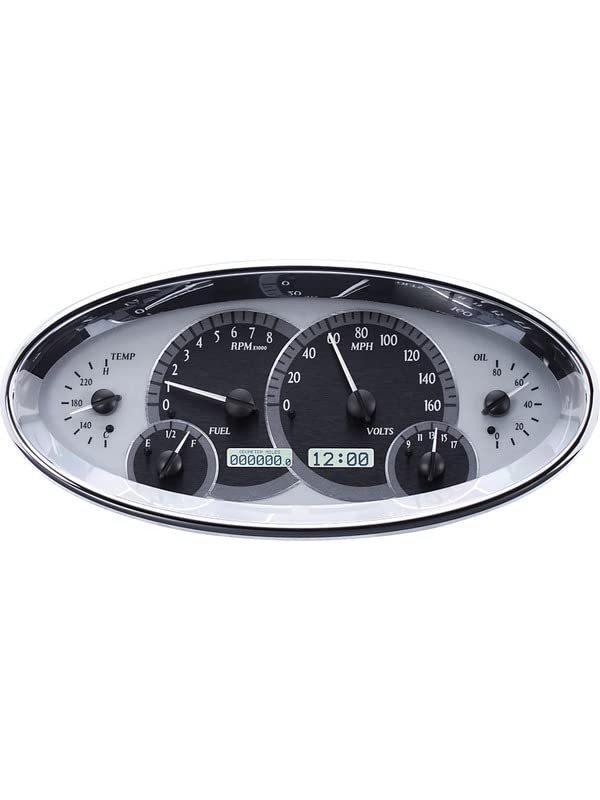

The Universal VHX-1017 Elliptical gauge cluster measures 12.05" W x 5.7" H.Inspired by the iconic designs of Art Deco from the 1930s, the VHX-1017 is housed in a show chromed billet aluminum housing measuring 12.05 x 5.7” (11.66" x 5.3" cutout).At just 2.5” deep, this system can be used in cramped applications, bringing both function and form.Fully lit needles, backlit faces, and highly visible LCD message centers are a few features that set the VHX Series apart from traditional instrumentation.A few features that are not commonly seen include micro-controlled precision stepper motors, solid state sensors for accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty that has become the standard for Dakota Digital instrumentation systems.Engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has revolutionized the instrumentation industry!

More about this item : Dakota Digital Universal VHX-1017-S-W Elliptical Analog Dash Gauge System, Silver Alloy Style, White Backlighting

The Universal VHX-1017 Elliptical gauge cluster measures 12.05" W x 5.7" H.

Inspired by the iconic designs of Art Deco from the 1930s, the VHX-1017 is housed in a show chromed billet aluminum housing measuring 12.05 x 5.7” (11.66" x 5.3" cutout).

At just 2.5” deep, this system can be used in cramped applications, bringing both function and form.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few features that set the VHX Series apart from traditional instrumentation.

A few features that are not commonly seen include micro-controlled precision stepper motors, solid state sensors for accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty that has become the standard for Dakota Digital instrumentation systems.

Engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has revolutionized the instrumentation industry!

Dakota Digital Universal VHX-1017-S-W Elliptical Analog Dash Gauge System, Silver Alloy Style, White Backlighting
Key Features
  • Included Analog Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level
  • Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer
  • Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control
  • Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT) as well as 12mm and 16mm for GM & LS applications and speedometer pulse generator
  • VHX-1017-S-W (silver alloy style/white backlighting) is housed in a billet aluminum, show chromed housing measuring 12.05 x 5.7” (11.66" x 5.3" cutout)
  • At just 2.5” deep, this instrument system can be used in the most cramped applications
Technical Specifications
  • Length : 20.0 lb
  • Width : 18.0 lb
  • Height : 10.0 lb
  • Weight : 7.0 lb
Product Identifiers
  • ASIN B0868SQYD7
  • UPC: 670219109803
Shipping Information
  • Ships From : United States
  • Brand : Dakota Digital

Frequently Asked Questions About : Dakota Digital Universal VHX-1017-S-W Elliptical Analog Dash Gauge System, Silver Alloy Style, White Backlighting

01 What are the dimensions of the Universal VHX-1017 gauge cluster?

The Universal VHX-1017 gauge cluster measures 12.05" W x 5.7" H.

02 What type of housing does the VHX-1017 have?

The VHX-1017 is housed in a billet aluminum, show chromed housing.

03 What indicators can be displayed?

Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control.
