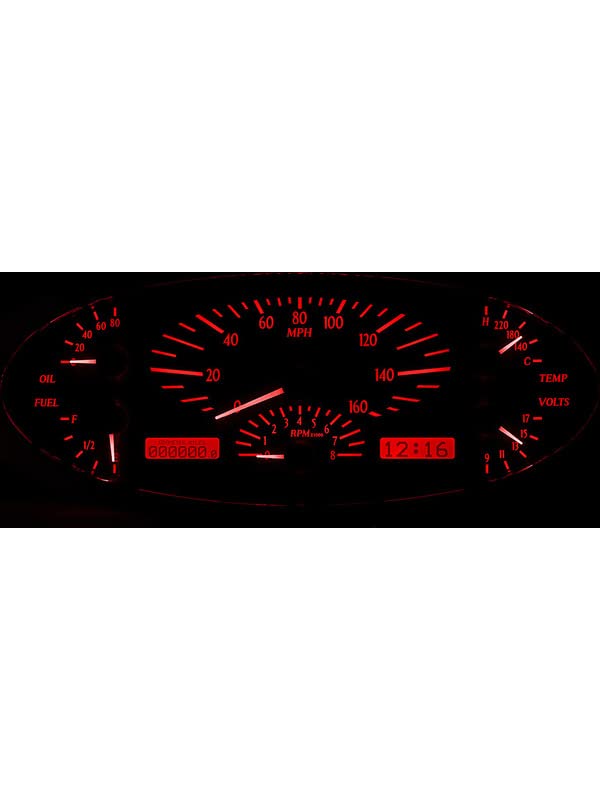

This aftermarket gauge system by Dakota Digital is designed to be compatible with the 1932 Ford Car and fits directly into the stock dash without modification.
It includes the new chrome bezel shown.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few features that set the VHX Series apart from traditional instrumentation approaches.
Features that are not commonly seen include micro-controlled precision stepper motors, solid state sensors for accuracy, and user-customizable display feedback, all backed by an unrivaled limited lifetime warranty that has become the standard for Dakota Digital instrumentation systems.
The VHX Series is completely engineered and manufactured at their facility in Sioux Falls, South Dakota, and has revolutionized the instrumentation industry!
Dimensions: Overall: 12.135" W x 4.925" H Cutout: 11.685" W x 4.525" H.
It includes the new chrome bezel shown.
Analog Gauges: Speedometer - 0-160 MPH, Tachometer - 0-8000 RPM, Oil Pressure - 0-80 psi, Water Temperature - 100-260ºF, Fuel Level - E, 1/4, 1/2, 3/4, F, Voltmeter - 9-17 VDC.
Digital Message Centers: Standard Displays: -Odometer (One time user settable, Million Mile), -Dual (A/B) Trip Meter (0- 9,999.9), -Clock (12 hour).
Performance Meters: -0-60 MPH Timer (0- 100 kmh), -1/4 mile time, -1/4 mile end speed (trap speed), -High speed recall, -High RPM recall.
Built-In Indicators: -Turn Signals (Left/ Right), -High Beam, -Check Engine, -Parking Brake, -Cruise Control (On/ On & Engaged when vehicle is equipped), -Gear Position (Optional GSS-2000 sensor required, sold separately), -4 x 4 (When vehicle is equipped), -Wait to Start (When vehicle is equipped).
