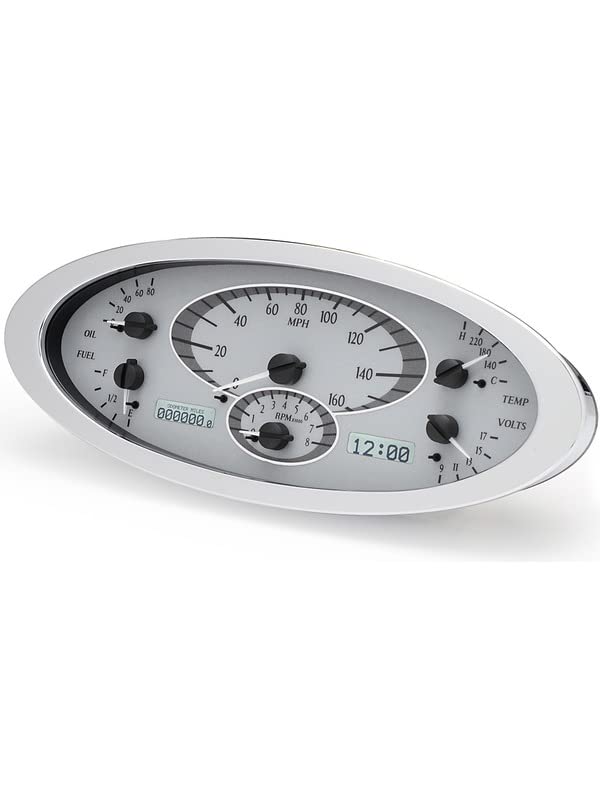

This aftermarket gauge system by Dakota Digital fits directly into the stock dash without modification.
Included is a new chrome bezel shown.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few features that set the VHX Series apart from yesterday’s traditional approach to instrumentation.
A few features that you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.
Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has revolutionized the instrumentation industry!
Dimensions: Overall: 12.135" W x 4.925" H Cutout: 11.685" W x 4.525" H *Includes new chrome bezel shown Analog Gauges: Speedometer - 0-160 MPH Tachometer - 0-8000 RPM Oil Pressure - 0-80 psi Water Temperature - 100-260ºF Fuel Level - E, 1/4, 1/2, 3/4, F Voltmeter - 9-17 VDC Digital Message Centers: Standard Displays: -Odometer (One time user settable, Million Mile) -Dual (A/B) Trip Meter (0- 9,999.9) -Clock (12 hour) Performance Meters: -0-60 MPH Timer (0- 100 kmh) -1/4 mile time -1/4 mile end speed (trap speed) -High speed recall -High RPM recall Built-In Indicators: -Turn Signals (Left/ Right) -High Beam -Check Engine -Parking Brake -Cruise Control (On/ On & Engaged when vehicle is equipped) -Gear Position (Optional GSS-3000 sensor required, sold separately) -4 x 4 (When vehicle is equipped) -Wait to Start (When vehicle is equipped)
