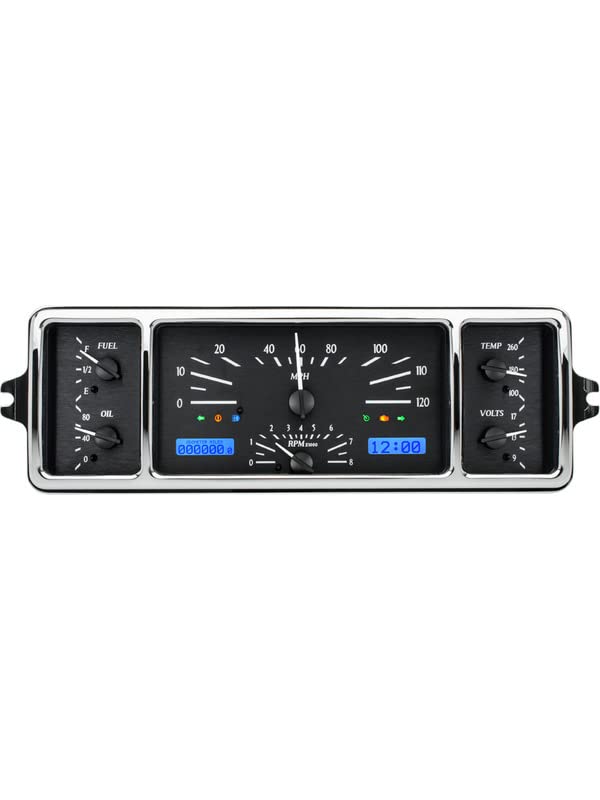

The VHX Systems fit directly into the dash of a 1939 Chevy Car, including a chrome machined aluminum instrument housing that is triple-plated.
This system includes a 6-gauge setup with a new machined aluminum/chromed housing that attaches directly into the back of the stock dash.
Backlit faces, fully lit needles, and highly visible LCD message centers are a few features that set the VHX Series apart from traditional instrumentation.
Features that are not commonly seen include micro-controlled precision stepper motors, solid state sensors for accuracy, and customizable display feedback, all backed by a limited lifetime warranty that has become the standard for Dakota Digital instrumentation systems.
The VHX Series is engineered and manufactured at the Dakota Digital facility in Sioux Falls, South Dakota, revolutionizing the instrumentation industry.
Dimensions: Overall: 12" W x 4" H.
Machined Aluminum Bezel Included.
Analog Gauges: Speedometer - 0-120 MPH, Tachometer - 0-8000 RPM, Oil Pressure - 0-80 psi, Water Temperature - 100-260ºF, Fuel Level - E, 1/4, 1/2, 3/4, F, Voltmeter - 9-17 VDC.
Digital Message Centers: Standard Displays: Odometer (One time user settable, Million Mile), Dual (A/B) Trip Meter (0- 9,999.9), Clock (12 hour).
Performance Meters: 0-60 MPH Timer (0- 100 kmh), 1/4 mile time, 1/4 mile end speed (trap speed), High speed recall, High RPM recall.
Built-In Indicators: Turn Signals (Left/ Right), High Beam, Check Engine, Parking Brake, Cruise Control (On/ On & Engaged when vehicle is equipped), Gear Position (Optional GSS-2000 sensor required, sold separately), 4 x 4 (When vehicle is equipped), Wait to Start (When vehicle is equipped).
