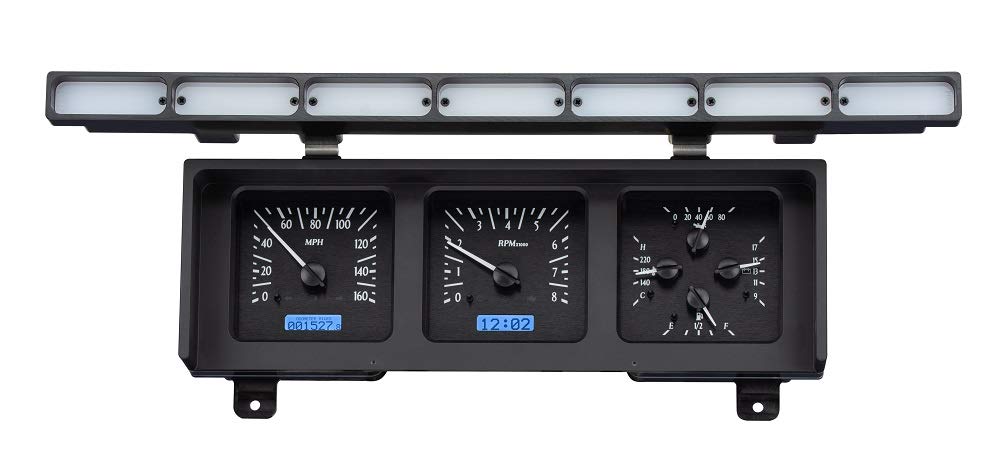

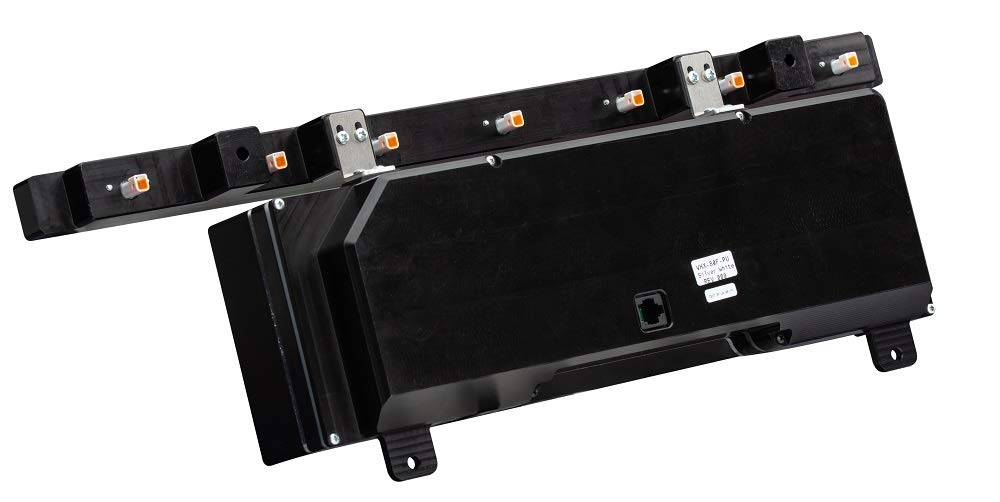

This instrument system is a direct fit for your 1980-86 Ford F-Series.
Six analog gauges with twin LCD message centers bolt in while updating the upper indicator strip with LEDs.
The kit utilizes your existing front bezel for a seamless upgrade.
The speedometer can be used in mechanical applications or with a pre-existing VSS and is compatible with stock drivetrains or a custom conversion.
Also compatible with 1980-86 Bronco.
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

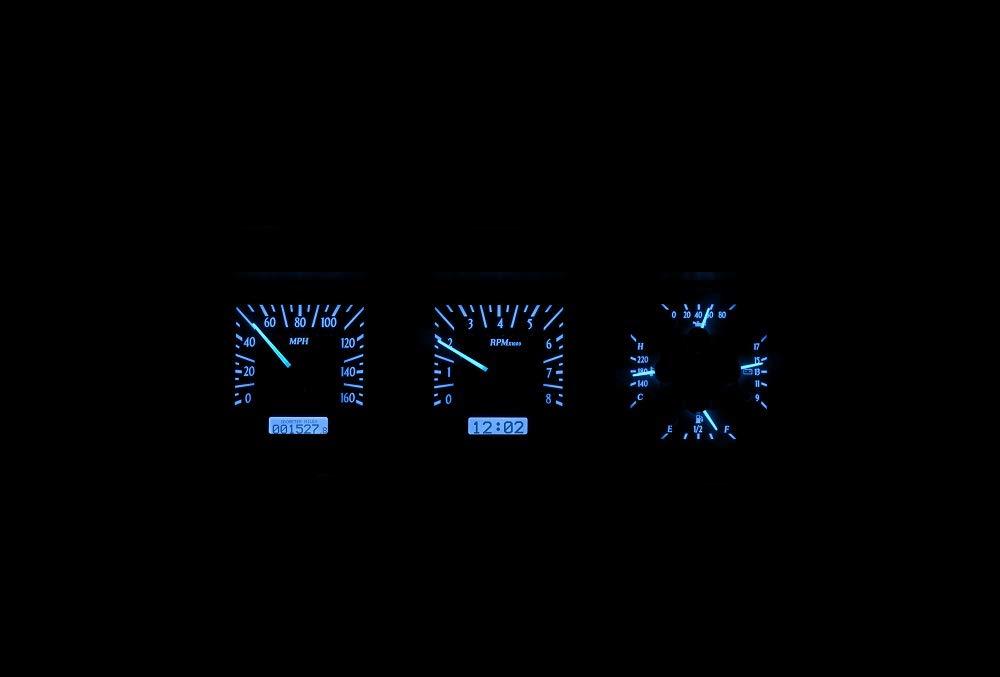

Fully lit needles, backlit faces, and highly visible LCD message centers are a few features that set the VHX Series apart from traditional instrumentation.
Features not commonly seen include micro-controlled precision stepper motors, solid state sensors for accuracy, and user-customizable display feedback, all backed by an unrivaled limited lifetime warranty that has become the standard for Dakota Digital instrumentation systems.
Completely engineered and manufactured at Dakota Digital's facility in Sioux Falls, South Dakota, the VHX Series has revolutionized the instrumentation industry!
*Bezel shown in any pics is NOT included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
Analog Gauges: Speedometer - 0-160 MPH Tachometer - 0-8000 RPM Oil Pressure - 0-80 psi Water Temperature - 100-260ºF Fuel Level - E, 1/4, 1/2, 3/4, F Voltmeter - 9-17 VDC Digital Message Centers: Standard Displays: -Odometer (One time user settable, Million Mile) -Dual (A/B) Trip Meter (0- 9,999.9) -Clock (12 hour) Performance Meters: -0-60 MPH Timer (0- 100 kmh) -1/4 mile time -1/4 mile end speed (trap speed) -High speed recall -High RPM recall Built-In Indicators: -Turn Signals (Left/ Right) -High Beam -Check Engine -Parking Brake
