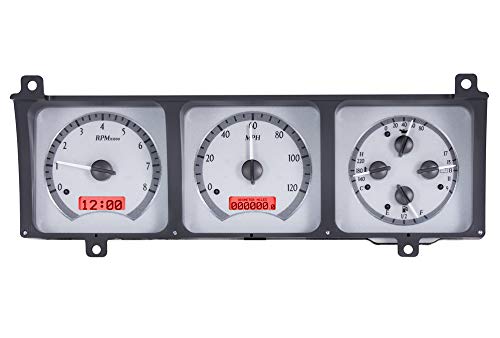

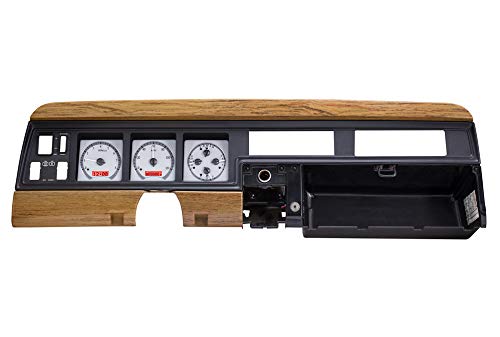

The VHX System is compatible with Jeep Wagoneer from 1986-91 and Jeep J-Trucks from 1986-88, designed to fit directly into the stock dash (bezel is NOT included): VHX-86J-WAG fits original stock dash/ bezel/ fascia/ trim, not included.
For reference, the image shown is for demonstration only.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few features that set the VHX Series apart from traditional instrumentation.

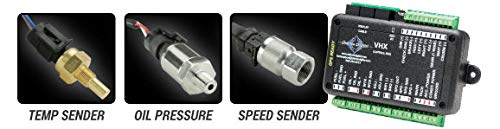

Features that are not commonly seen include micro-controlled precision stepper motors, solid state sensors for accuracy, and user-customizable display feedback, all backed by an unrivaled limited lifetime warranty that has become the standard for Dakota Digital instrumentation systems.
The VHX Series is engineered and manufactured at their facility in Sioux Falls, South Dakota, revolutionizing the instrumentation industry!
Analog Gauges: Speedometer - 0-160 MPH Tachometer - 0-8000 RPM Oil Pressure - 0-80 psi Water Temperature - 100-260ºF Fuel Level - E, 1/4, 1/2, 3/4, F Voltmeter - 9-17 VDC Digital Message Centers: Standard Displays: -Odometer (One time user settable, Million Mile) -Dual (A/B) Trip Meter (0- 9,999.9) -Clock (12 hour) Performance Meters: -0-60 MPH Timer (0- 100 kmh) -1/4 mile time -1/4 mile end speed (trap speed) -High speed recall -High RPM recall Built-In Indicators: -Turn Signals (Left/ Right) -High Beam -Check Engine -Parking Brake -Cruise Control (On/ On & Engaged when vehicle is equipped) -Gear Position (Optional GSS-3000 sensor required, sold separately) -4 x 4 (When vehicle is equipped) -Wait to Start (When vehicle is equipped)
