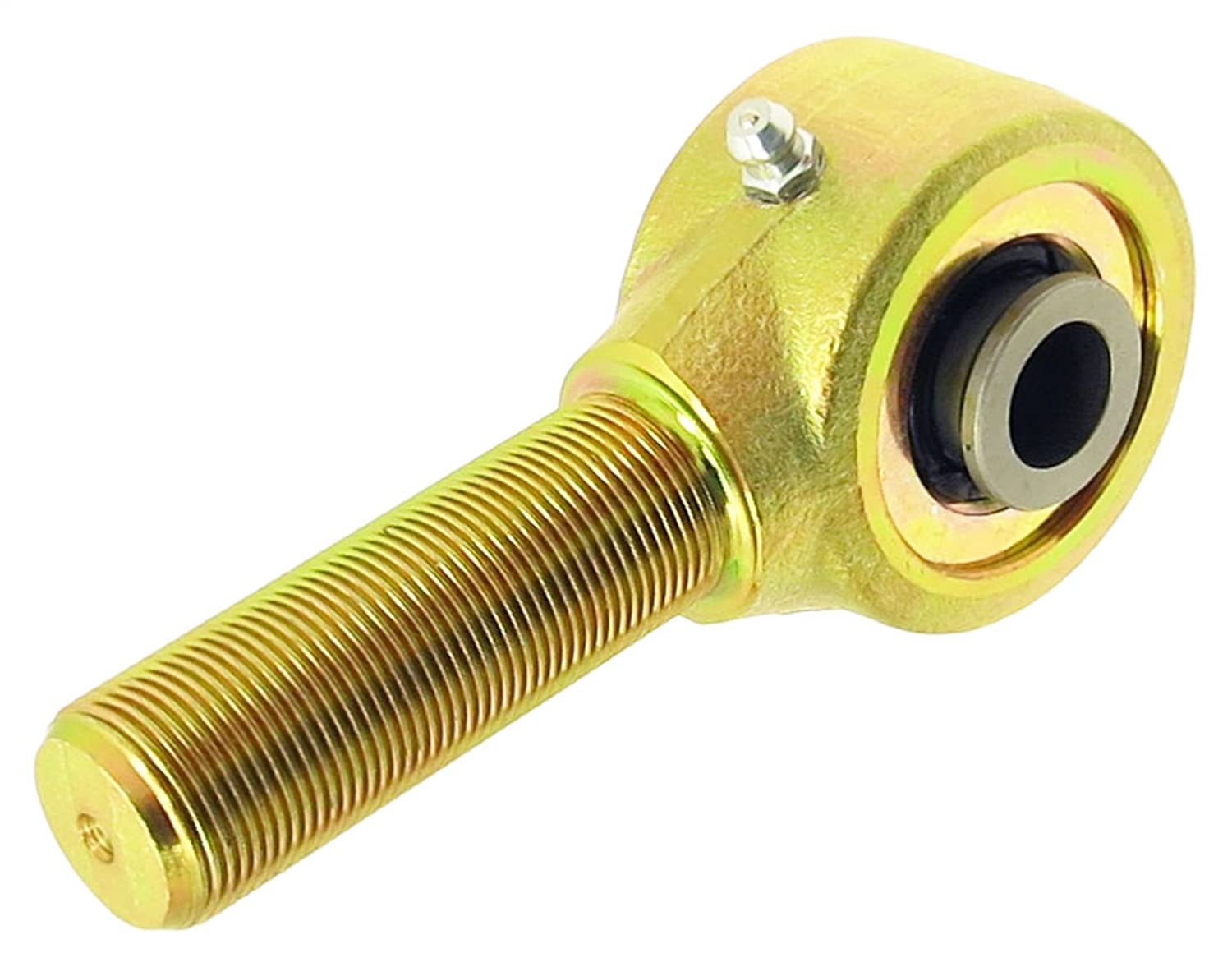

RockJock's narrow forged Johnny Joints for fabricators and builders of suspension systems offer 40 degrees of unrestricted movement in any direction, compared to 22 degrees on a common heim joint!
Johnny Joint rod ends provide cushioning that a heim joint cannot offer via high-density urethane bushing encasing the inner ball.
The center balls, which are heat treated, are cross-drilled for thru-bolt lubrication, and the internals of the joint are retained with 2 heavy duty, heat treated side washers and a snap ring.
This specific joint has a 2 in.
diameter, fitted with a zerk fitting for greasing, 2 1/4 in.
of 7/8 in.-14 left hand threads on the shank, and a 1.600 in.
mounting width ball with a .562 in.
thru bolt hole.
It is finished in gold zinc plating.
