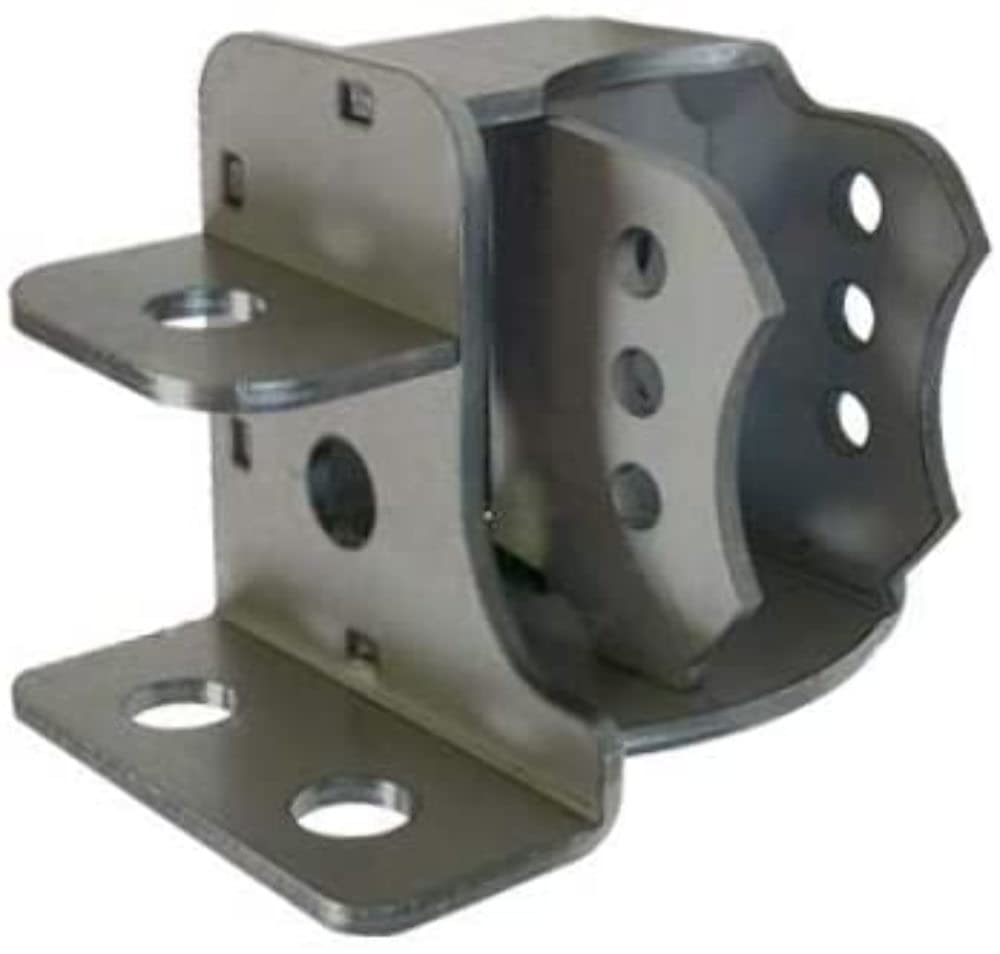

Adjustable Inner Frame Bracket (single).
The ideal complement to your Spring Over Axle (SOA) swap and Artec Modular Truss.
U-bolts are eliminated to increase strength by spreading load to 4 bolts instead of 2.
Truss end caps are included for seamless transition between Artec Modular Trusses.
Three leaf pin positions allow for one inch adjustments forward or back.
The bracket's style provides a unique, custom one-off look similar to what you'd find with a high dollar fabrication shop.
No more brackets that resemble modified pieces of angle iron or c-channel, but rather formed pieces of artwork to display.
Details: Sold as Each Angle: 10 degrees Side: Front Passenger/Rear Drive Side Is Based On Front Application (i.e.
Front Driver) One inch separation exists between each hole for adjustability.
Floating top gusset accommodates any height frame.
Frame plate adds strength and a surface to weld the bracket to with jigs for easy assembly.
2.625 inch mounting width with 9/16 inch bolt hole for common sized Cartridge Joints (Johnny, Flex, Ballistic, etc).
Can be drilled out to a larger hole size for 1.25 inch rod ends with spacers.
Can be easily modified for smaller joints.
Made from 1/4 inch thick boxed steel plate for strength and impact resistance.
Grease fitting access on top allows easy maintenance of your most abused joint.
The skid plate at the bottom of the bracket wraps around the joint, protecting it from direct impact and decreasing premature wear on the joint.
This leads to longer life and fewer replacements.
The skid plate design does not restrict joint movement.
