LED Indicators.
The Ford Flex's factory incandescent turn signals illuminate in a slow glow, taking a moment to turn off and on.
With replacement LED bulbs, you can update your vehicle immediately with the instant on-off blinking of modern LEDs.
This instant activation adds a distinct and modern look to the Flex.
Dual Brightness.

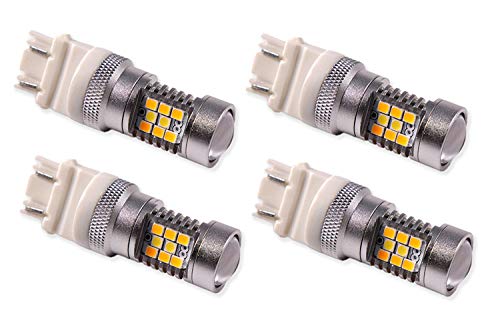

The Flex uses a dual-filament 3157 bulb.
They light up with low power as parking lights, then get brighter when the turn signal or hazards are activated.
The brightness ratio of factory bulbs is traditionally 15: 100, or 15 percent lumen output for the dim function.
Diode Dynamics bulbs are designed to match this, ensuring enough distinction between low and high brightness levels.
As with all Diode Dynamics LED bulbs, these turn signal bulbs are rated with accurate, measured lumen figures, not calculations or guesses.
Switchback.
The dual-filament function of factory turn signal bulbs gives you the ability to choose a unique LED bulb model: switchback!
These bulbs illuminate in bright white for the low power setting for your running/parking light, then switch to intense amber when the turn signals are activated.
When the turn signal is switched off, they return to the original white output.
The result is a modern dual-color effect, as seen on many high-end vehicles on the road.
Please note: to properly see the white, you must have clear reflectors/lenses over the turn signal bulb.
If your Flex has amber reflectors, you might be able to find clear aftermarket ones to complete this upgrade!
Reduced Load.
When it comes to LED upgrades, the lower power draw might seem like a great feature!
However, the Flex looks for a specific power draw from the turn signals.
LEDs will cause the vehicle to think a bulb has gone out, due to lower power draw.
This results in a hyperblink, or fast-blinking turn signal, which can be corrected with LED Resistors or an LED Flasher.
The most basic, tried-and-true method to correct hyperblinking is to add resistors.
These can be used on any vehicle, because a 6-ohm resistor uses about the same power as a standard turn signal bulb.
One resistor is needed to replace each turn signal bulb.
You may have also heard of flasher relays, which is the actual module that determines flash speed.
On some vehicles, it can be replaced with one designed for LED power levels.
However, on many newer vehicles, these modules cannot be replaced.
If it's possible to replace the flasher on the Flex, you'll see one listed above.
Only one flasher is needed per vehicle for both front and rear LED turn signal conversions.
Reliability.
Diode Dynamics LEDs are built with constant-current inductive circuitry, along with transient suppression.
They are tested by our engineering team with a device that replicates years of voltage spikes, like those generated each time the alternator starts and stops on your Flex.
This is what kills most LED bulbs over time, but just like factory components, Diode Dynamics LEDs are designed with built-in circuit protection.
While more expensive than simple bulbs, this allows Diode Dynamics LEDs to last for years, with no flickering or failure.
Experience.
After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting.
We directly manufacture and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology.
Whether it's a Ford or anything else, we pride ourselves in offering only the best possible LED solutions.
