This clock unit must be connected to any VHX control box.
The mounting-hole diameter of 2-1/16” makes this clock easy to mount.
Choose from styling options of black or silver face.
The bezel shape and overall diameter of 2-5/16” make it a perfect match for the VHX-1024, VHX-1050, or VHX-1060 package (gauge systems sold separately, not included).
Dimensions: Cutout: 2-1/16" Overall: 2-5/16" VLC clock gauges CANNOT be used as a standalone clock.
They must be connected to a VHX gauge system or they will not work!
Check out Dakota Digital's new VLC Clocks - made to complement their VHX counterparts!

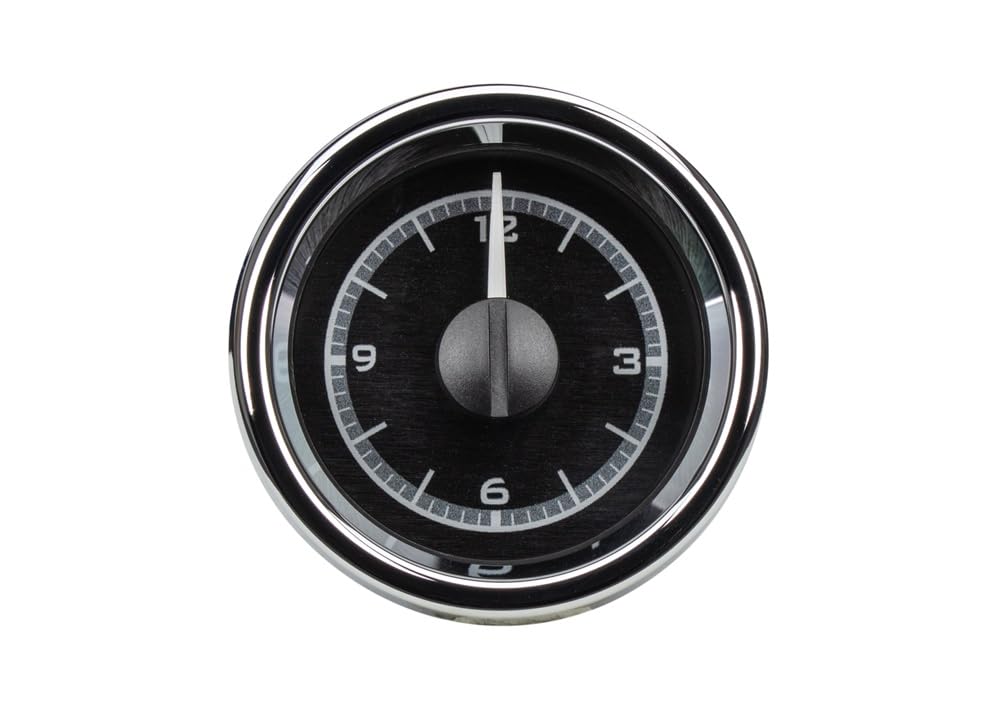

Traditional analog style clock face, with LED backlighting and lighted needles to match a VHX instrument system.
The VLC clocks will ONLY work alongside a VHX system.
They are not able to stand alone or work with Dakota Digital's VFD3 digital systems or any other series of gauges.

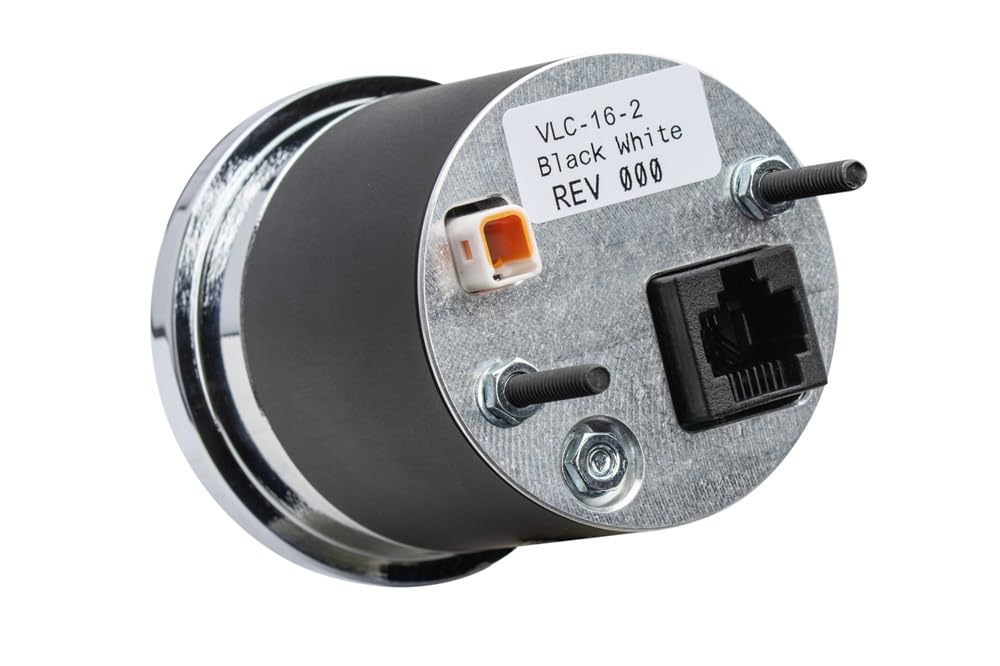

They simply plug into one of the CAT-5 network jacks on the VHX controller.
The new VLC’s will only display the current time.
The time is set through the VHX system.
Upon initial power-up, the clock needles quickly advance to sync with the VHX built-in clock.
The VLC clocks contain a separate constant power input harness on the backside, which will allow the clock to continue running while the key is off.
If this is not connected, the clock will just re-sync with the VHX system every time the key is cycled.
