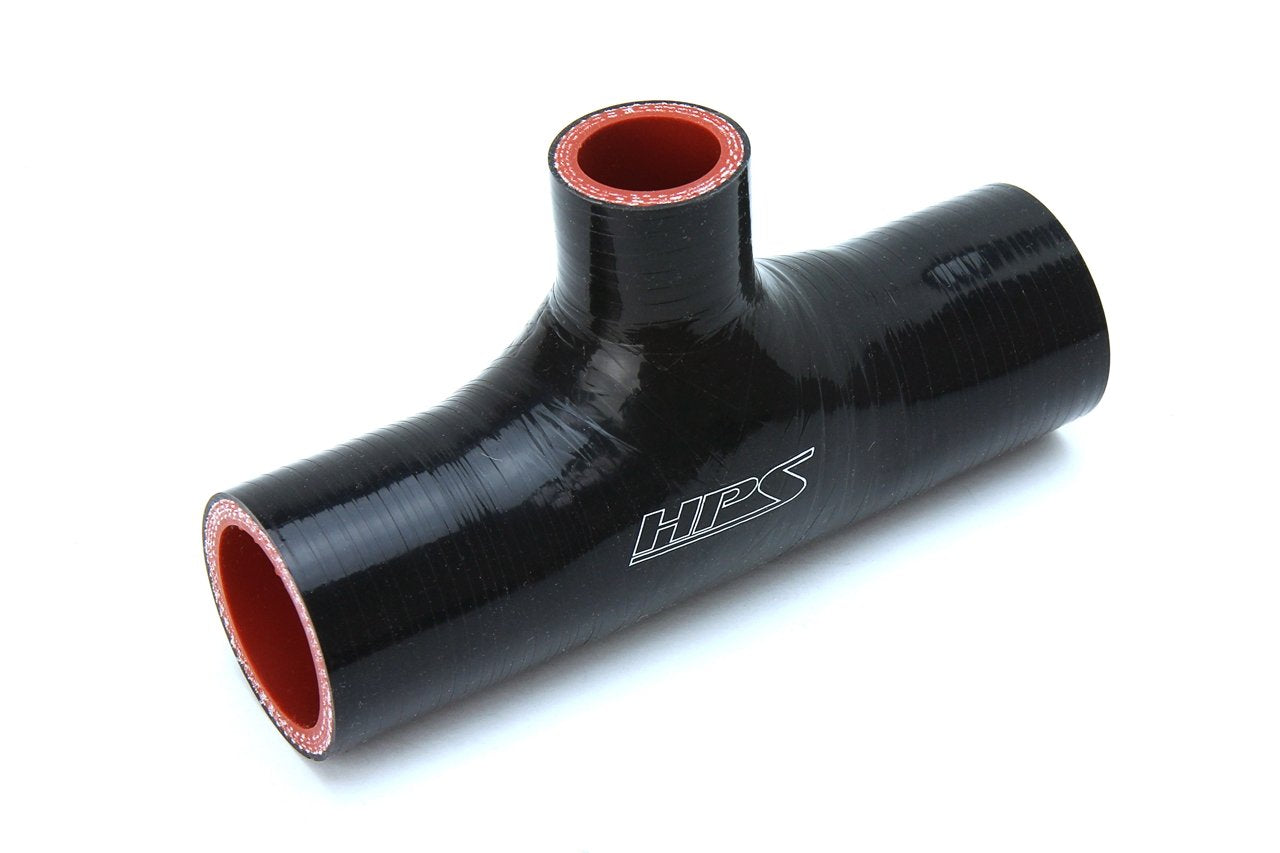

HPS 2-1/4" ID (57mm), 1" ID (25mm) branch, 6" ID (152mm) long high temp 4-ply reinforced black silicone coupler T hose adapter meets and exceeds SAEJ20 industry standards, ideal for heavy duty pressure connections and offers excellent resistance for high temperature applications.
The tee design is suitable for custom DIY fabrication projects such as adding a heater coolant line to an intake or radiator cooling system.
Technical Specification: Product Type: Silicone Coupler T Hose Adapter.
Temperature Range: -65 deg.
F to +350 deg.
F (177 deg.
C).
Reinforced Layer: 4-ply.

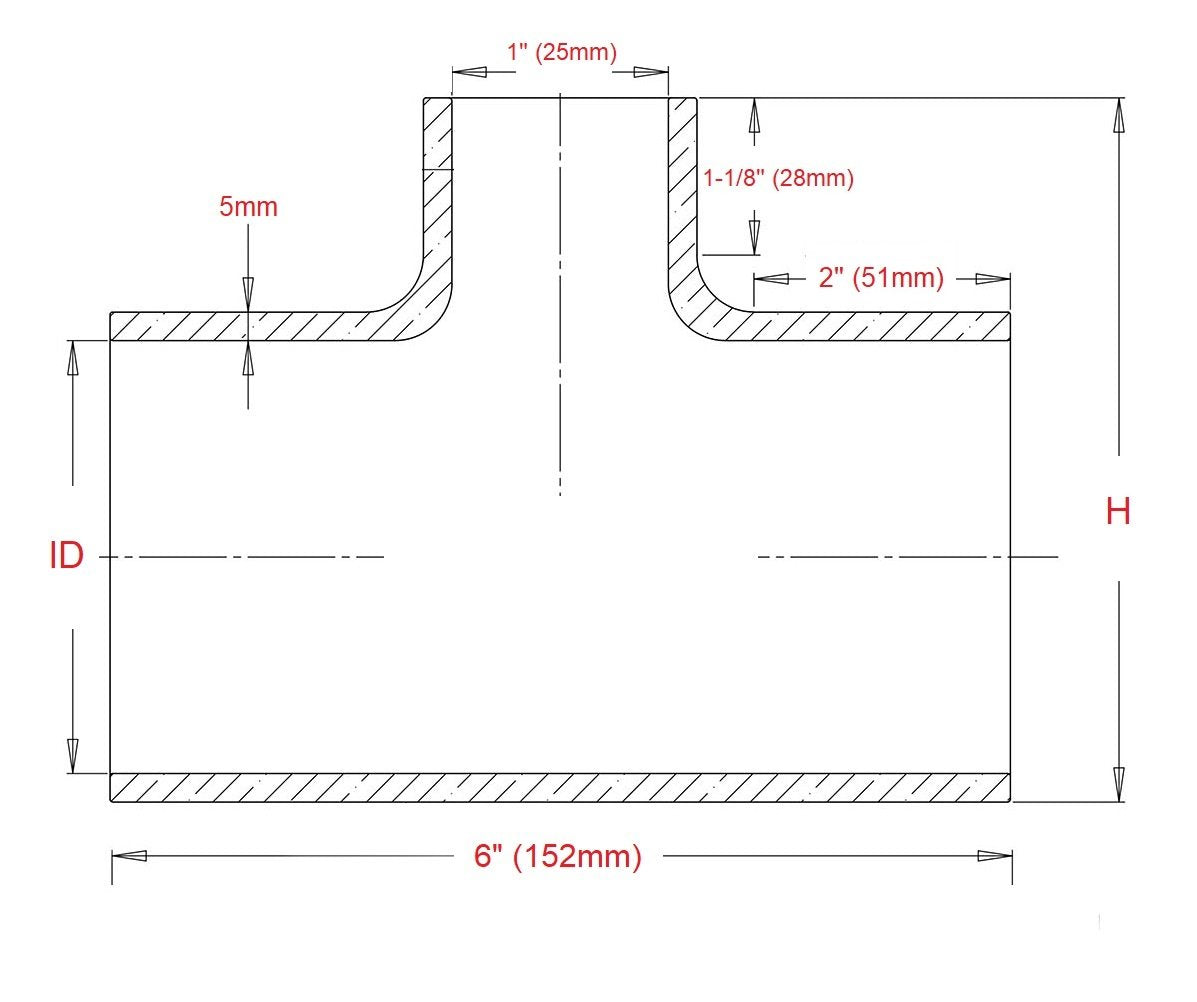

Hose Inside Diameter: 2.25" ID (57mm).
Hose Outside Diameter: 2.64" ID (67mm).
Branch Size: 1" ID (25mm) with 1-1/8" length.
Hose Overall Length: 6".
Overall Height (H): 4.14" ID (105mm).
Wall Thickness: 4.5mm (+/- 0.5mm).
Color: Black.
UV and ozone resistant.
Remark: Silicone hose is NOT compatible with fuel or oil.
