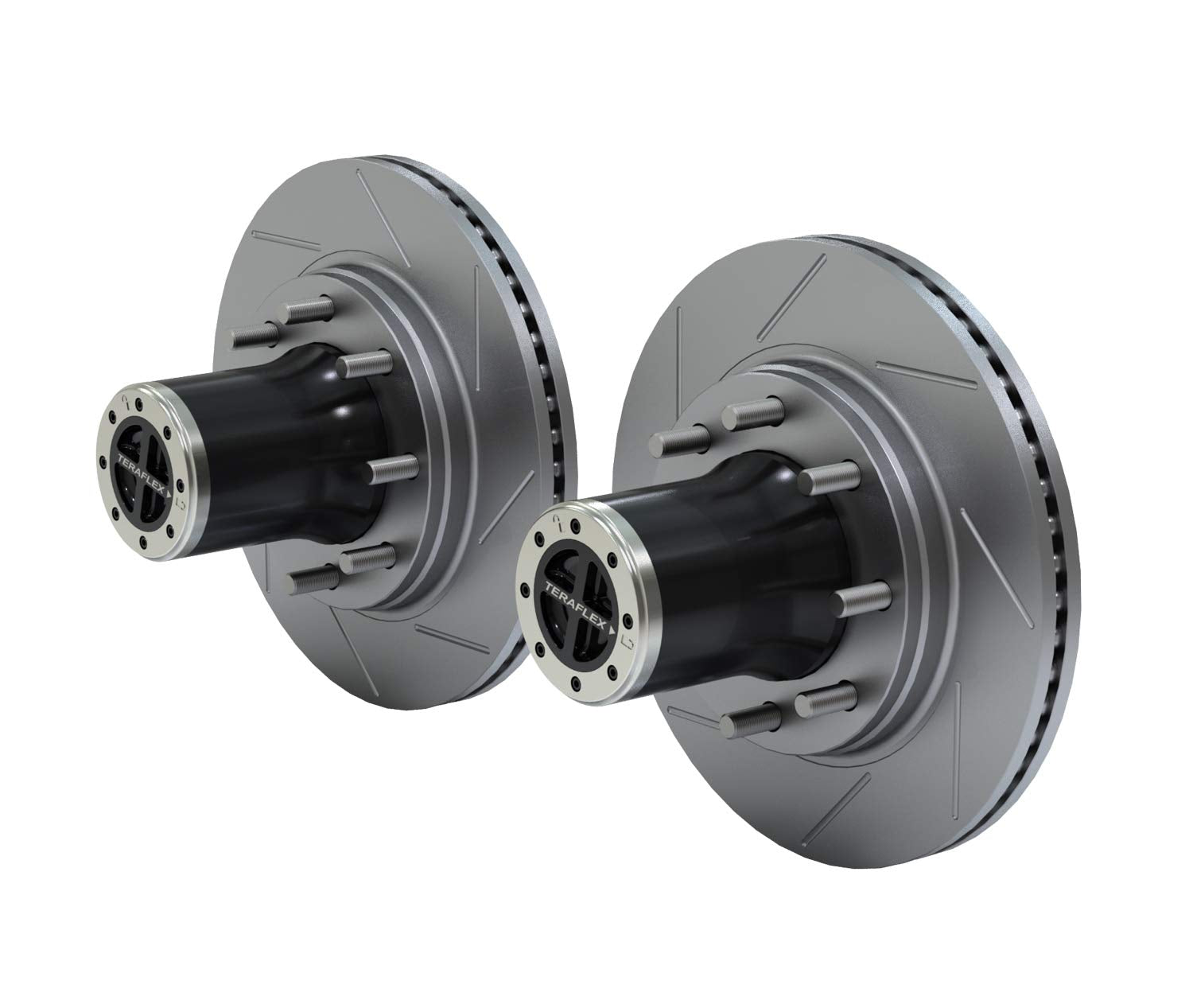

The JK front CRD60 8-lug conversion kit from TeraFlex is designed to convert JK CRD60 axles to 8-lug locking hub axles by incorporating a standard Dana 60 8 on 6.5 inch wheel bolt pattern.
Several major benefits over a unit bearing design are delivered by this conversion kit.
By increasing the distance between the inner and outer wheel bearings within the hub, bearing load is dramatically reduced.
A forged 4140 chromoly spindle accepts readily available low-cost industry standard bearings and seals.
The unique hub design from TeraFlex allows for OE wheel speed sensors to be completely sealed from mud, rock, and other damaging contaminants, ensuring clear constant data transmission to maintain all ABS and ESP functions.
The SlimLock hub kit features forged 4340 chromoly 35 spline stub shafts.
The hub design incorporates high surface area engagement with extreme durability.
This kit is perfect for flat towing by allowing the hubs to be set in the unlocked position during transport.
The full float conversion includes TeraFlex Performance slotted rotors and an anchor bracket.
Note: The Full Float kit may not work with all wheels.
Please verify fitment before installation.
On very early axles, GM brake systems may have been used; this style of CRD60 will require a Big Brake caliper upgrade (P/N 4303400) as well as an additional adapter (P/N 994920) for anchor bracket mounting 17 inch - minimum wheel size Sold As A Kit SKU: 3060000
