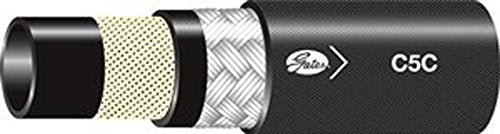

The Gates C5C Hydraulic Hose is recommended for hydraulic oils based on petroleum, glycol antifreeze compounds, engine lubricating oils, and air.
It meets requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F, including SAE 30R2, SAE 30R6, and SAE 30R7.
This hose is NOT recommended for applications involving vibration or pressure surges.
One braid of high-tensile carbon steel wire reinforces the hose over one braid of polyester.
The tube is -4 and -5: black, oil and heat resistant synthetic rubber (Neoprene - Type A); -6 through -40: (Nitrile - Type C).
The recommended coupling for this hose is C5 Field Attachable Couplings.
The temperature ranges are as follows: Under SAE 100R5 (hydraulic) conditions -40°F to +212°F (-40°C to +100°C).
For all-purpose fleet applications (hot lube oil lines), the range is -40°F to +300°F (-40°C to +149°C).
Air applications can reach +160°F (+71°C) only.
Avoid continuous use at maximum temperature while concurrently at maximum working pressures.
