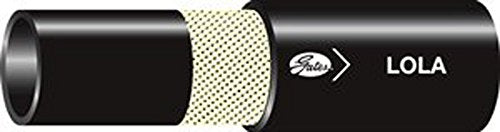

The Gates Hydraulic LOL Plus Lock-On Hose is recommended for hydraulic oils, petroleum-base, glycol antifreeze compounds, engine lubricating oils, and air.
It meets SAE 30R2, SAE 30R6, and SAE 30R7 requirements for fuel and B20 biodiesel fuel transfer applications to +125°F.
The hose is NOT recommended for applications involving vibration or pressure surge.
One fiber braid serves as the reinforcement.
The tube is black, oil resistant, synthetic rubber that is highly resistant to oil and heat (Nitrile - Type C).
The coupling recommendation for this hose includes the Field Attachable LOC Couplings, using a clamp over the beaded nipple, and GLP Couplings (except -3).
The temperature ranges are as follows: -40°F to +250°F (-40°C to +121°C).
For air, the range is -40°F to +160°F (-40°C to +71°C).
