The Gates C5C Hydraulic Hose is recommended for hydraulic oils, engine lubricating oils, glycol antifreeze compounds, and air.
It meets SAE 30R2, SAE 30R6, and SAE 30R7 requirements for fuel and B20 biodiesel fuel transfer applications up to +125°F.
This hose is NOT recommended for applications involving pressure surge or vibration.

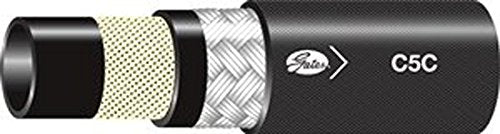

The reinforcement consists of one braid of high-tensile carbon steel wire over one braid of polyester.
The tube is -4 and -5: black, oil and heat resistant synthetic rubber (Neoprene - Type A); -6 through -40: (Nitrile - Type C).
The coupling recommendation for this hose is C5 Field Attachable Couplings.
The temperature ranges are as follows: Under SAE 100R5 (hydraulic) conditions -40°F to +212°F (-40°C to +100°C).
All-purpose fleet application (hot lube oil lines) -40°F to +300°F (-40°C to +149°C).
Air to +160°F (+71°C) only.
Avoid continuous use at maximum temperature concurrent with maximum working pressures.
