Carli Suspension CS-AAMTRUSS-14 14-23 4X4 Ram 2500/3500 Wiy Builder Axle Truss

$529.04 USD

✓ No hidden fees — taxes included in the price & Free Shipping.

✓
Get 5% OFF Today
Use this coupon at checkout.
TRY5
Brand : Carli Suspension
Carli Suspension CS-AAMTRUSS-14 is designed for 14-23 Ram 2500/3500 4X4 vehicles.
Out of stock
Quantity :
Top Brands. Best Prices. Fast Shipping.

Discover quality parts and accessories for every adventure

Shop now before stocks run out — smart shoppers move fast!

Explore Now

Product Comparison We Made Easy For You

Carli Suspension CS-AAMTRUSS-14 14-23 4X4 Ram 2500/3500 Wiy Builder Axle Truss
Carli Suspension CS-AAMTRUSS-14 14-23 4X4 Ram 2500/3500 Wiy Builder Axle Truss
View Detail
Type
Consoles & Organizers
Title
Carli Suspension CS-AAMTRUSS-14 14-23 4X4 Ram 2500/3500 Wiy Builder Axle Truss
Price
$529.04 USD
Vendor
Carli Suspension
Description

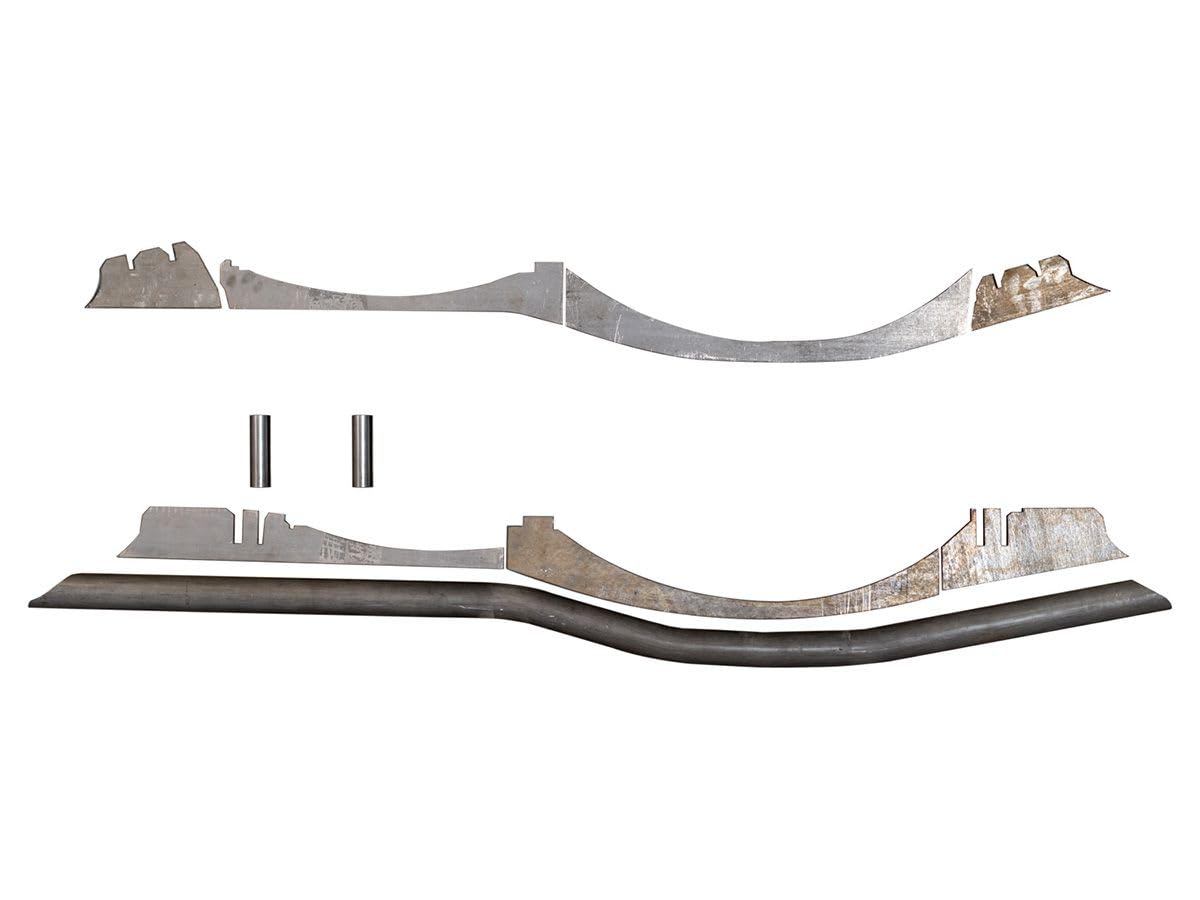

The axle on the Ram 2500/3500 from 2014 onward is a whole different animal compared to the previous generation.The large pumpkin, CAD bracket, and outer C’s do not make for an easy welding job.That said, we’ve designed a truss kit that runs a 1.75″ Diameter 0.120″ wall thickness tube that’s CNC Cut/Bent to match the knuckle profiles while skidding the pumpkin.Included with the truss kit are two 1″ OD stand-off tubes that bridge the distance from the truss tube to the main axle tube on the long side (passenger’s side) and plates to enclose the entire truss.Lastly, we include “Upper C” Gussets to plate the outer C upper to the bottom of the coil buckets.

More about this item : Carli Suspension CS-AAMTRUSS-14 14-23 4X4 Ram 2500/3500 Wiy Builder Axle Truss

The axle on the Ram 2500/3500 from 2014 onward is a whole different animal compared to the previous generation.

The large pumpkin, CAD bracket, and outer C’s do not make for an easy welding job.

That said, we’ve designed a truss kit that runs a 1.75″ Diameter 0.120″ wall thickness tube that’s CNC Cut/Bent to match the knuckle profiles while skidding the pumpkin.

Included with the truss kit are two 1″ OD stand-off tubes that bridge the distance from the truss tube to the main axle tube on the long side (passenger’s side) and plates to enclose the entire truss.

Lastly, we include “Upper C” Gussets to plate the outer C upper to the bottom of the coil buckets.

Carli Suspension CS-AAMTRUSS-14 14-23 4X4 Ram 2500/3500 Wiy Builder Axle Truss
Key Features
  • MASSIVE axle support keeps the axle true no matter the beating
  • 1.75″ OD .0120″ Wall Main Tube
  • 1″ OD Main Tube Supports
  • 0.250″ CNC Cut Finishing Plates
  • WELD-ON Fabrication Part
  • Includes Upper C Gussets for added support
Technical Specifications
  • Length : 59.0 lb
  • Width : 7.0 lb
  • Height : 3.0 lb
  • Weight : 44.0 lb
Product Identifiers
  • ASIN B0DZCMP2NS
  • UPC: 883584138150
Shipping Information
  • Ships From : United States
  • Brand : Carli Suspension

Frequently Asked Questions About : Carli Suspension CS-AAMTRUSS-14 14-23 4X4 Ram 2500/3500 Wiy Builder Axle Truss

01 What is the diameter of the main tube?

The main tube has a diameter of 1.75″.

02 What vehicles is the truss kit designed for?

The truss kit is designed for 14-23 Ram 2500/3500 4X4 vehicles.

03 What additional components are included with the truss kit?

The truss kit includes two 1″ OD stand-off tubes and Upper C Gussets.
