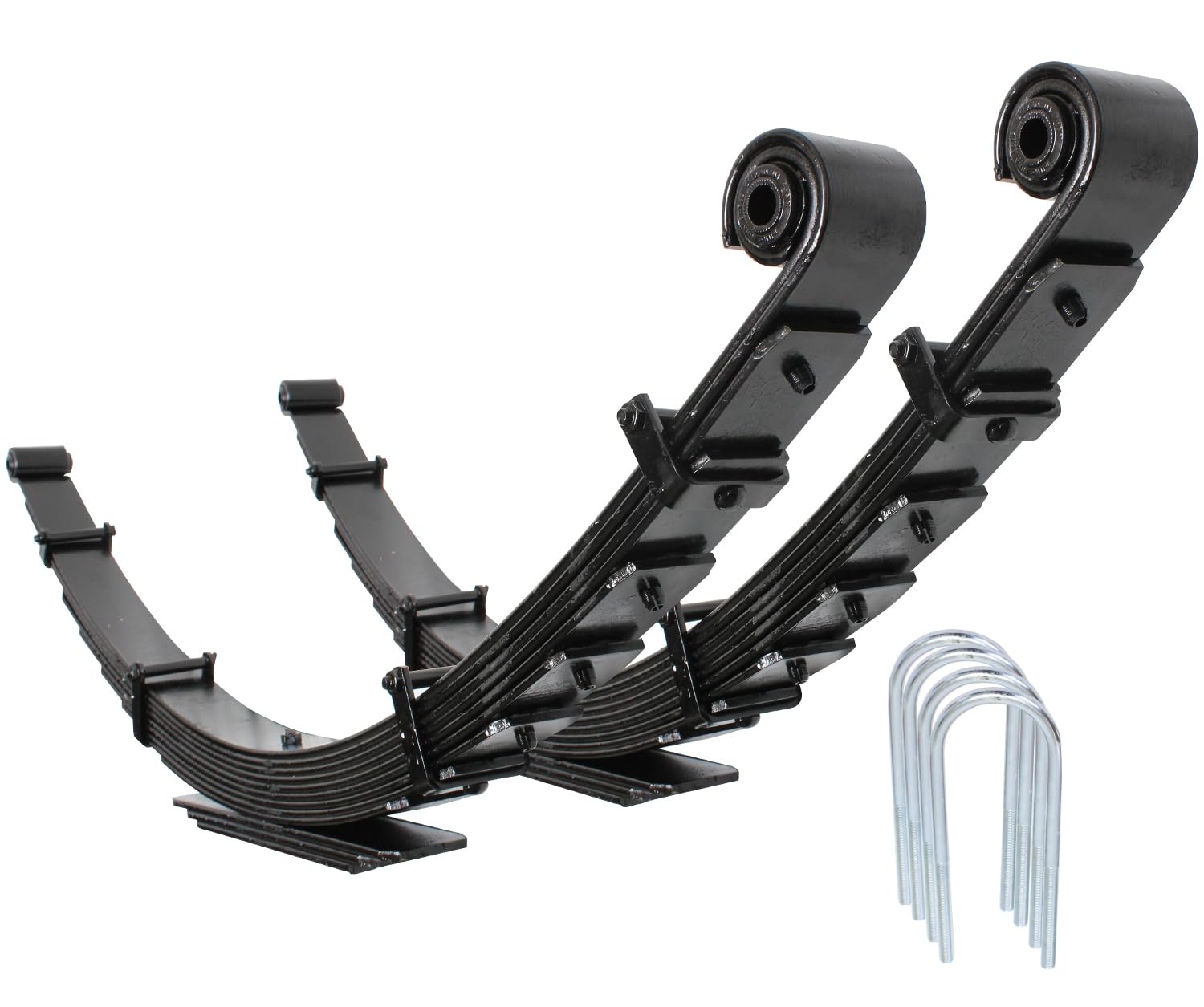

In conjunction with Deaver Leaf Springs, Carli Suspension designed a leaf spring pack to match our 2.5″ and 4.5″ Suspension Lifts while providing a more predictable and supple ride with only a slight reduction from a standard 3/4-ton load capacity.
The factory leaf spring packs have 2-4 heavy main springs and an immobile lower overload, making for a jarring ride; replacing them with our 9-Leaf main pack and 3-Leaf overload provides much more spring rate progression.
This results in a softer unloaded ride, massive suspension travel increase, and impressive capacity as the rear end compresses engaging all the springs.
The Carli Suspension Super Duty Full Spring Pack is designed and built to our specifications, supporting up to 15″ of wheel travel.
The center-pin is relocated to accommodate (up to) 38 inch tires, with 37″ recommended, and levels the rear perfectly to match our 4.5″ front suspension systems, respectively.
This spring pack delivers smoother suspension cycling in all situations: highway, off road, and towing.
