The LED Driving Light Kit for the 2013-2018 Dodge Ram with Standard bumper from Diode Dynamics allows for mounting a pair of SS6 Stage Series 6 Inch Light Bars in the bumper openings.
These brackets were designed specifically for the application and are CAD-designed to install using factory mounting points.
No cutting or drilling is required!
This kit is not just for off-road use; it is legal for on-road use as driving or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).
Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality with compact size, custom-engineered TIR optics, and a useful beam pattern all in a highly durable package.
Our light bars shine light in a highly-functional and useful beam pattern that is much more focused than older LEDs on the market.
All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern.
No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Driving pattern was designed to supplement high beams.
Rather than a simple spot pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Wide pattern provides an extremely wide field of view without wasting any light in the sky above and provides a 100Wx8H degree spread of light.
It was designed to supplement fog lights and is perfect for driving in inclement weather.
After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting.
Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States for high quality and fast time-to-market of the newest and brightest LED technologies.
We pride ourselves on offering only quality LED products that will exceed expectations.
Please contact us if you'd like to discuss your lighting project!
Features Bar Type: Two (2) Single Row Straight Bar Length: 6 Inch Lens Color: Clear Light Pattern: Driving Lux: 550 Brackets Included: Yes Direct fitment on 2013-2018 Dodge Ram Standard.
Street-legal output as Driving or Fog lights (Please check your local laws and regulations for aiming, installation, and applicability).
Dual output wiring harness included.
Highly durable powder-coated steel construction.
Utilizes existing mounting points and hardware for a simple installation.
CAD-designed for perfect fitment.

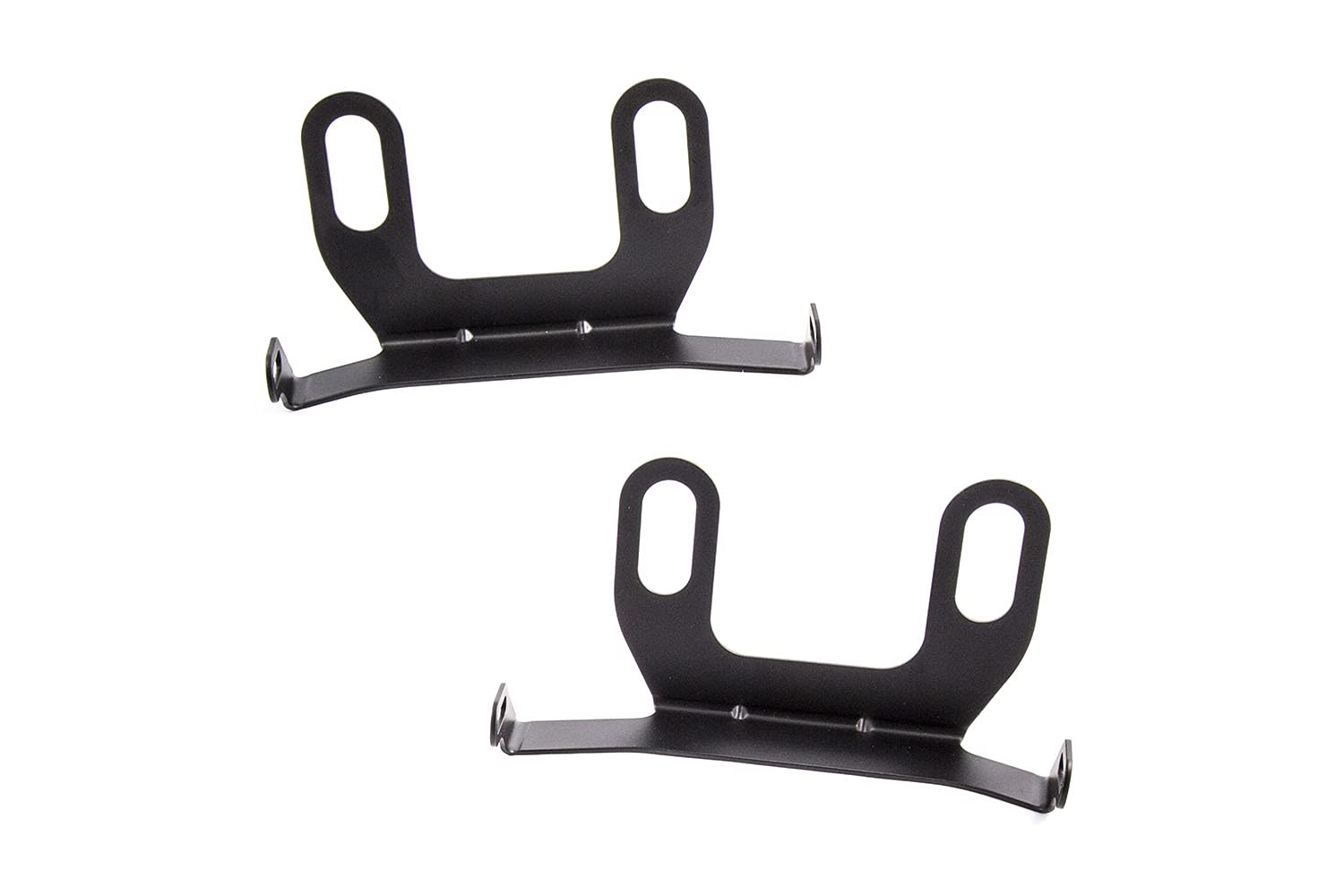

What's Included In the Box: Two (2) Application-specific heavy-duty steel brackets for installation on 2013-2018 Ram Standard, Two (2) SS6 Stage Series 6 Inch Light Bars, One (1) Dual Output Harness with toggle switch, All Necessary Hardware, Installation Guide.
Quantity: Pair (Left and Right Side).
8 year 100 percent Satisfaction Fitment.
This kit was designed for the 2013-2018 Ram with the Standard bumper.
Make: Ram Model: 1500/2500/3500 Years: 2013, 2014, 2015, 2016, 2017, 2018.
Electrical Compatibility: No electrical issues (tested and confirmed).
Specifications: Measured Lumens: 2280, Intensity (cd): 47,000, Color Temp (CCT): 2000K-6000K, Beam Angle: Wide 100 Degree x8 Degree, Driving 20 Degree x8 Degree, Power (watts): 26,6, Operating Voltage: 9-16V, Current (amps at 13.2V): 1.9, Bracket Thickness: 14 ga, Polarity: Polarity Specific, Operating Temperature: -40C to 85C (-40F to 185F), LED Emitter: Luxeon Z ES, Connector(s): Deutsch DT Input, Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Cooling: Passive heatsink, Intrusion Ratings: IP68 Waterproof.
