Upgrade time!
The Ford F-150 factory headlights have LED accents in the premium-model that illuminate in amber color for the parking light and DRL.
With replacement LED boards from Diode Dynamics, you can upgrade this look by making those accents light up as white parking light and an amber turn signal.

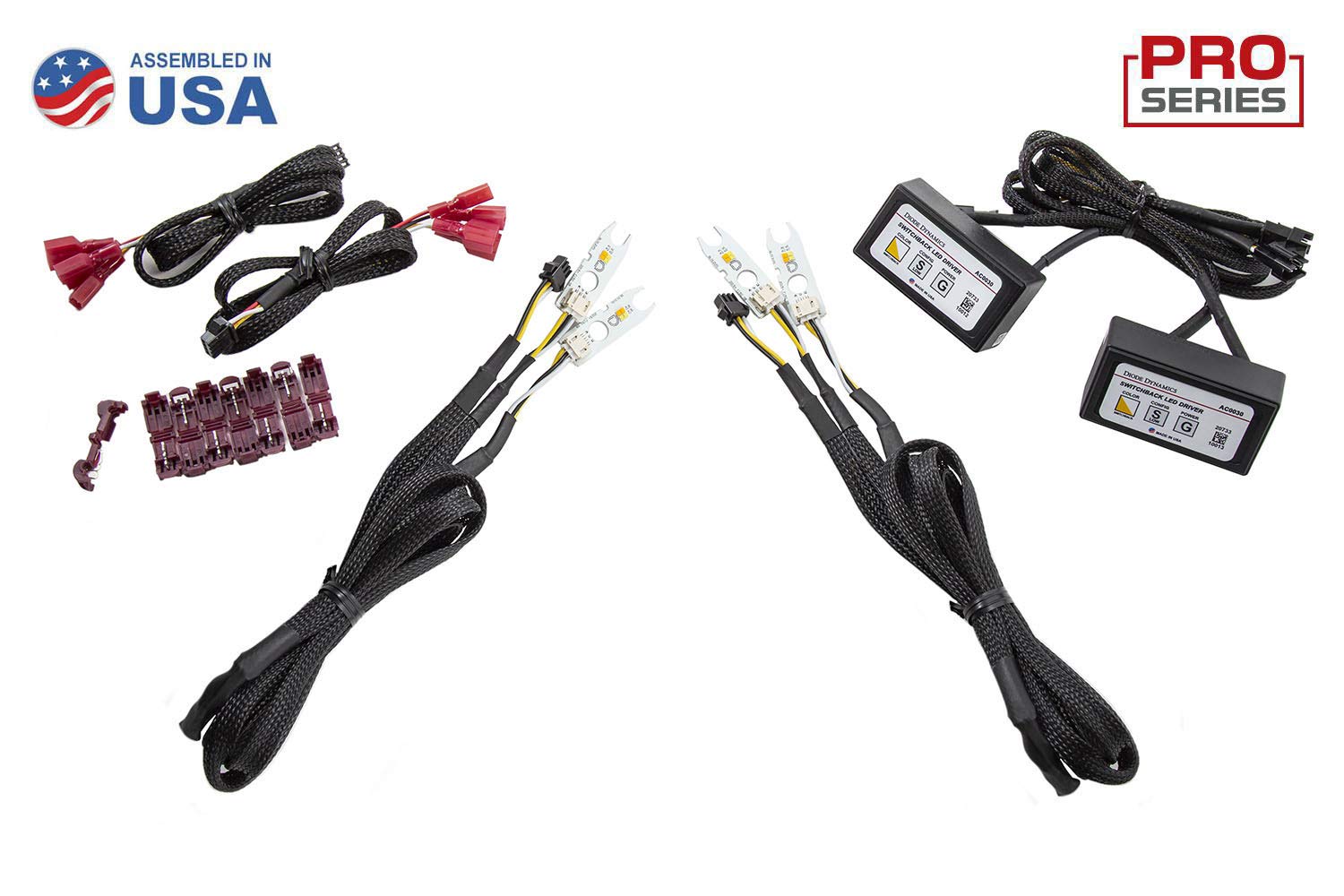

Your order includes two sets of LED boards, one for each side of the vehicle.
Switchback.

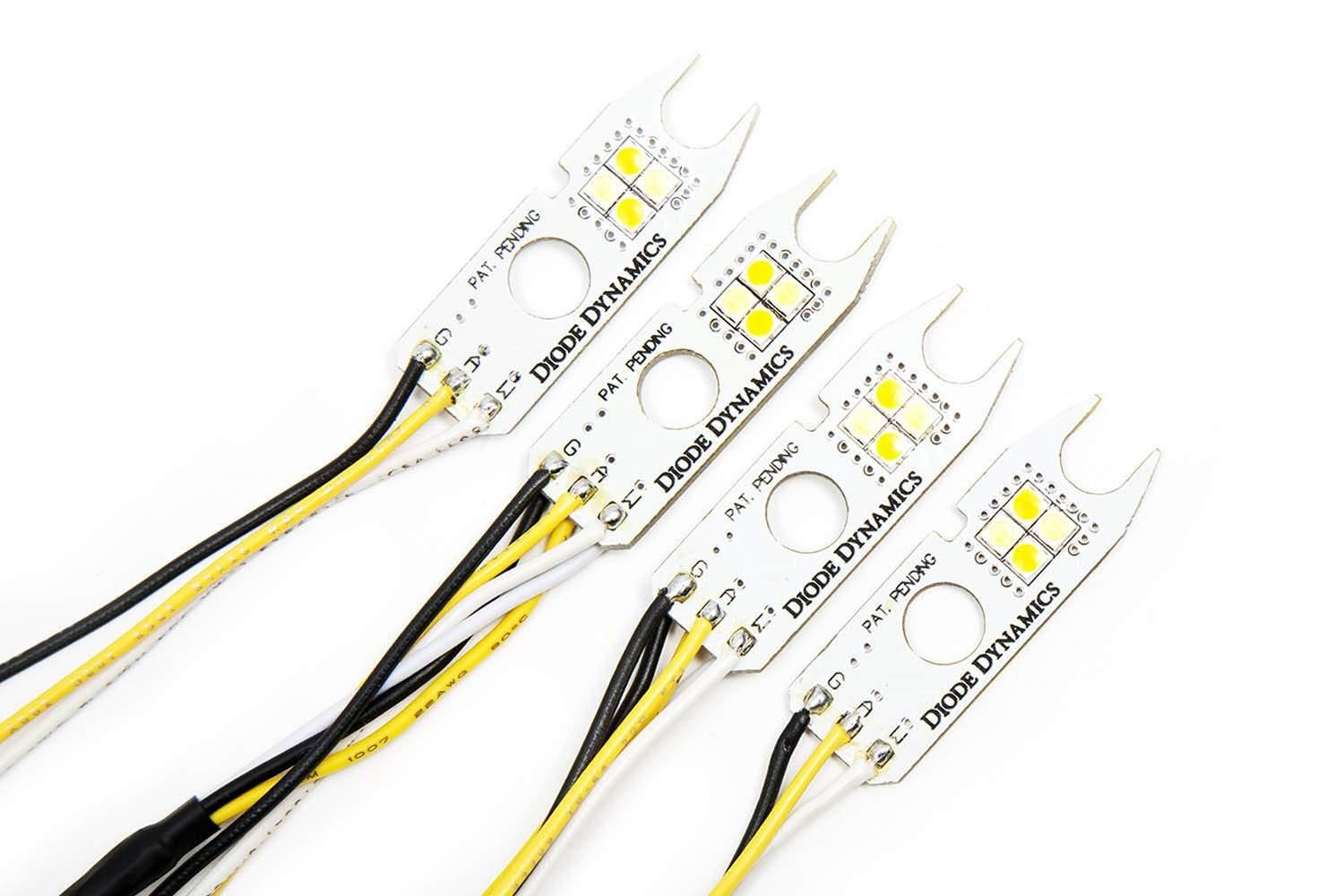

These LED boards are a direct replacement for the factory ones, but have double the number of LEDs.
They illuminate white for your parking lights and DRLs, with a dimmed power level at night.
Anytime you hit your turn signal, they light up in a brilliant amber that is even brighter to indicate signaling.
While the amber is extremely bright, disabling your factory turn signal is not recommended.
OEM-grade design.
Diode Dynamics works directly from OEM data and uses a 3D scanner to develop precise replacement boards with identical mounting points and shape.
Just remove the original boards, and ours will fit directly in place with correct alignment.
You'll also see OEM design features, such as high-intensity automotive emitters, wire connectors, and serial numbers for quality assurance.
Works correctly, with no surprises.
In 2014, Diode Dynamics was the first to make replacement circuit boards.
The goal is to make them work just like the factory system - except for added functionality!
That means connecting to the factory DRL and running light signals for proper operation.
This isn't as easy as it sounds - on the Ford F-150, all functions are powered through the vehicle's computer, rather than traditional relays.
If the vehicle doesn't see the power draw it expects, it disables the signal.
Many competitors skip the factory signals, instructing customers to connect power to the battery and manually turn the LEDs off and on every time they're used.
Not ideal!
To provide an upgrade without disabling the factory functions, our engineers spent hours in our test garage with a F-150 to tune the drivers correctly.
They pull enough power to light up the boards brightly, with the factory functions, but do not cause any errors with the vehicle's computer.
The included instructions show you exactly which wires to connect to, for no guesswork.
Everything works perfectly, with no errors: there's no need to sacrifice factory function with Diode Dynamics products!
Optically correct.
Unlike strips or halos, replacement boards work in conjunction with factory optics in your headlight.
Since the factory setup uses only one white chip, it can be difficult to align the light properly from both replacement emitters.
To save cost, other brands often use low-cost generic chips, which cannot focus light properly.
This creates odd appearances, as some sections are brighter than others.
Diode Dynamics uses high-intensity automotive emitters to direct light properly to the factory optic, and all designs are tested a number of times with small adjustments to ensure the setup is optimized.
Even a 0.1mm change can make a big difference, and Diode Dynamics products are carefully tuned for maximum performance.
Reliable operation.
To drive the high-power LEDs safely, a constant-current, waterproof, inductive driver is included for each set.
These drivers were designed to last the life of your vehicle and have been subjected to advanced transient voltage testing.
These tests replicate the electrical wear and tear experienced in automotive environments every time your alternator starts and stops, which is what kills less robust electronics over time.
The entire kit is also tested for long-term operation from -40 to 185 degrees F, vibration, and corrosion.
All of these tests are completed to SAE/DOT standards, just like the factory components.
Experience.
After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting.
Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies.
We pride ourselves in offering only quality LED products that will exceed your expectations.
Features Computer-designed LED boards for 2015-2017 Ford F-150 headlights.
Two Epistar LEDs in place of each original white chip.
A huge increase in brightness, even in direct sunlight.
Adds brighter running light and amber turn signal.
Engineered and manufactured in the USA.
Specifications Operating Voltage: 9-16V Operating Temperature: -40C to 85C (-40F to 185F) Connector(s): JST Inline Connectors, T-Tap Inputs Driver Features: External, Waterproof, Linear Regulated Driver Dimensions: 2.5 inch x 1.38 inch x 0.88 inch Materials: Aluminum PCB What's Included In the Box: Two (2) sets of LED boards, left and right Two (2) waterproof drivers Two (2) input wire pigtails with T-taps Installation guide Quantity: Pair (Left and Right Side) : 3 year Return Policy: 30-day Return with no
