A set dim level 12V PWM dimmer, designed for automotive use with dimming on the positive channel.
Most dimmers operate by modulating the negative side, making remote use in a common-ground automotive environment difficult.
The total current capacity is 2 amps, suitable for LED arrays, angel eye rings, LED bulbs, or other LED components.
Operating Voltage ranges from 9-16V.
A unique feature is included: instead of a simple input and output, this module has two inputs, DIM and HIGH.
When a signal powers the DIM pin, the module outputs the PWM-dimmed signal at 50 percent brightness.
When another signal connects to HIGH, the module passes full power through for full brightness.
Each input is protected against reverse current flow, preventing interference.
This feature makes the module ideal for LED tail lamps or turn signals.
It can be used with any LED ring, bulb, or array.
For example, connect the positive 12V wire for any LED to the OUTPUT of this module.
Connect running light power to the DIM wire and turn signal power to the HIGH wire.
The module handles the rest!
Your LED will function as a dimmed running light and light up at full power when the turn signal is activated.
Whether it's a running and brake light signal or a running and turn signal, the module switches between low and high brightness levels perfectly for you at an adjustable brightness level.
Features Easily accomplish a low/dimmed level and a high power signal on nearly any automotive LED device.
Made in USA.

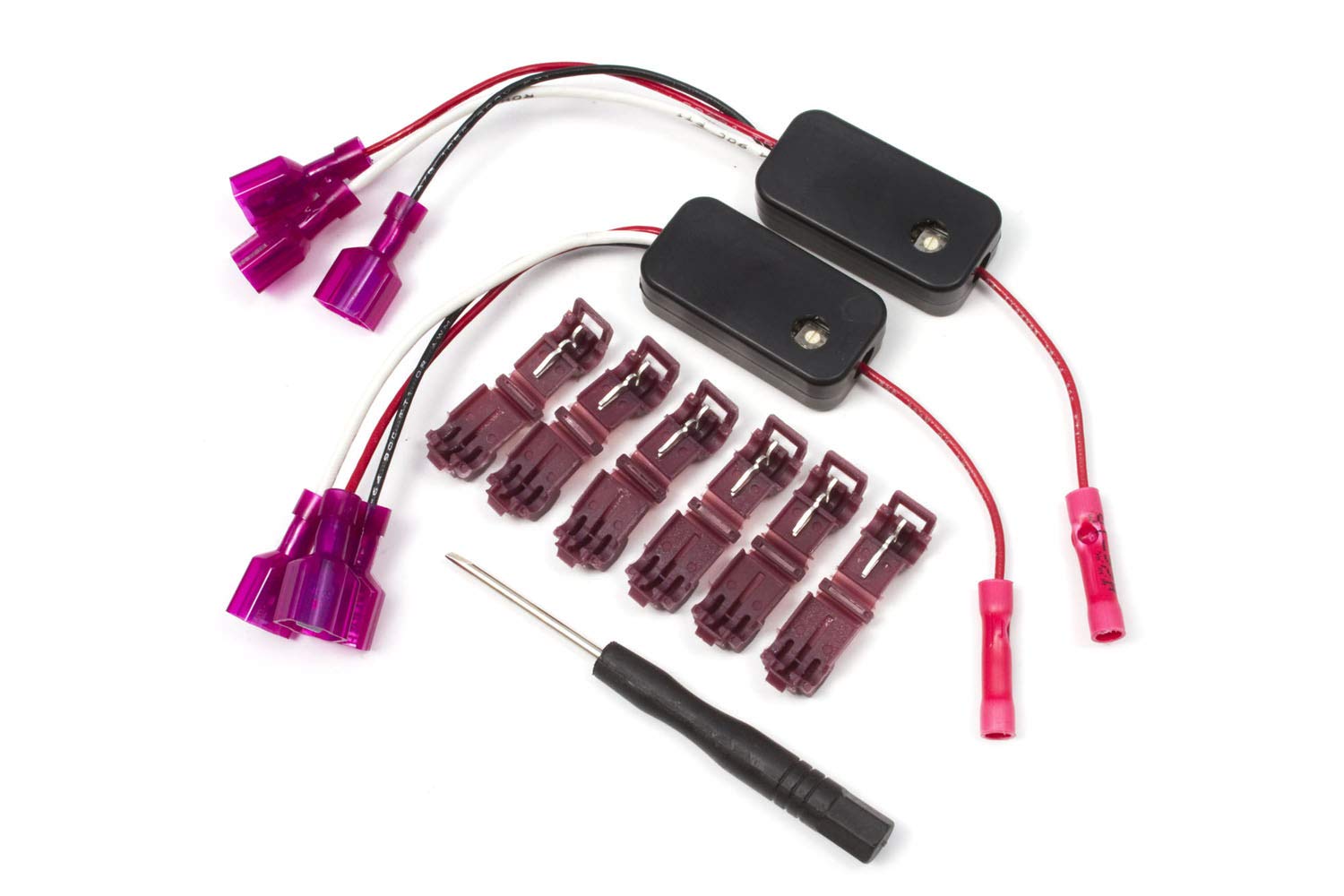

What's Included In the Box: Two (2) dimmer modules with preinstalled terminals, six (6) T-taps, one (1) mini screwdriver.
Quantity: Two (2).
Return Policy: 30-day Return with no restocking fee, 100 percent Satisfaction.
Specifications Maximum Current: 2A.
Maximum Voltage: 16V.
Minimum Voltage: 8V.
Forward Voltage: < 1.5V.
Operating Temperature: -40 Degrees Celsius - 95 Degrees Celsius.
Operating Voltage: 9-16V.
Operating Temperature: No Connector(s): T-Tap Inputs.
Weight (lb): 0.1250.
