HD Halo Technology These HD LED semi-flex strips have been designed from the ground-up to be the brightest and most reliable strips physically possible.
Each strip is populated with a large number of high-density (HD) LEDs which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on.
When off, the diffusing gel hides the chips, resulting in a clean OEM appearance.
Sizing All sizes are listed by total length in millimeters.
Strips can be shortened by up to 20 percent but no less!
Width is 8mm and total height is 4.5mm.
Mounting The strips must be custom-mounted in position using adhesive or beading wire with the integrated mounting tabs.
If you wish, mounting tabs may be removed with a pair of clippers or basic sanding.
The strips can be modified if needed to fit certain applications.
Up to 20 percent of the strip can be removed using side-cutting snips and still remain fully functional.
Click here to learn more Cutting HD Halos and Strip video.
Wiring All wires have a durable braided wire covering.
The LED has a 20-inch wire with female JST type connector.
This connector may be de-pinned in order to run wires through small holes during installation.
Both the input and output wire on the driver are also 20 inches each.
A pigtail is included that is also 20 inches with male spade connectors on the end to connect to factory wiring with included T-taps.
You will have plenty of room to run wires anywhere you'd like.
PWM Control Aside from the high brightness and perfectly uniform output, one great feature of these strips is the integrated multifunction PWM dimming control.
The drivers have four wires to be connected to any 12V signals as follows: White White Low Power 50 percent brightness, Red White High Power 100 percent brightness, Yellow Amber Signal double brightness flashing (dims if powered more than two seconds), Black Ground.
All input wires activate the strip at different brightness levels.
All HD LED strips ship with low priority drivers.
This means that if both low and high power inputs are powered, the LED will light up with low power level.
This is convenient for connecting the red wire to a parking light or DRL signal for use during the day as a high-power DRL.
Then if the white wire is connected to the headlamp power, they will dim down at night.
If the yellow wire is powered at any time, the strip will light up at 200 percent brightness momentarily intended for signalling (dims automatically if powered for more than two seconds).
This entire setup allows you to connect the strip directly as a multifunction lamp without any external controllers needed.
Of course, this is completely optional.
You can just use one or two of the input wires if you'd like.
Experience After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting.
Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States for high quality and fast time-to-market of the newest and brightest LED technologies.
We pride ourselves in offering only quality LED products that will exceed your expectations.

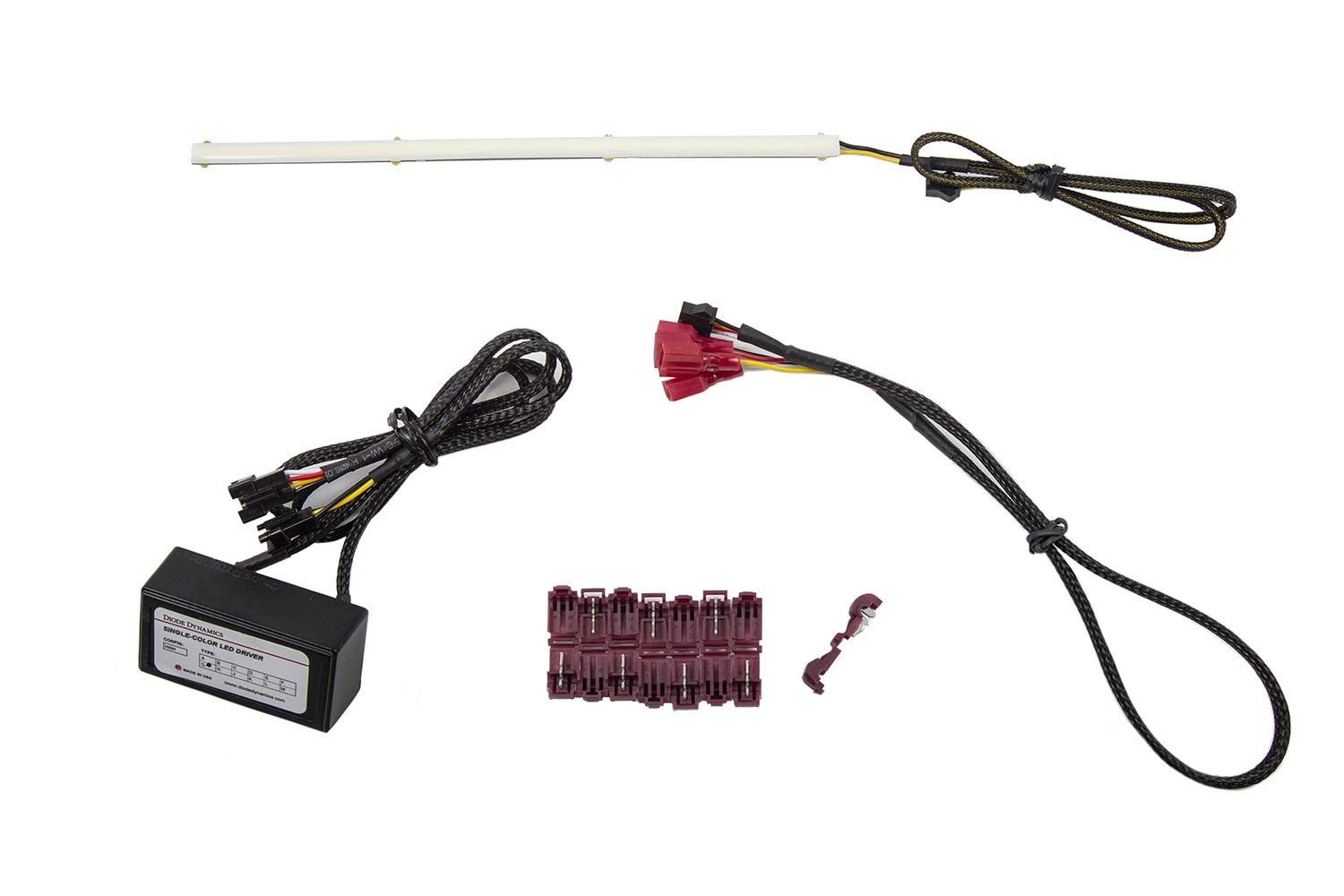

Features Color Red Length 6 inch Proprietary durable phosphor coating for uniform solid appearance Multi-function PWM drivers fully waterproof featuring low power high power and turn signal modes Extremely bright high-density LEDs that are visible even in direct sunlight Integrated mounting tabs for easy installation Made in USA In the Box One (1) LED semi-flex strip One (1) waterproof driver One (1) input wire pigtail Four (4) T-tap connectors Installation guide Quantity One (1) 3 year 100 percent Satisfaction Fitment These strips are intended for installation inside a sealed lamp housing.
Specifications Operating Voltage 9-16V Operating Temperature -40C to 85C (-40F to 185F) Connector(s) JST Inline Connectors T-Tap Inputs Driver Dimensions 2.5 x 1.38 x 0.88 Inch.
