HDHalo Technology.

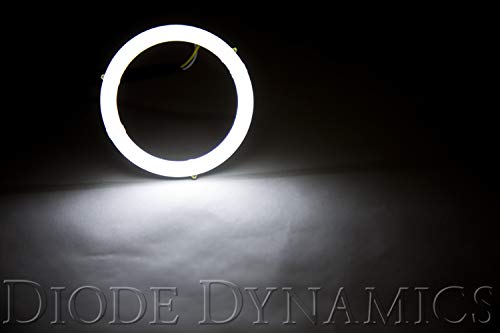

Designed from the ground-up, these HD LED halo rings are the brightest and most reliable halos physically possible.
Each halo is populated with a large number of high-density (HD) LEDs, which are coated by a diffusing gel, resulting in a perfectly uniform light when turned on.
When off, the chips are hidden by the diffusing gel, resulting in a clean, OEM appearance.
Sizing: All sizes are listed by outside diameter in millimeters.
Width is 8mm, so the inside diameter is 16mm less than the outside diameter.
Total height is 4.5mm.
Mounting: The halos must be custom-mounted in position using adhesive or beading wire with the integrated mounting tabs.
If desired, mounting tabs may be removed with a pair of clippers or basic sanding.
The halos can be modified if needed to fit certain applications.
Up to 20 percent of the halo can be removed using side-cutting snips and still remain fully functional.
Wiring: All wires have a durable braided wire covering.
The LED has a 20-inch wire with a female JST type connector.
This connector may be de-pinned to run wires through small holes during installation.
Both the input and output wire on the driver are also 20 inches each.
A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps.
There is ample room to run wires anywhere desired.
PWM Control: Aside from the high brightness and perfectly uniform output, one great feature of these halos is the integrated multifunction PWM dimming control.
The drivers have four wires to be connected to any 12V signals as follows: White: White Low Power, 50 percent brightness Red: White High Power, 100 percent brightness Yellow: Signal, double brightness, flashing (dims if powered more than two seconds) Black: Ground All input wires activate the halos at different brightness levels.
All amber-colored halos ship with low priority drivers.
This means that if both low and high power inputs are powered, the LED will light up with low power level.
This is convenient for connecting the red wire to a parking light or DRL signal for use during the day as a high-power DRL.
Then, if the white wire is connected to the headlamp power, they will dim down at night.
If the yellow wire is powered at any time, the halo will light up at 200 percent brightness momentarily, intended for signalling (dims automatically if powered for more than two seconds).
This entire setup allows for direct connection of the halo as a multifunction lamp, without any external controllers needed.
Of course, this is completely optional.
You can just use one or two of the input wires if desired.
Experience: After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting.
Unlike every other LED distributor, products are manufactured and engineered in the United States for high quality and fast time-to-market of the newest and brightest LED technologies.
Only quality LED products are offered, that will exceed expectations.
Please contact if you'd like to discuss your lighting project!
Features: Proprietary durable phosphor coating for uniform solid appearance Multi-function PWM drivers, fully waterproof, featuring low power, high power, and turn signal modes Extremely bright, high-density LEDs that are visible even in direct sunlight Integrated mounting tabs for easy installation Made in USA What's Included In the Box: 80mm White Single One (1) LED halo rings One (1) waterproof drivers One (1) input wire pigtails Four (4) T-tap connectors Installation guide Quantity: One (1) : 3 year 100 percent Satisfaction Specifications Operating Voltage: 9-16V Operating Temperature: -40C to 85C (-40F to 185F) Connector(s): JST Inline Connectors, T-Tap Inputs Driver Dimensions: 2.5 x 1.38 x 0.88 inch
