Fitment is perfect.

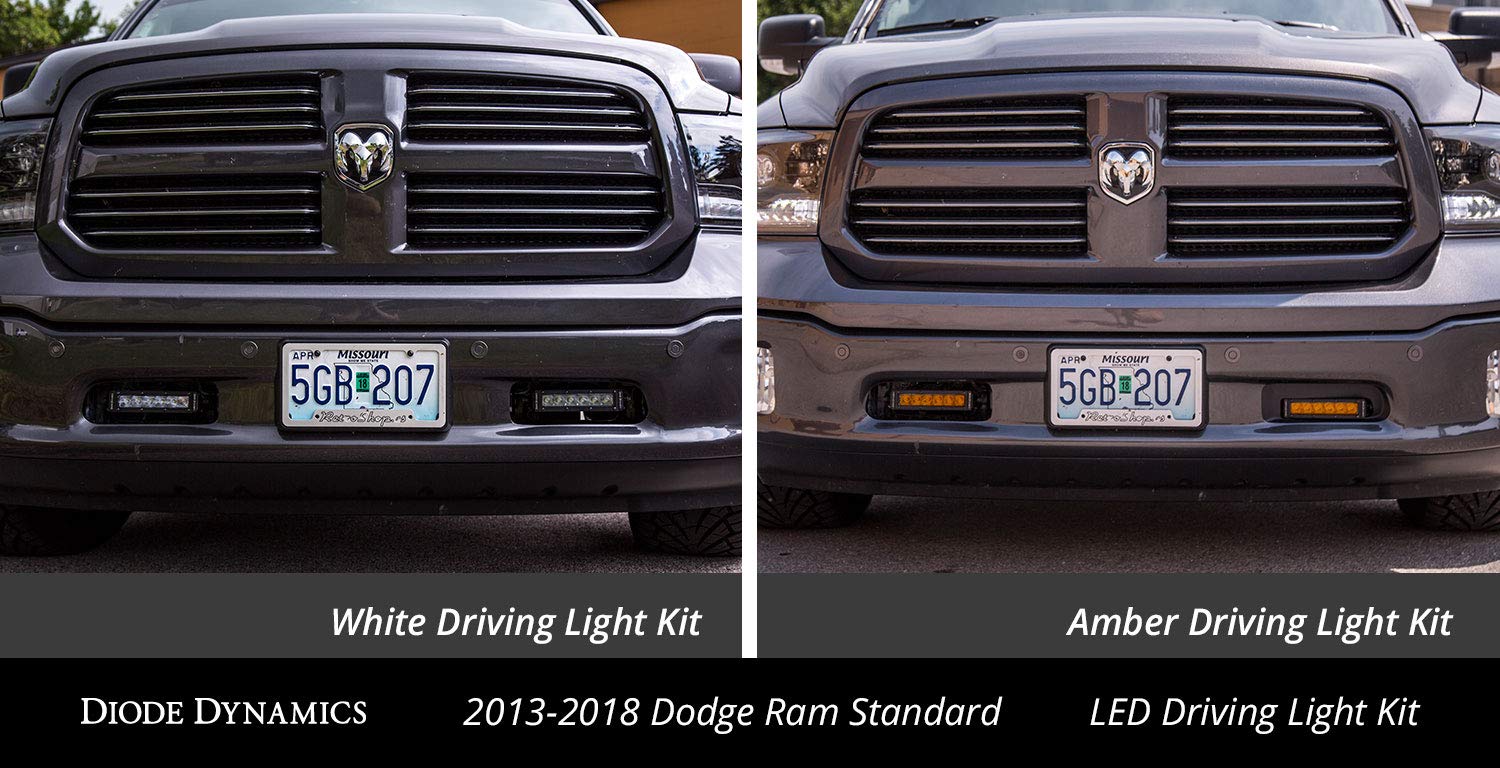

The LED Driving Light Kit for the 2013-2018 Dodge Ram with Standard bumper from Diode Dynamics allows mounting a pair of SS6 Stage Series 6 Inch Light Bars in the bumper openings.
These brackets were CAD-designed for installation using factory mounting points.
Cutting or drilling is not required!
Output is street legal.
This kit is not just for off road!
It is legal for on-road use as driving or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).
Performance is designed.
Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.
Light bars shine in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.
Patterns are functional.

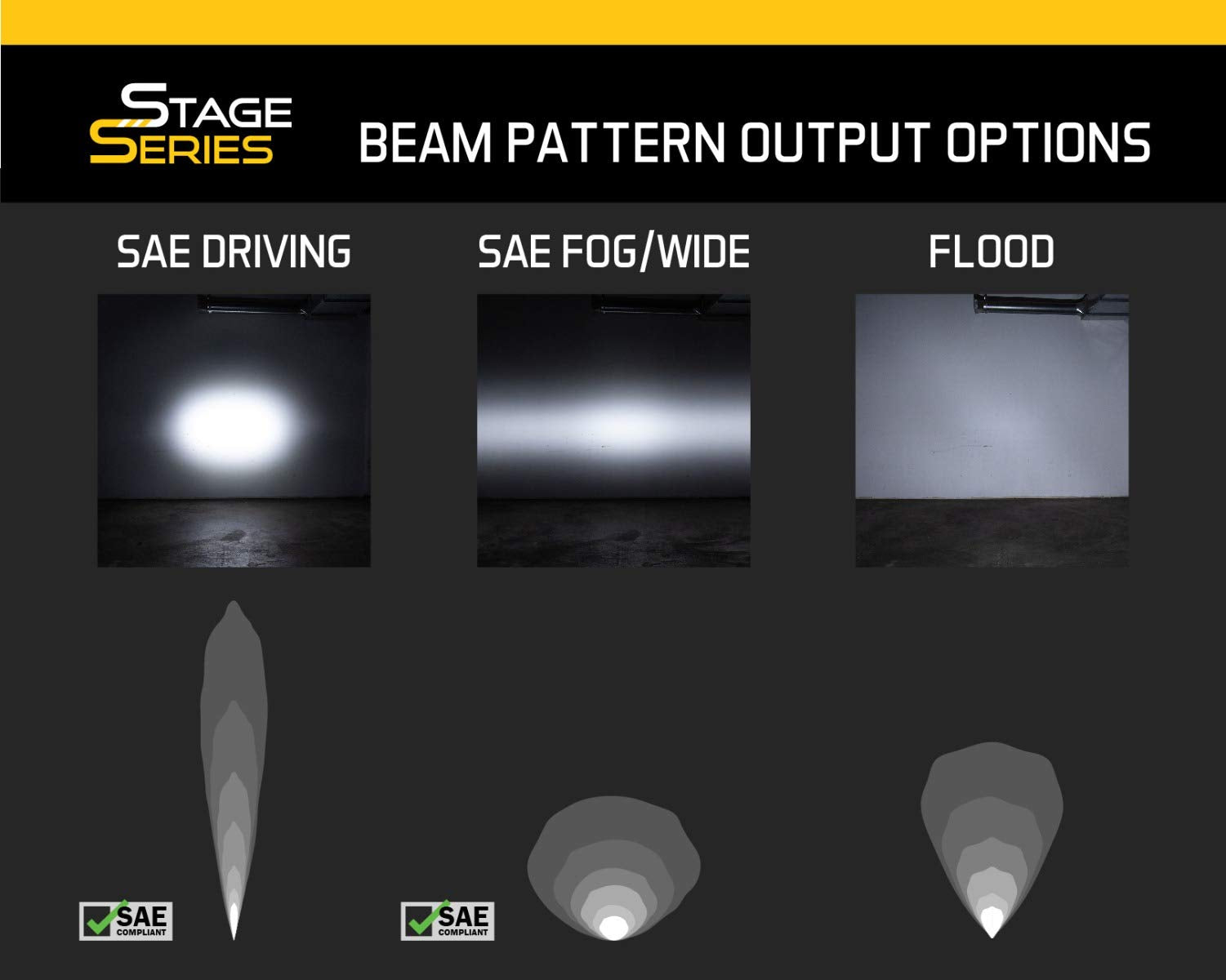

All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern.
No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Driving pattern was designed to supplement high beams.
Rather than a simple spot pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Wide pattern provides an extremely wide field of view, without wasting light in the sky above and provides a 100Wx8H degree spread of light.
It was designed to supplement fog lights and is perfect for driving in inclement weather.
Experience counts.
After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting.
Unlike every other LED distributor, products are manufactured and engineered in the United States for high quality and fast time-to-market of the newest and brightest LED technologies.
Only quality LED products are offered that will exceed expectations.
Contact us if you'd like to discuss your lighting project!
Features include Bar Type Two (2) Single Row Straight Bar Length 6 Inch Lens Color Clear Light Pattern Wide Lux 130 Brackets Included Yes Direct fitment on 2013-2018 Dodge Ram Standard Street-legal output as Driving or Fog lights (Please check your local laws and regulations for aiming, installation, and applicability) Dual output wiring harness included.
Highly durable powdercoated steel construction Utilizes existing mounting points and hardware for simple installation CAD-designed for perfect fitment.

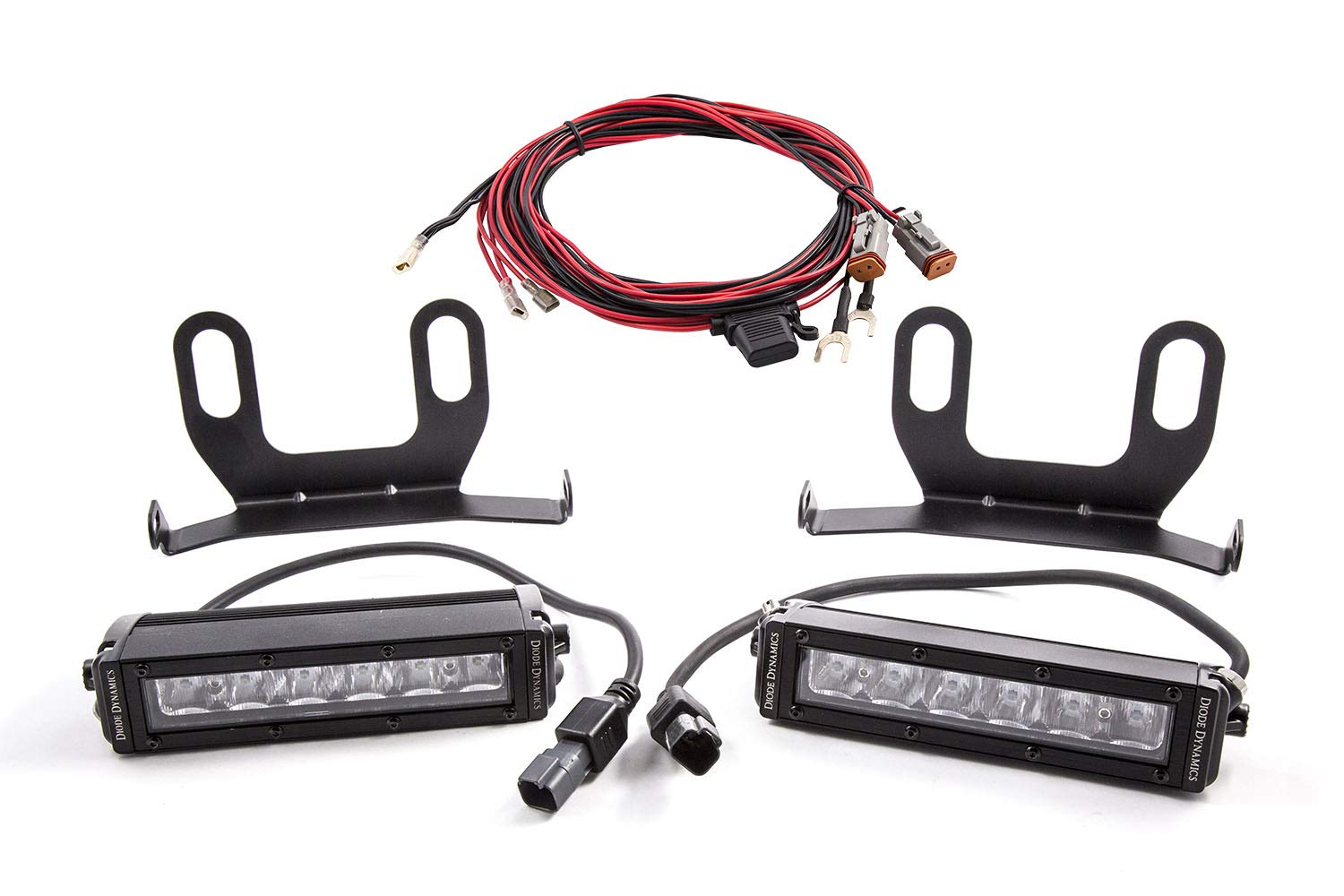

What's Included In the Box: Two (2) Application-specific heavy-duty steel brackets for installation on 2013-2018 Ram Standard Two (2) SS6 Stage Series 6 Inch Light Bars One (1) Dual Output Harness with toggle switch All Necessary Hardware Installation Guide Quantity: Pair (Left and Right Side): 8 year 100 percent Satisfaction Fitment.
This kit was designed for the 2013-2018 Ram with the Standard bumper Make: Ram Model: 1500/2500/3500 Years: 2013, 2014, 2015, 2016, 2017, 2018 Electrical Compatibility: No electrical issues (tested and confirmed) Specifications Measured Lumens: 2280 Intensity (cd): 47,000 Color Temp (CCT): 2000K, 6000K Beam Angle: Wide, 100 Degree x8 Degree, Driving, 20 Degree x8 Degree Power (watts): 26.6 Operating Voltage: 9-16V Current (amps at 13.2V): 1.9 Bracket Thickness: 14 ga Polarity: Polarity Specific Operating Temperature: -40C to 85C (-40F to 185F) LED Emitter: Luxeon Z ES Connector(s): Deutsch DT Input Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink Cooling: Passive, heatsink Intrusion Ratings: IP68 Waterproof.
