Fitment is perfect.
The Bumper LED Light Bar Kit for the Jeep Wrangler 2018 and Up from Diode Dynamics allows for mounting either a single SS30 Stage Series 30 Inch LED Light Bar or dual Stage Series 30 Inch LED Light Bars on the factory front bumper.
These brackets, designed specifically for the application, were CAD-designed to install using factory mounting points.
No cutting or drilling is required!
A low profile design eliminates whistling or major wind noise that may have been experienced with other light bar brackets as well.
Choose your look.
This kit can be mounted in different ways to achieve the desired look!

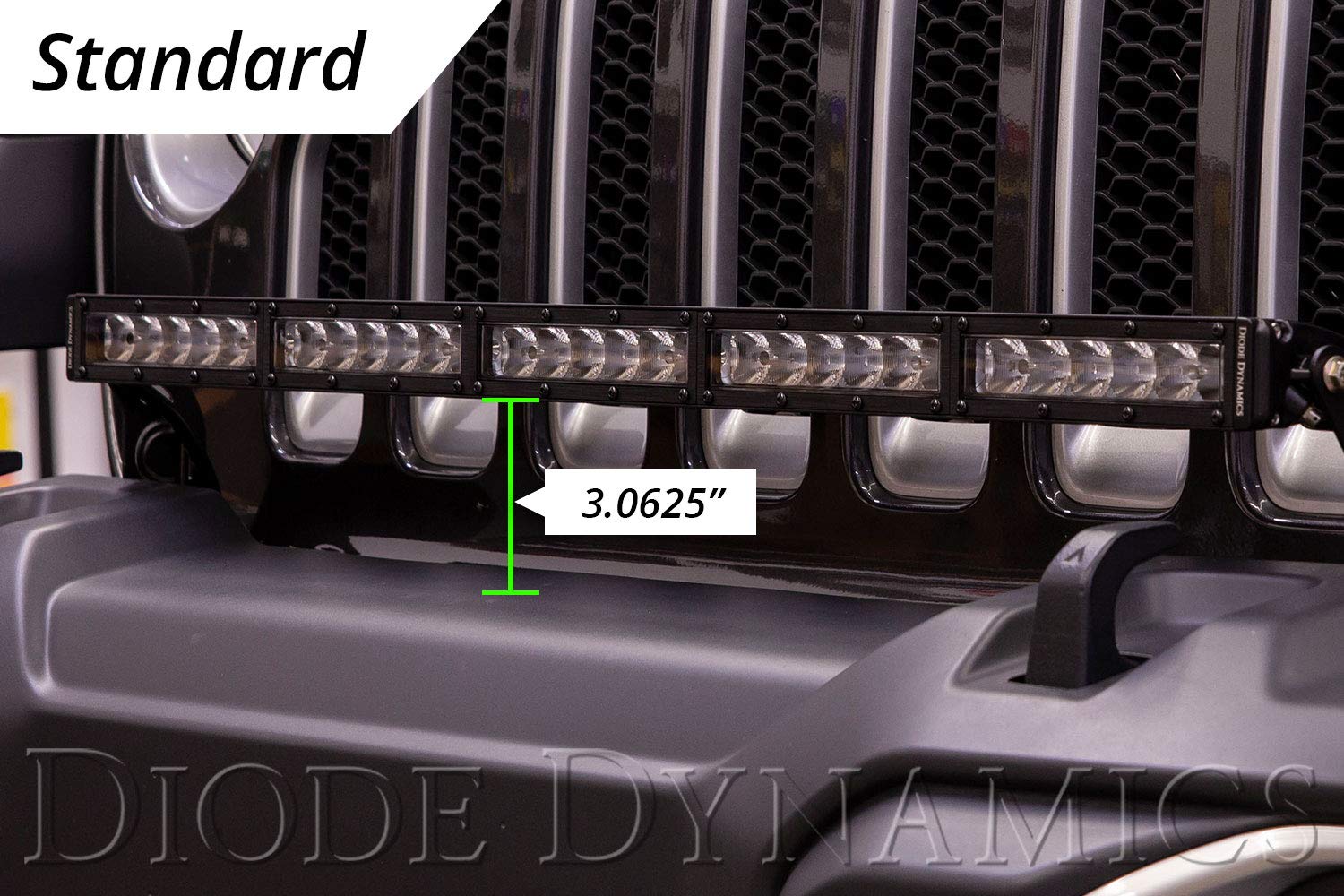

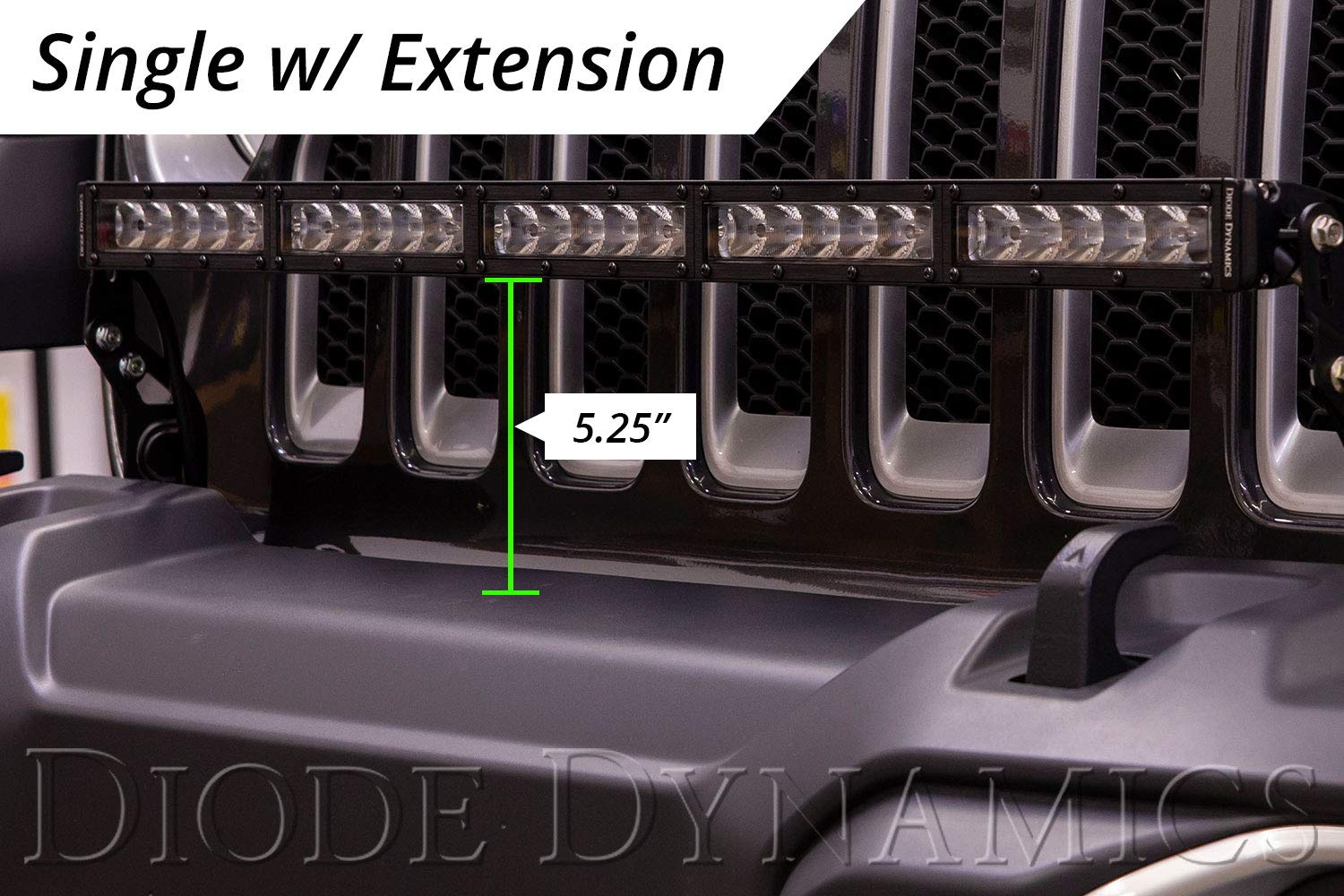

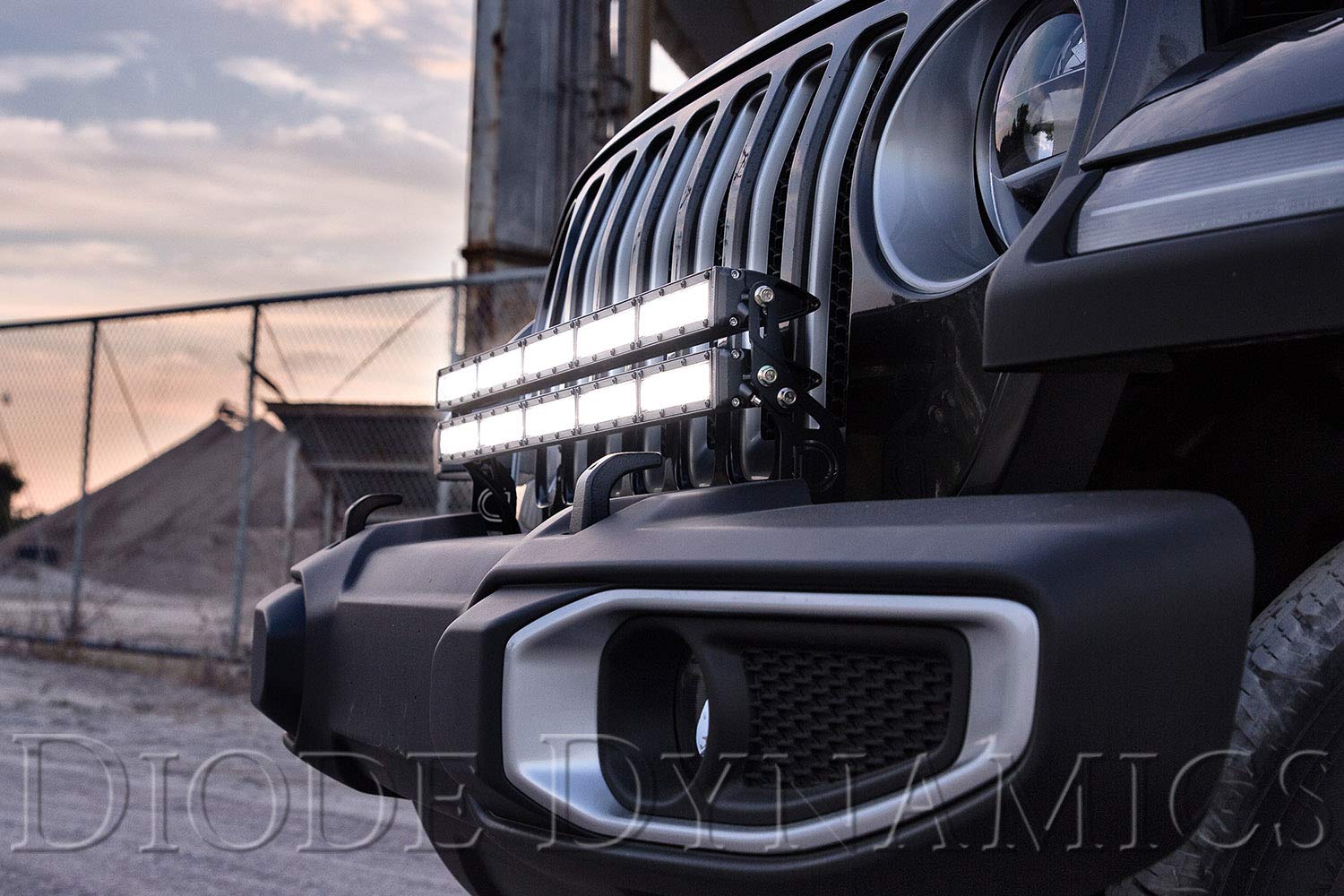

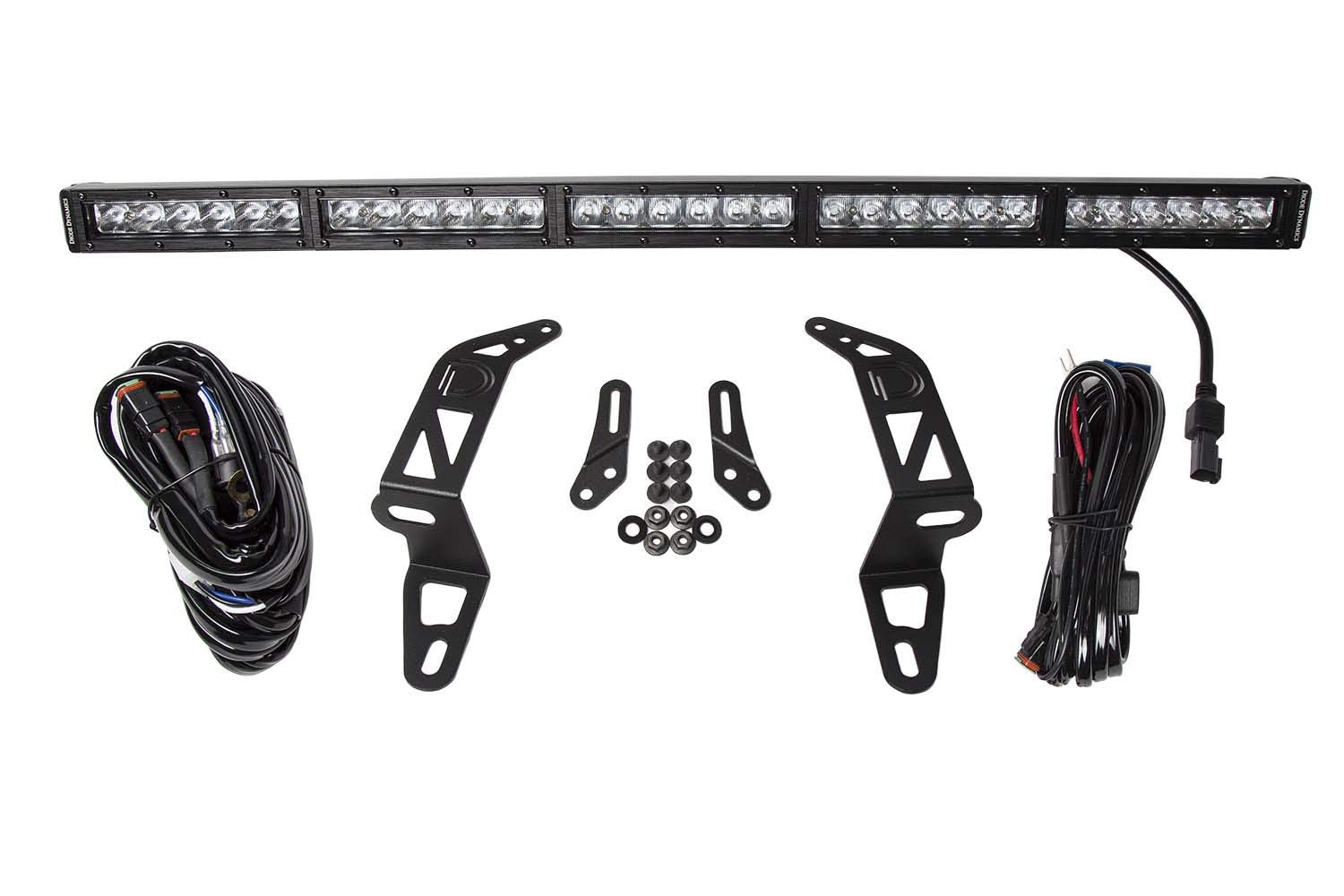

Mount a single light bar using the base brackets, or use the included extension brackets to allow clearance for a winch or mount a second light bar for maximum light output.
The brackets, without the light bars or harnesses, are available separately and are compatible with any generic 30" LED light bar.
Control through the aux switch bank.

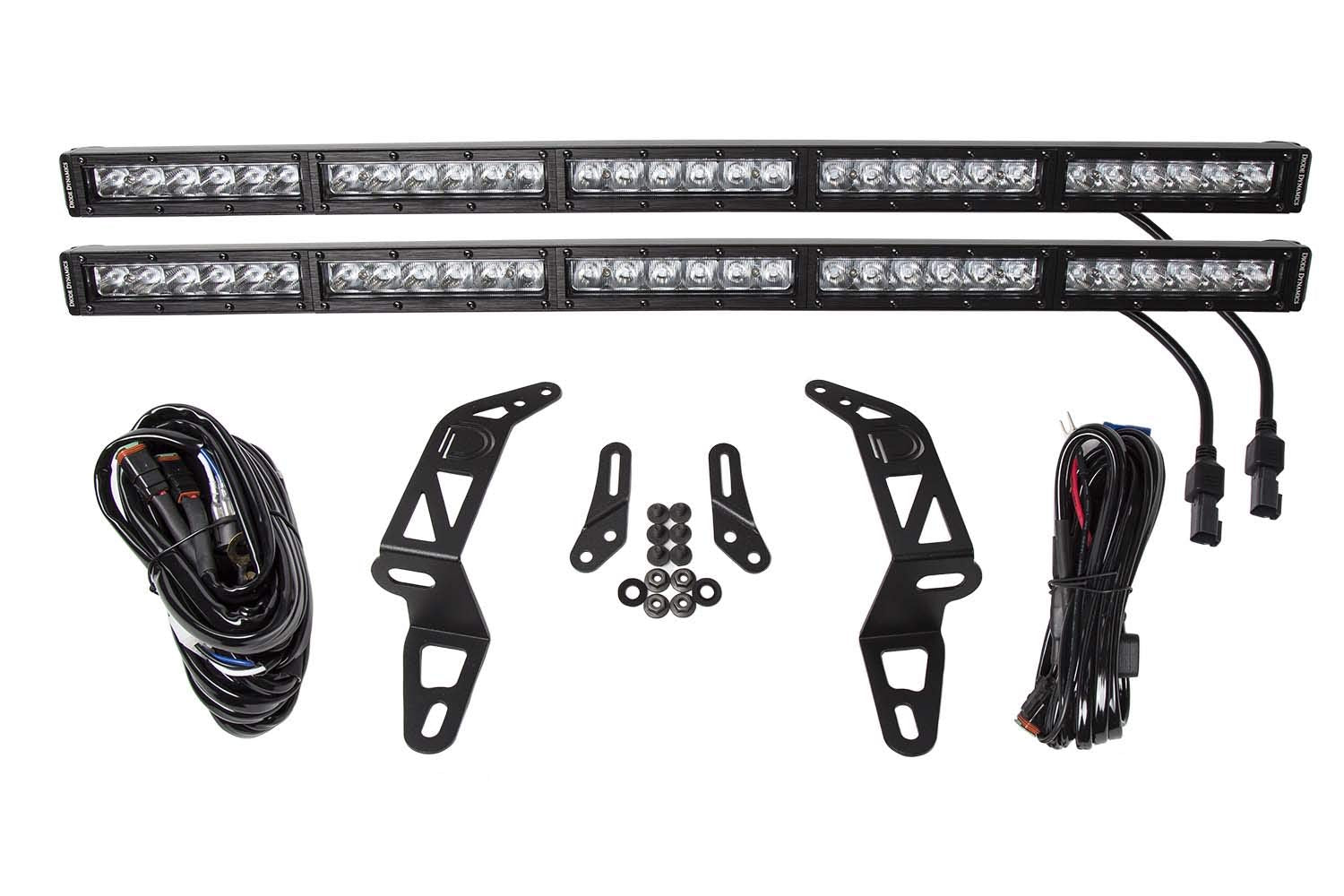

Included with the kit is our new OEM Auxiliary Switch Dual-Output Wiring Harness.
This harness allows for control of your LED light bars using the factory-installed aux switch bank.
For those without the aux switch bank, our Heavy Duty Dual-Output Wiring Harness is also included to mount a switch and connect directly to the battery.
If you would like to control the LED light bars on the dual light bar kit independently, an additional Heavy Duty Light Bar Wiring Harness will need to be purchased.
Designed for performance.
Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.
Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.
Functional patterns.
All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
The Driving pattern was designed to supplement high beams.
Rather than a simple spot pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.
The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light.
Unlike generic flood light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry!
It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.
The Combo pattern combines both the Driving and Flood optics.
It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread.
The Stage Series 30 Inch Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.
Experience.
After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting.
Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies.
We pride ourselves in offering only quality LED products, that will exceed expectations.
