No more errors.
Vehicles with factory-installed LEDs from Dodge and Ram require a 'fault' data feedback signal.
If you remove or modify the factory turn signal in either the front or rear, replicating that signal is necessary, or else hyperblinking and bulb out warnings will occur.

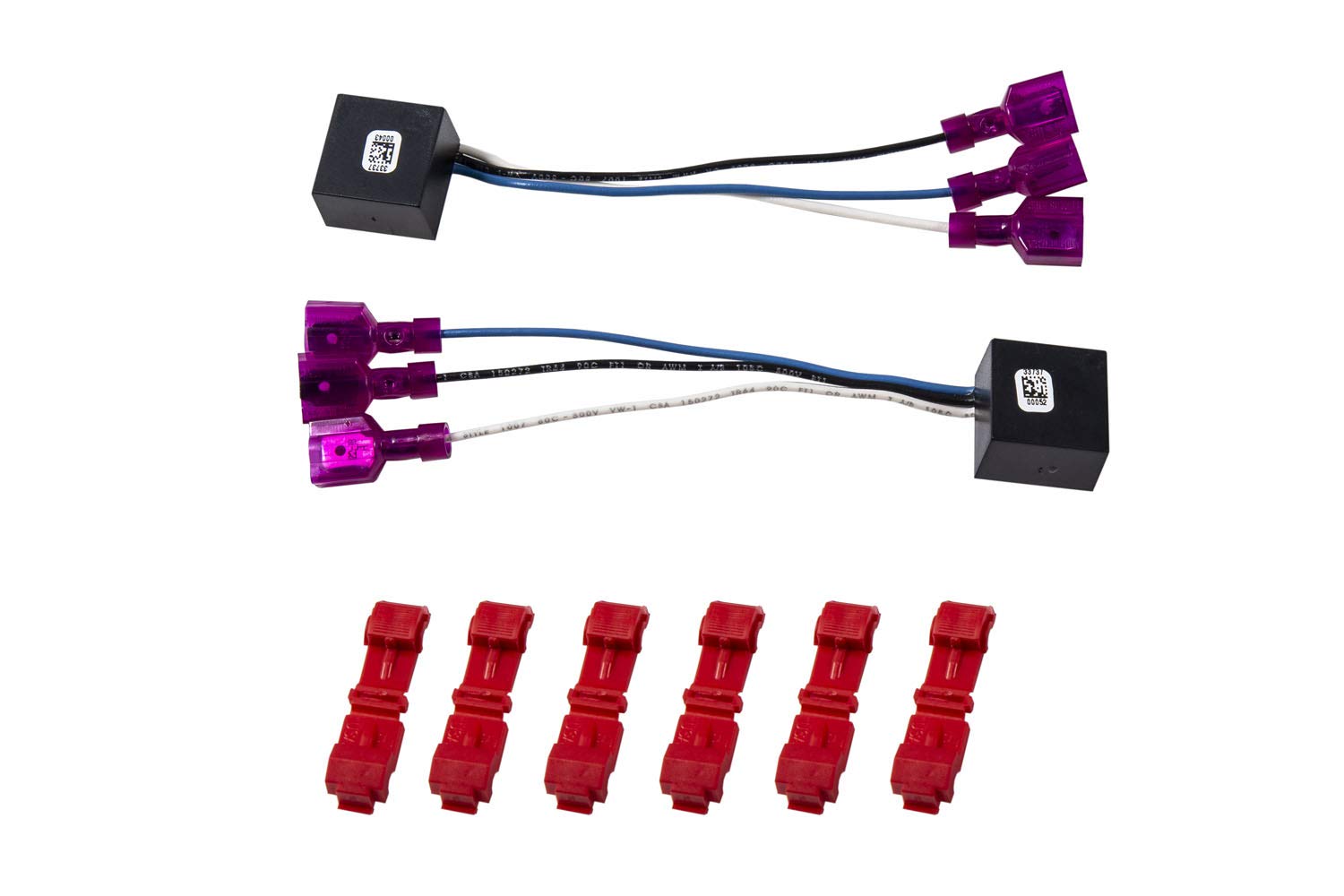

These small modules provide the required 'fault' signal.
Connect the module to turn signal power, ground, and the fault circuit, and this module will deliver the signal your vehicle computer seeks, eliminating any errors.
These modules are not for use in vehicles with factory-installed incandescent turn signals.
Resistors are required for vehicles with factory-installed incandescent signals.
This is only necessary for vehicles with factory-installed LED turn signals.

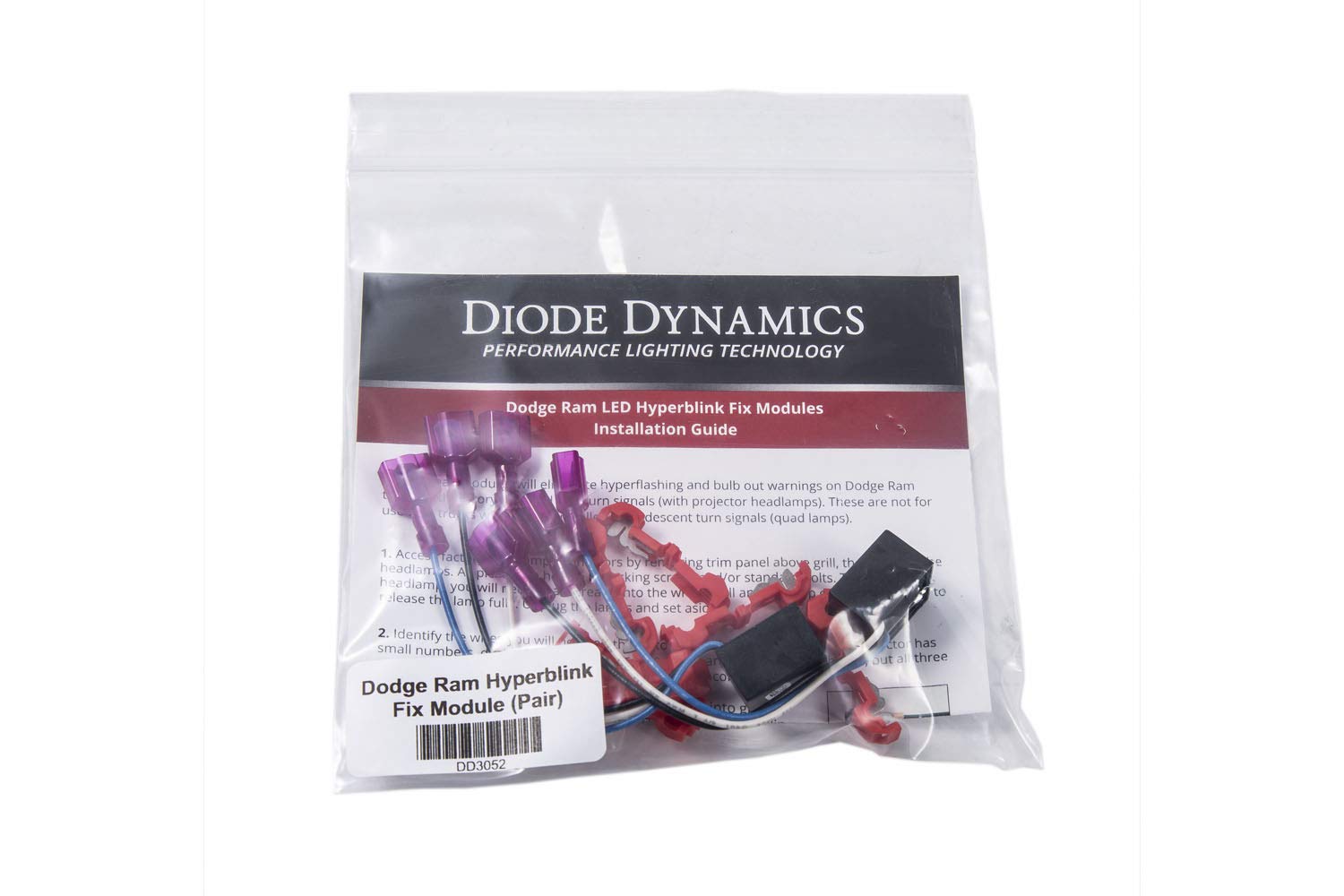

Your order includes one pair of modules.
They can be used in either the front or rear.
If both front and rear factory LED turn signal lamps have been removed or modified, two pairs (four modules total) will be needed.
Installation.
Once the headlamp connectors are accessed, tap the following wires.
Connect the Black wire to ground.
Connect the white wire to turn signal positive.
Connect the blue wire to the fault circuit.
Experience.
After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting.
Unlike every other LED distributor, products are manufactured and engineered in the United States for high quality and fast time-to-market of the newest and brightest LED technologies.
Only quality LED products are offered that will exceed expectations.
Features: Eliminates turn signal hyperflashing and bulb out warning in Dodge and Ram vehicles with LED turn signals.
Made in USA, and sealed for reliability.
3-year, worry-free.
What's Included: Quantity: Two (2): 3 year Return Policy: 30-day Return with no restocking fee.
100 percent Satisfaction.
Fitment: These modules are compatible with Dodge and Ram vehicles with factory-installed LED turn signals.
For example, they can be used when the following products are installed: 2013-2018 Dodge Ram Multicolor LED Boards, 2013-2018 Dodge Ram Switchback LED Boards.
These are not compatible with vehicles with factory-installed incandescent turn signals.
Specifications: Operating Voltage: 9-16V.
Polarity: Polarity Specific.
Operating Temperature: -40C to 85C (-40F to 185F).
Connector(s): T-Tap Inputs.
Driver Features: Waterproof.
Weight (lb): 0.1188.
