HDHalo Technology.

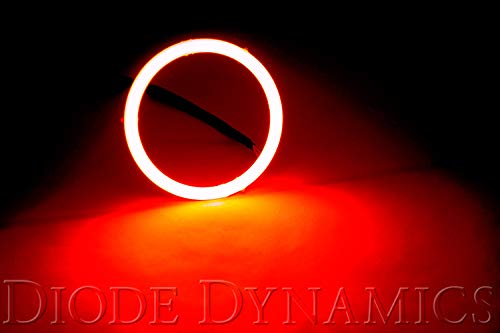

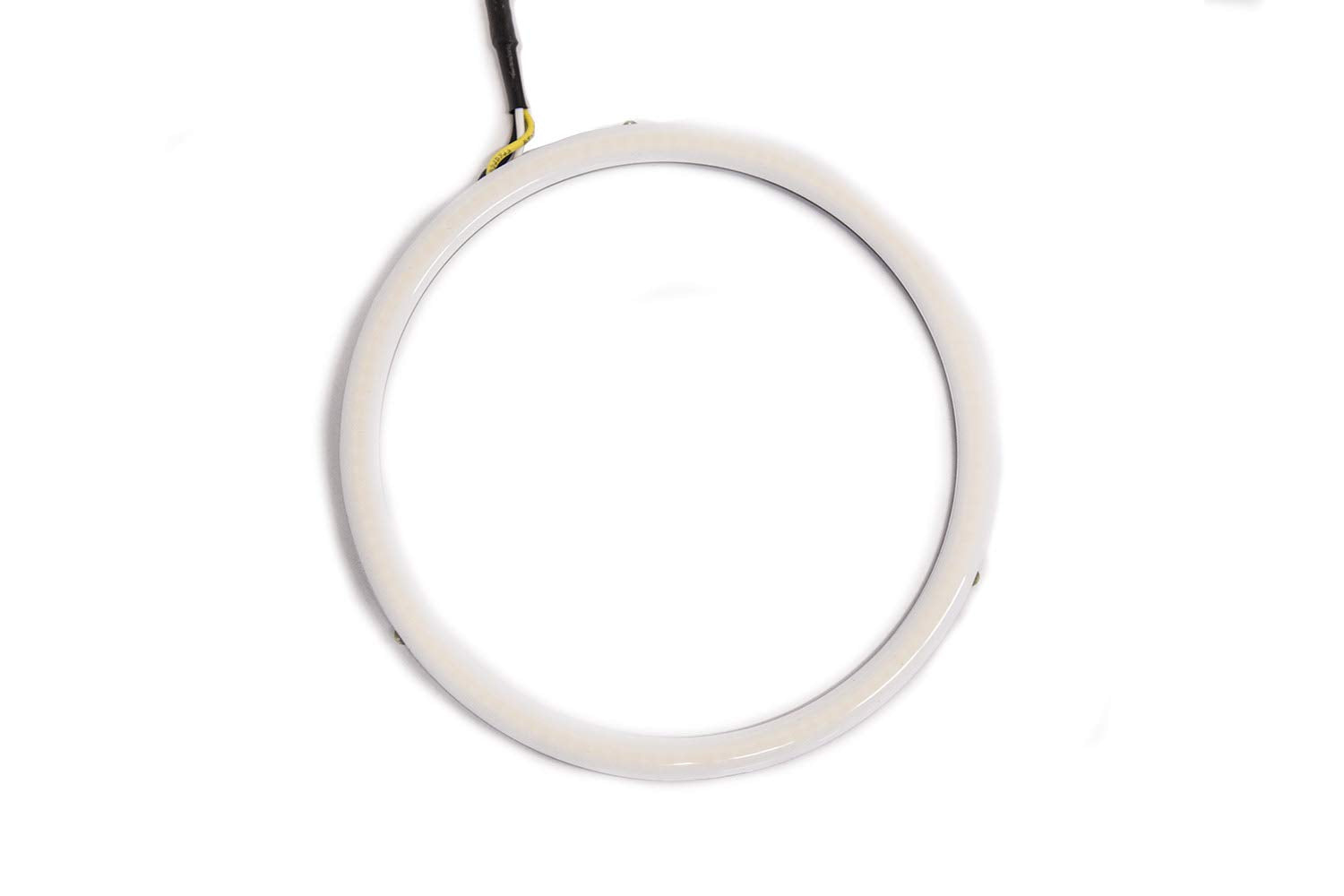

Designed from the ground-up, these HD LED halo rings are the brightest and most reliable halos physically possible.
Each halo is populated with a large number of high-density (HD) LEDs, which are coated by a diffusing gel, resulting in a perfectly uniform light when turned on.
When off, the chips are hidden by the diffusing gel, resulting in a clean, OEM appearance.
Sizing: All sizes are listed by outside diameter, in millimeters.
The width is 8mm, so the inside diameter is 16mm less than the outside diameter.
The total height is 4.5mm.
Mounting: The halos must be custom-mounted in position using adhesive or beading wire with the integrated mounting tabs.
If desired, mounting tabs may be removed with a pair of clippers or basic sanding.
The halos can be modified if needed to fit certain applications.
Up to 20 percent of the halo can be removed using side-cutting snips and still remain fully functional.
Wiring: All wires have a durable braided wire covering.
The LED has a 20-inch wire with a female JST type connector.
This connector may be de-pinned to run wires through small holes during installation.
Both the input and output wire on the driver are also 20 inches each.
A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps.
There is plenty of room to run wires anywhere desired.
PWM Control: Aside from the high brightness and perfectly uniform output, one great feature of these halos is the integrated multifunction PWM dimming control.
