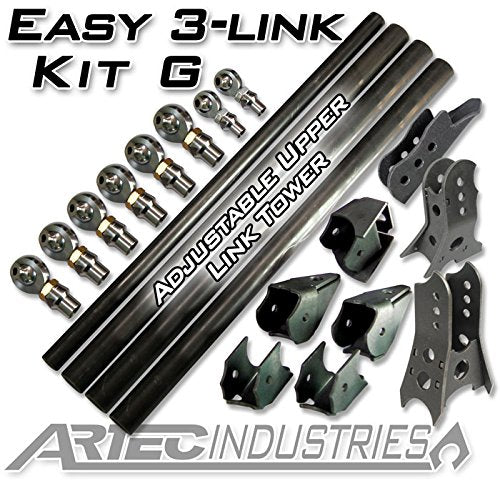

Easy 3 Link Kit G Adjustable Upper link.
The Easy 3-Link Kit G is the simplest way to complete your links.
This Kit is based on our most popular parts sold to customers for a 3-link with a panhard bar.
Intended for axles without a front truss, if you have one of our 60 front trusses, choose Kit F.
The strongest and longest lasting heat and cryogenically treated chromo rod ends are on the market.
The included tube adapters feature machined Wrench Flats for easy adjustments and tightening and conform to the tubing's outer diameter it welds to.
The included stainless steel high misalignment spacers allow for maximum articulation in the rod end.
This Kit offers optional four-foot lengths of both 1.5 inch and 2.0 inch tubing to be cut to the exact length needed for your vehicle.
Drilling of lower link holes to 3/4 inch is required unless you specify you'd like 9/16 inch bolts for your lower links.
Features: Tubing: No Tubing Panhard Frame Orientation: Outside Frame Panhard Axle orientation: Offset Upper Link Side Inner Frame mount: Front Driver/Rear passenger Sold as Kit Includes: 1 RH, 1 LH - 7/8 inch -14tpi x 3/4 inch bore rod ends for panhard 1 RH, 1 LH - 7/8 inch -14tpi Tube Adapters for panhard 1 RH, 1 LH - 7/8 inch -14tpi Jam nuts for panhard 4 - 3/4 inch-9/16 inch High Misalignment Spacers 6 RH, 6 LH - 1.25 inch -12tpi x 1.0 inch bore rod ends 6 RH, 6 LH - 1.25 inch -12tpi Tube Adapters 6 RH, 6 LH - 1.25 inch -12tpi Jam nuts 12 - 1.0 inch-3/4 inch High Misalignment Spacers 2 - Lower Link Frame Brackets 1 - Pair Lower Link Axle Brackets (10 dig) 1 - Adjustable Link tower 1 - Inner Frame Bracket (0 dig) - Choose Driver Or Passenger 1 - Adjustable Panhard Frame Mount - Choose Orientation 1 - Adjustable Panhard Axle Mount - Choose Centered or Offset 1 - 4 ft 1.5 inch OD .250 inch thick DOM tubing (optional) 3 - 4 ft 2.0 inch OD .250 inch thick DOM tubing (optional).
