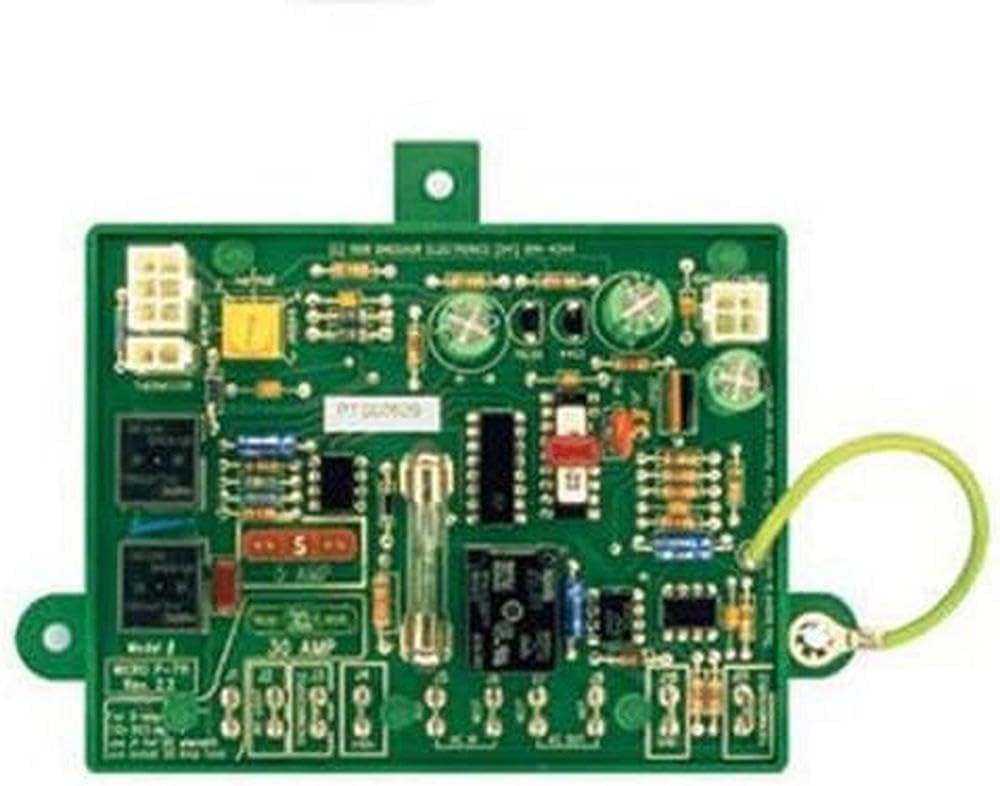

The 3850712.01 Dinosaur Electronics is a replacement for Dometic's 3850712-xxx Black Box Board.
The unit features a built in igniter.
Operation can be 2-way or 3-way.
Fuse protection is included.
Variable Temperature adjustment is available for FIXED TEMP refrigerators.
After each ignition attempt fails to sense a flame, the CHECK light activates.
If no flame is sensed, the 3 try ignition cycle repeats at 30 minute intervals.
In 3-way models, if the voltage level falls too low for more than 10 seconds, the DC element will drop out and the DC mode light will flash.
A cover that is easy to remove is included.
The product comes with a Limited 2 Year Manufacturers Warranty.
It replaces Black Box Boards: 3850712-xxx, 3316348-xxx, 3850712013, 3316348900, 3316348.000, 3316348000, and 0713814221829.
If replacing a 3850415-xxx, use Dinosaur's part 3850415.01.
For Black Box Boards with a part number starting with '293', use Dinosaur's part MICRO P-711.
Warning: Product may contain materials cautioned by California Proposition 65.
