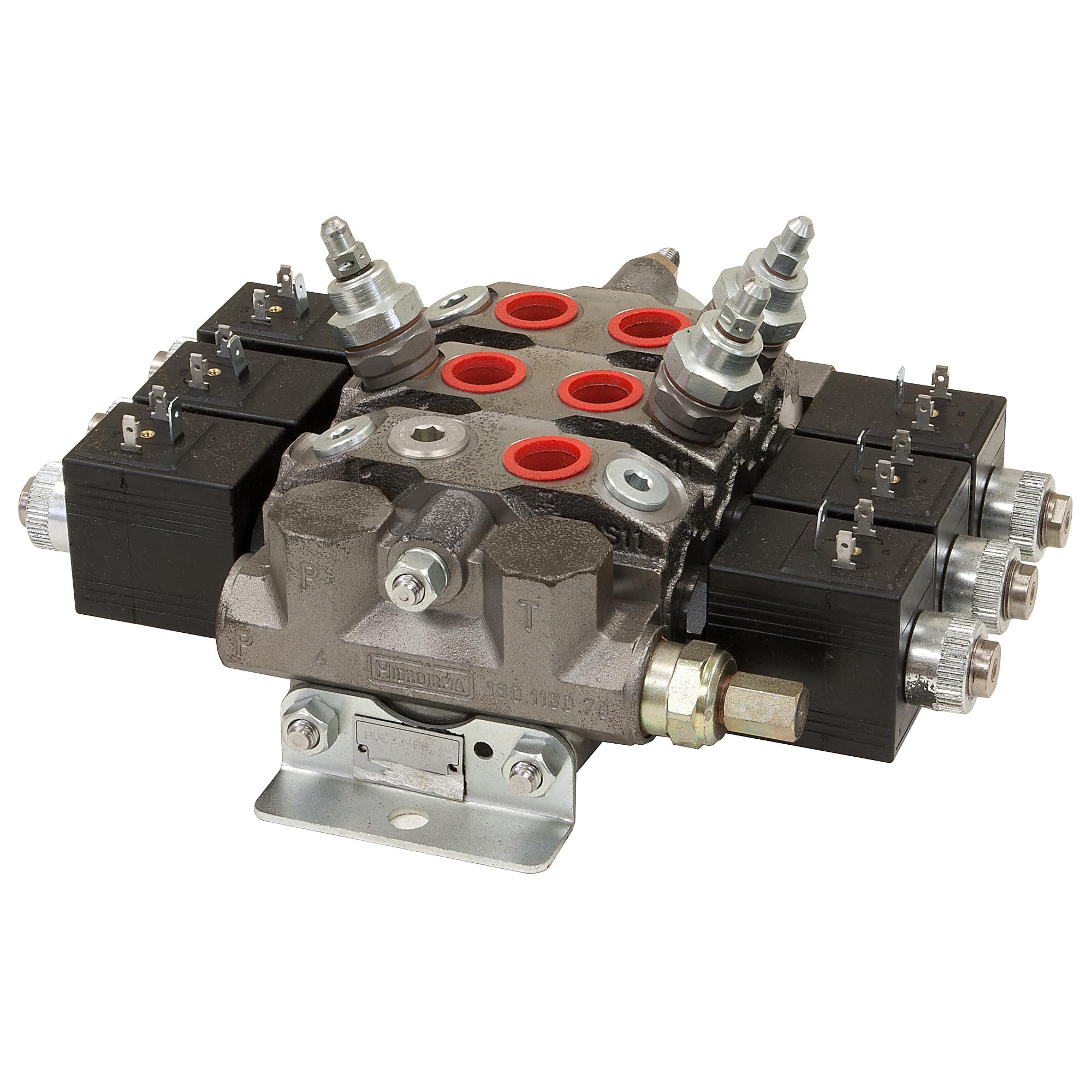

The Electric Sectional Valve from Buyers Products has a compact design.
Its electrical controls allow you to control the valve remotely by mounting a switch in the cab.
It's suitable for plow trucks and smaller trucks.
The valve is rated for a maximum flow of 11 GPM at 12V.
It features a non-proportional on/off flow.
When the main relief is set at a higher pressure, it can handle a maximum rating of 4300 PSI.
The main relief is adjustable from 1300 to 3000 PSI, with a factory preset at 2150 PSI.
Two additional adjustable port reliefs, angle and dump, are available for job-specific protection.
The valve includes cylinder spools, load hold check in the neutral position, precision-machined and ground spools, and easily replaceable spool end seals.
Additional configurations are available.
For further information, please contact Customer Service.
