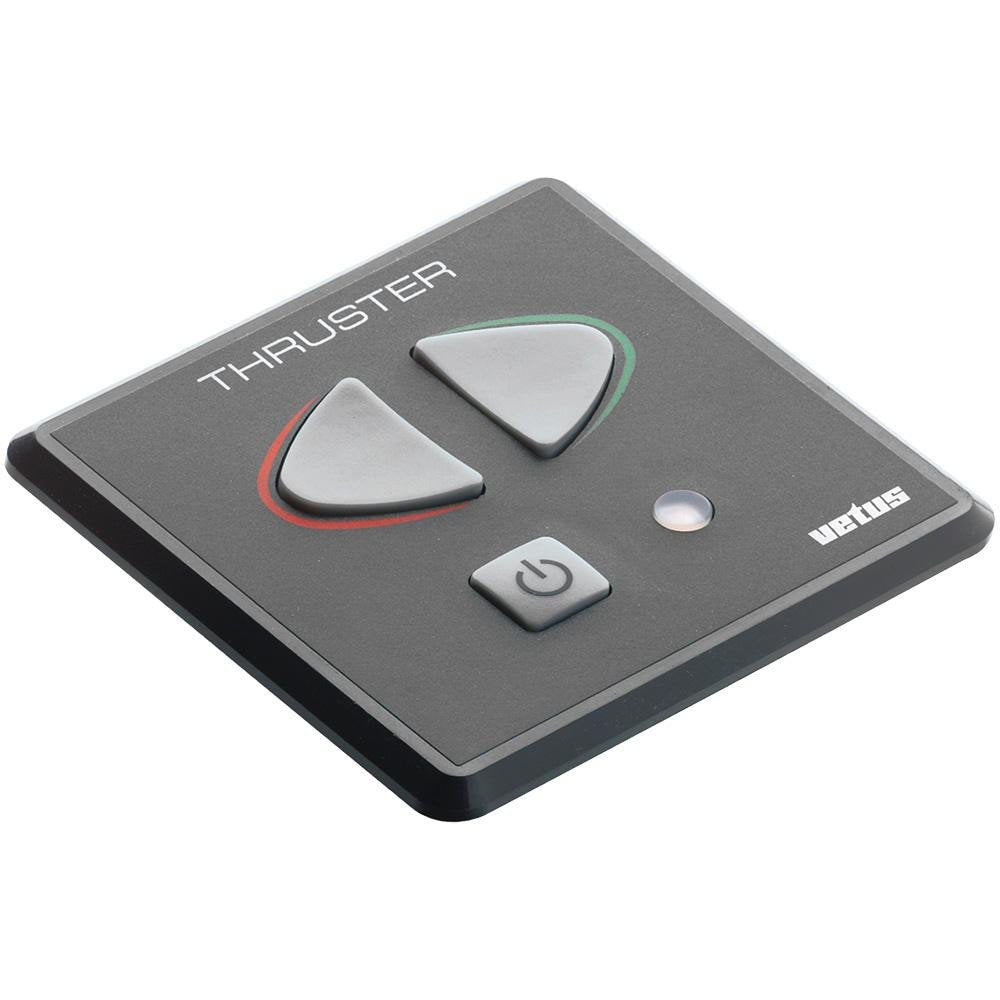

Bow Thruster Panel w/Buttons & Time Lapse.
A single touch panel for operating a bow or stern thruster from Vetus.
Supplied with quick connectors for wiring harnesses of the BP29 series.
Capable of daisy chaining additional controls for multiple stations.
Features include protection against accidental or unauthorized operation, a panel power on indicator, and control circuit overload protection.
A built-in time lapse device activates when reversing the direction of rotation.
Automatic switch off occurs after 30 minutes of inactivity, a feature that is user selectable during installation.
In the event of continuous running for more than 2 minutes, a warning LED and buzzer activate, and the thruster will switch off automatically.
The panel resets itself after 5 seconds.
It is watertight to IP 66.
Dimensions are 85mm x 85mm.
Quick Guide (pdf).
