FLAIR-IT FITTINGS FLARED - CONE & NUT FITTINGS APPLICATIONS FOR HOT & COLD POTABLE WATER FITTINGS - For potable water fittings hot and cold (150 degrees at 100 psi).
Cut end of tubing squarely, slide nut over tubing.
Press tubing firmly onto the flare of the fitting.
To the threads, slide the nut and hand tighten securely onto the fitting.
If necessary, turn 1/4 more turn with a wrench.
Do not use any 2 inch pipe dopes, sealants, Teflon tape or other chemical on Flair-It connections.
However, Teflon tape should be used on male pipe threads when connecting to female threads.
When connecting to brass, galvanized steel or CPVC, use a male Flair-It fitting instead of a female fitting.
When connecting Flair-It fittings to a water heater in a mobile home, we recommend using a 1/2 inch flex copper connector off of the water heater.
From a flex connector to polybutylene, use a Flair-It male adapter.
Do not use in a closed loop system.
Joints should not be made under concrete.
Nuts are included.

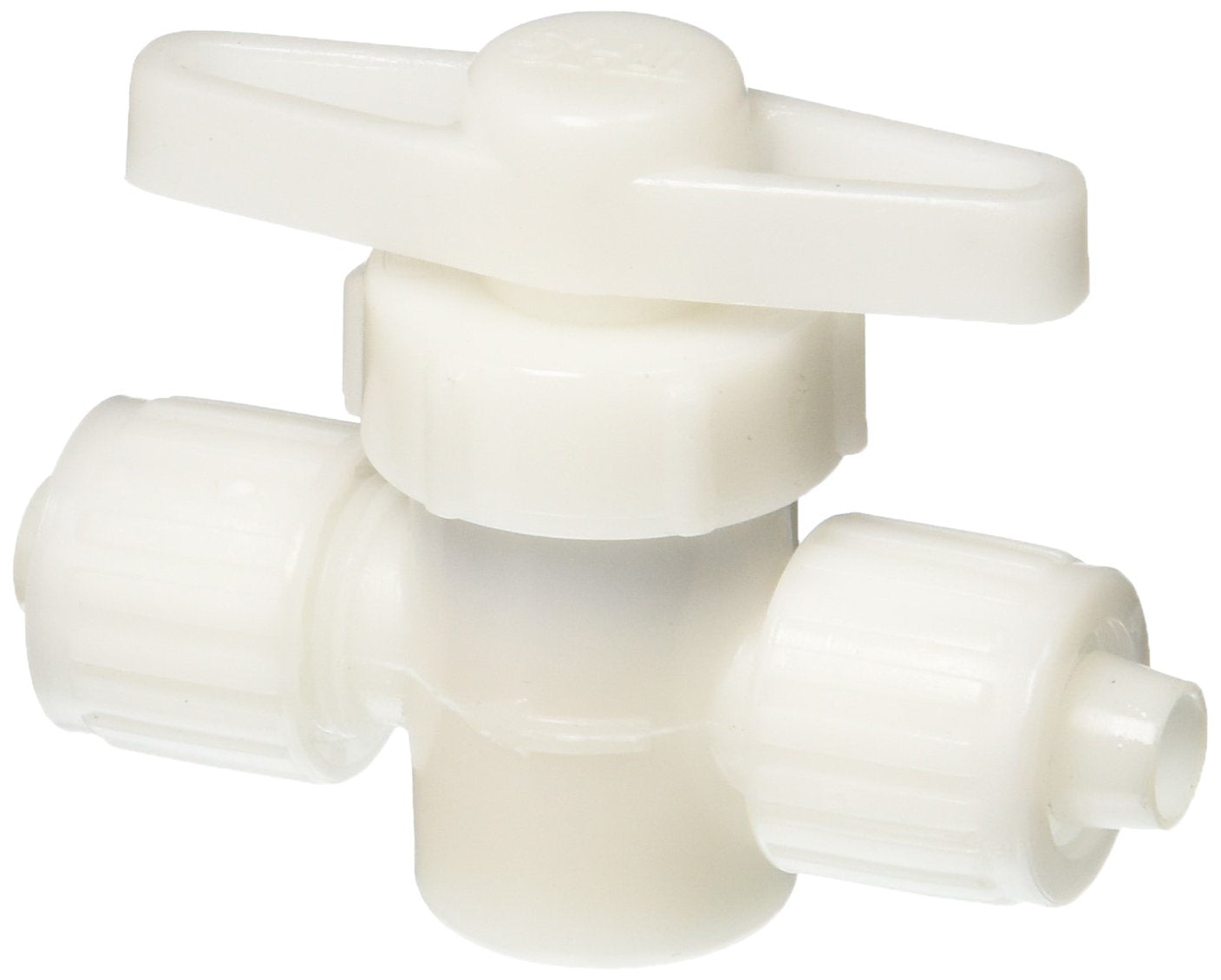

Flair-It Straight Stop Valve 3/8 inch FL x 3/8 inch FL.
