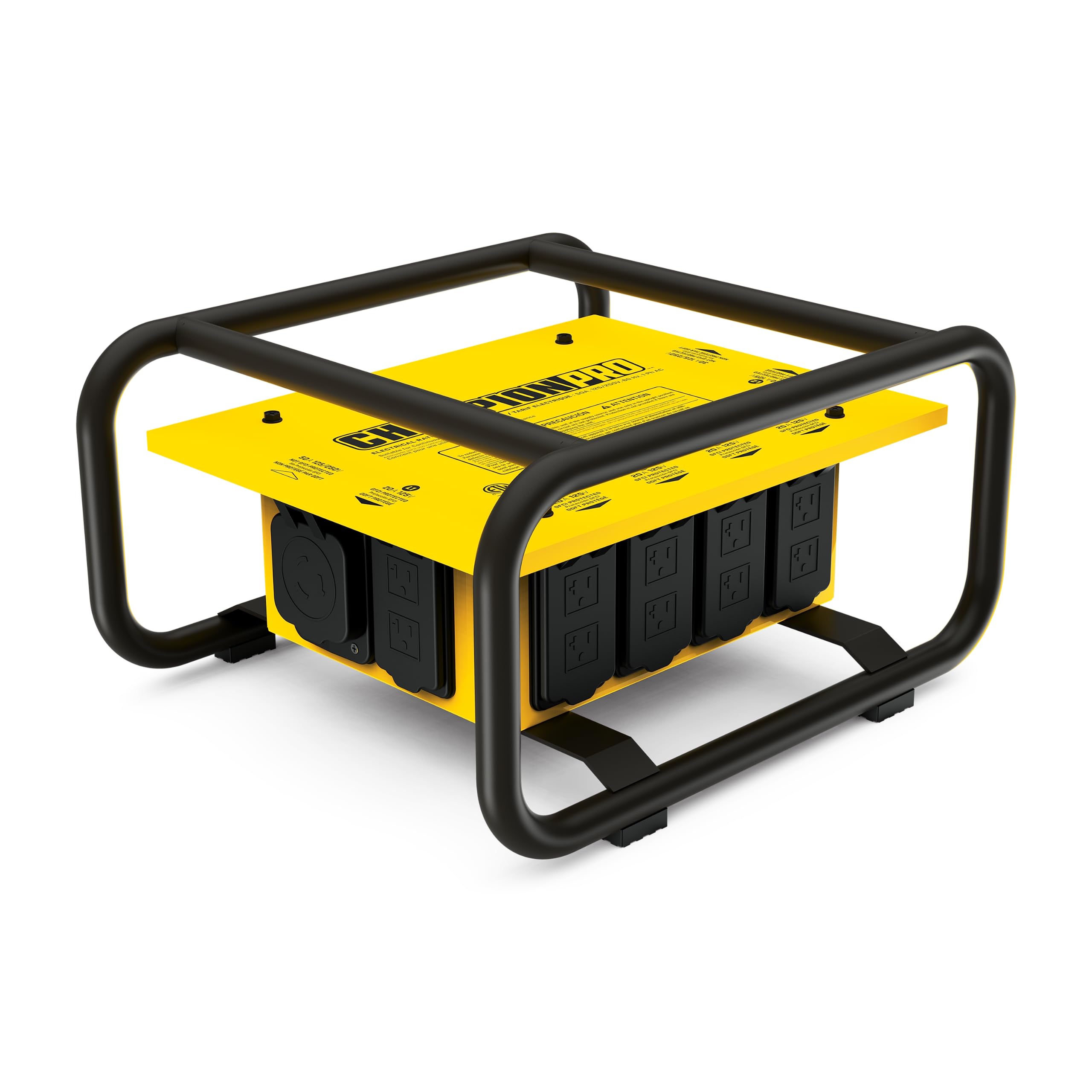

The Champion Power Equipment Model 201174 Power Distribution Box is a solution for your power distribution needs.

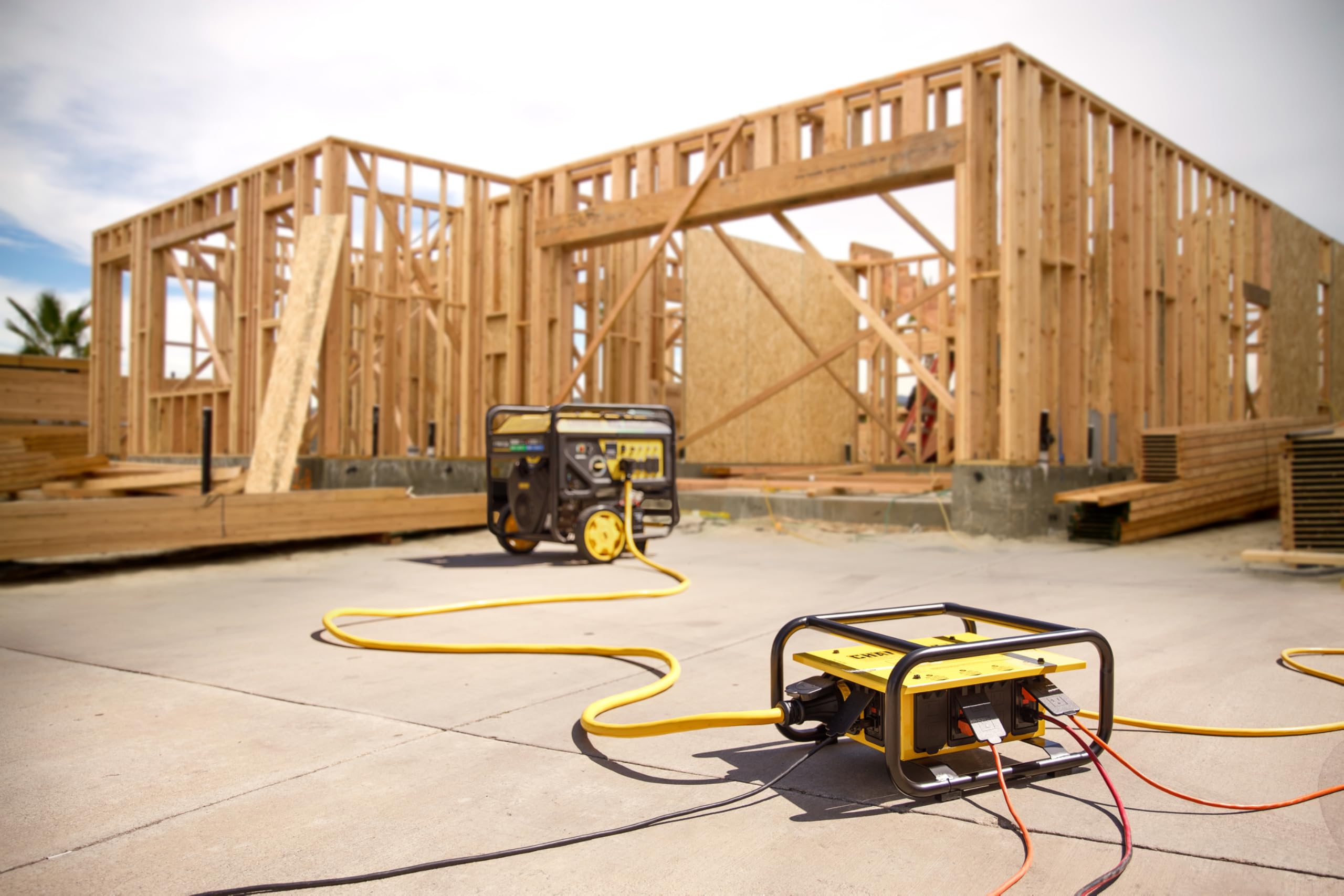

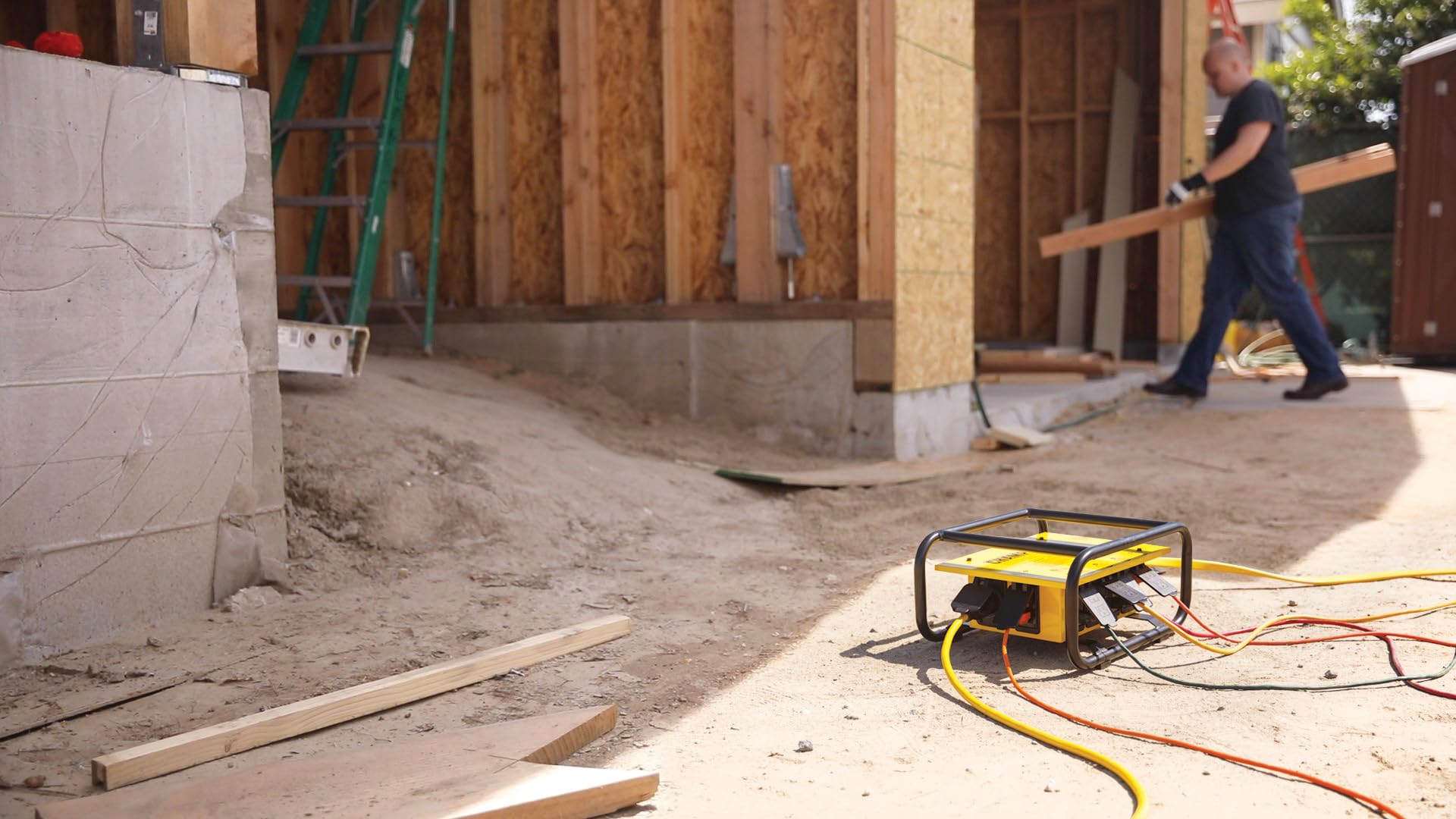

Built to provide safe and efficient power distribution, this sturdy box is ideal for a job site, hosting an event, or dealing with a power outage.

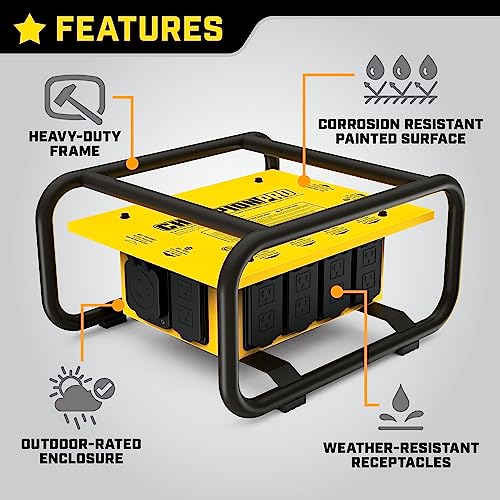

The Champion Power Distribution Box features a heavy-duty steel frame and a powder-coated finish that ensures durability and longevity.
It includes (6) six 120V GFCI-protected duplex outlets (5-20R) and (1) one 120/240V twist-lock outlet (L14-30R).

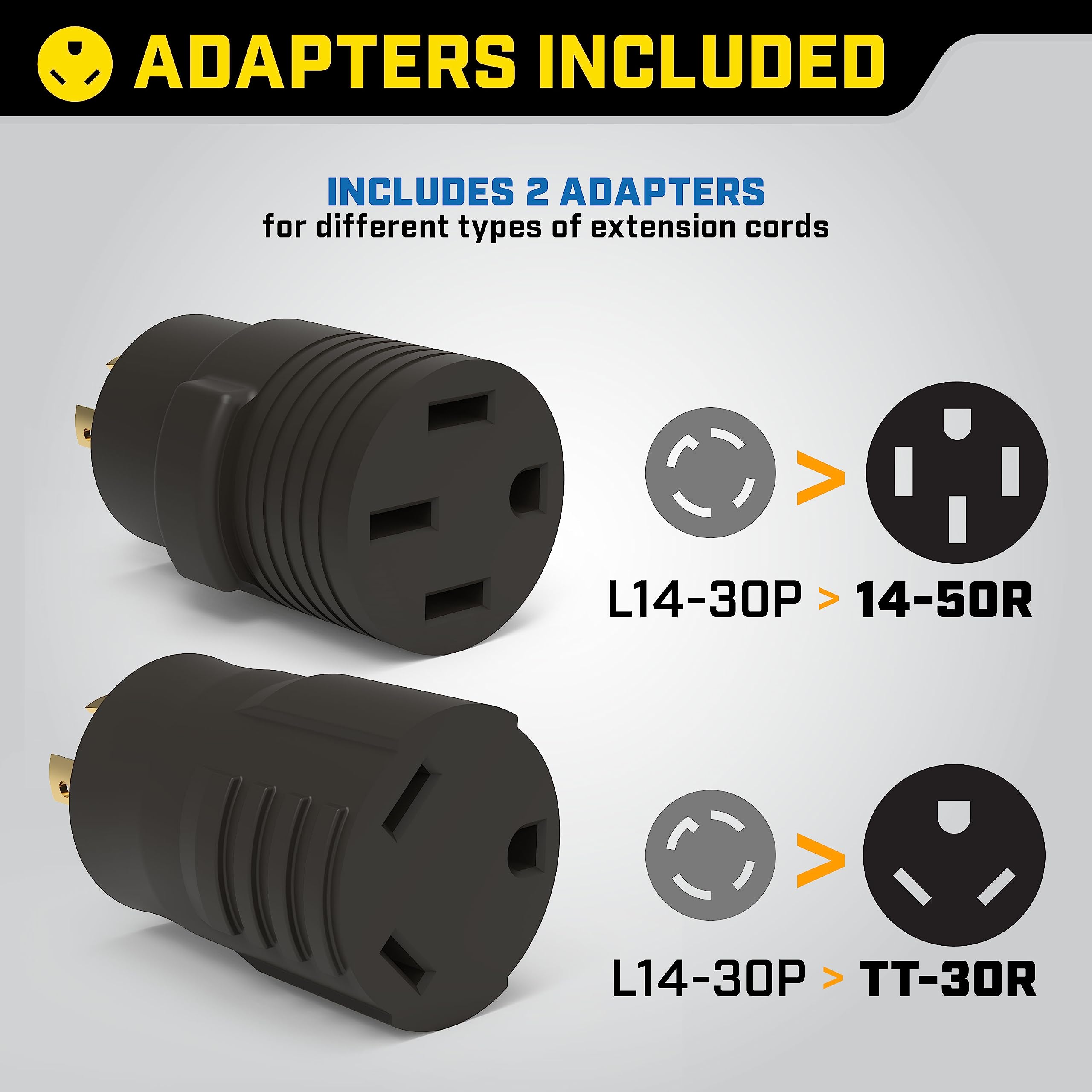

Included are 120V 30A (L14-30P X TT-30R) and 120/240V 50A (L14-30P X 14-50R) RV adapters, providing a variety of options for your power needs.
With a total of 50 amps of power, this distribution box can handle heavy loads with ease.
The inlet power source can be a 125/250V, 50A maximum generator (with 14-50R receptacle) or utility.
Use a Champion 30 ft.
50A 125/250V power cord (model 100828, not included) or equivalent, plug into any 125/250V 50A maximum generator or utility (power source) and then into the power inlet plug (50A 120/240V, SS2-50P) on the Power Distribution Box.
The power inlet feeds a split-phase circuit breaker with (6) six 1-pole 20A circuit breakers and (1) one 2-pole 30A circuit breaker.

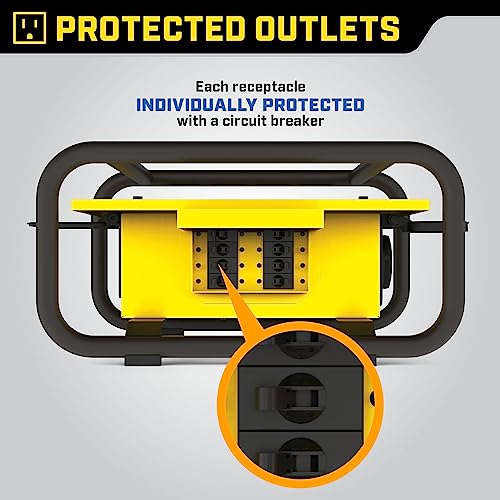

Designed with safety in mind, the Champion Power Distribution Box is equipped with a built-in surge protector, circuit breaker protection, and a locking safety door to keep your connections secure.
The box includes a hinged cover that provides protection from the elements when not in use.

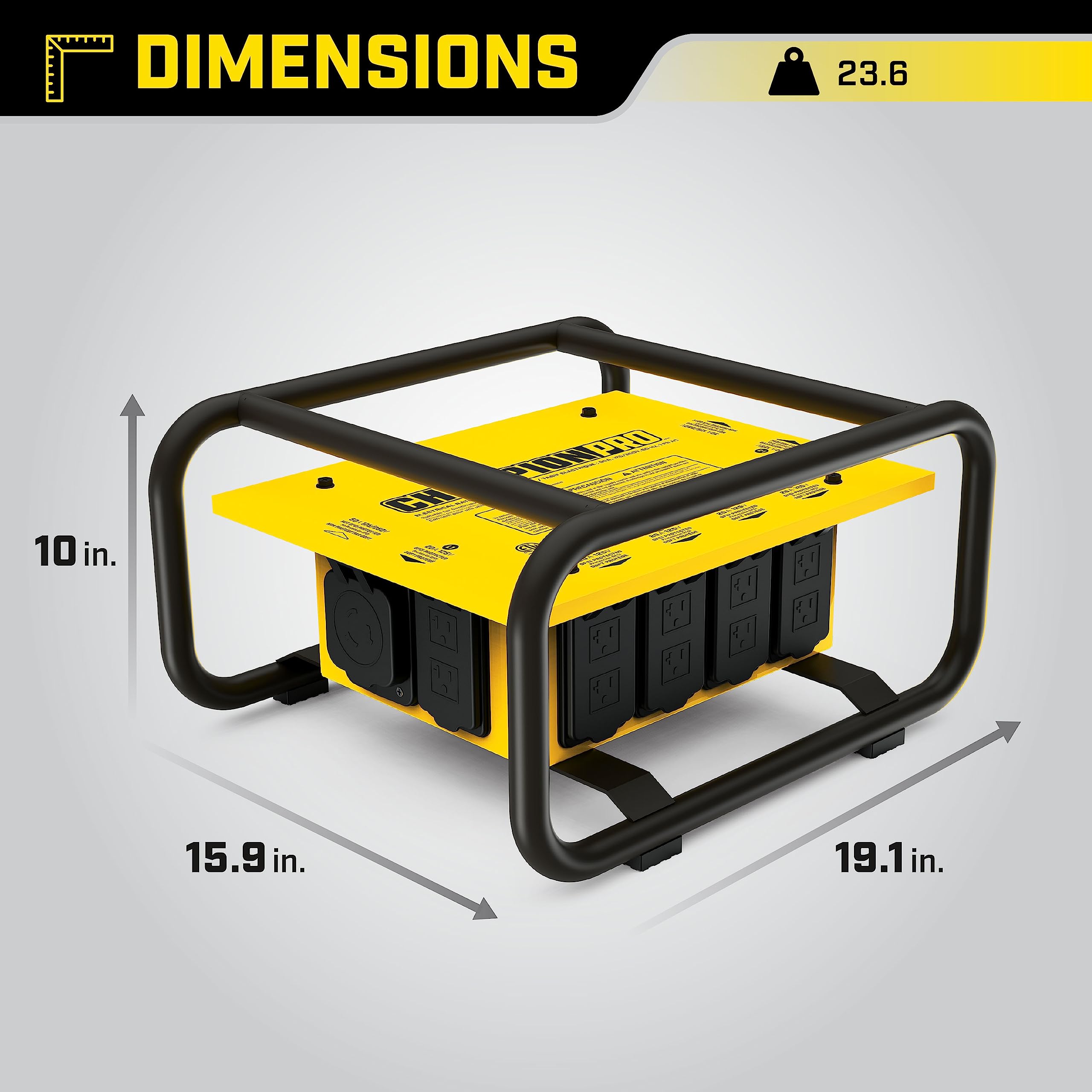

The Champion Power Distribution Box is easy to transport and set up, thanks to its compact design and convenient carry handle.
Whether you need to power multiple tools on a job site, run appliances during a power outage, or supply electricity to an outdoor event, Champion’s got you covered.
Invest in this power distribution box with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 1-year limited warranty and FREE lifetime technical support.
