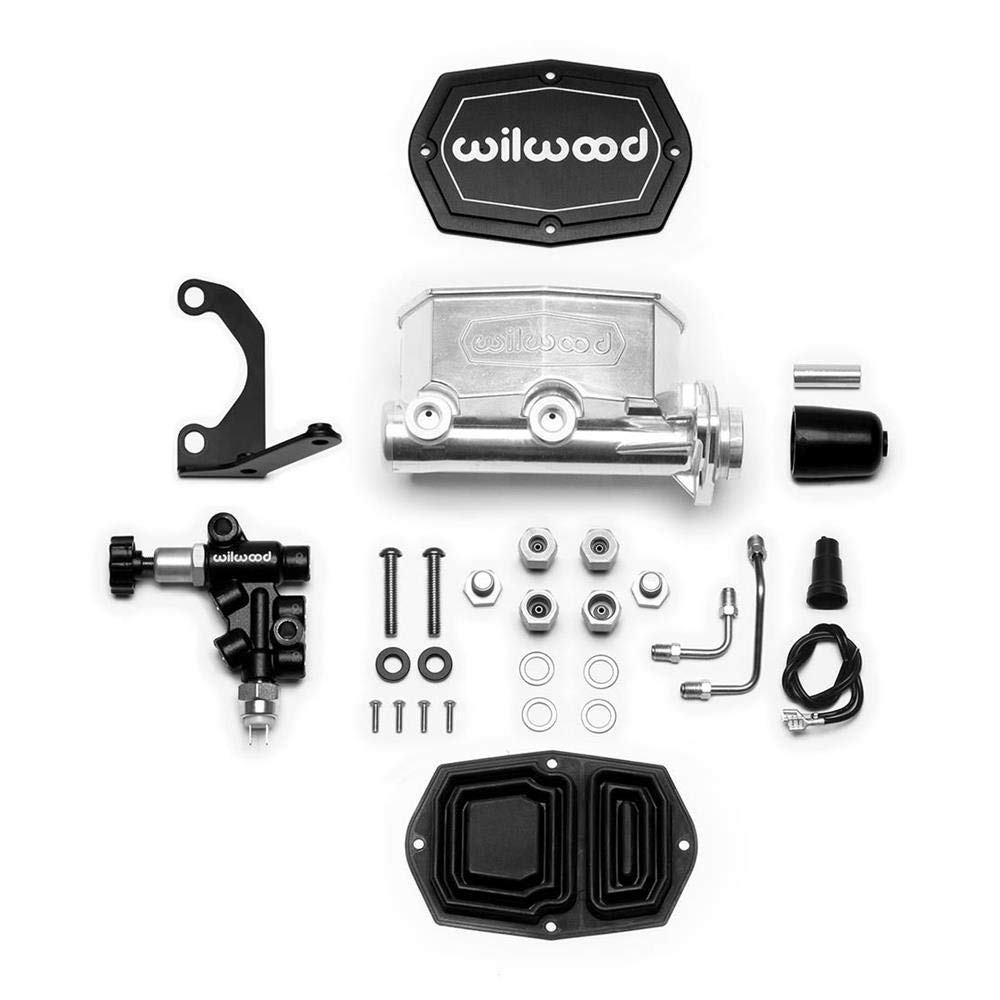

The new Compact Tandem Chamber Master Cylinder has been packaged by Wilwood with the Combination Proportioning Valve, L/H mounting bracket, fluid tubes, and mounting hardware in a kit.

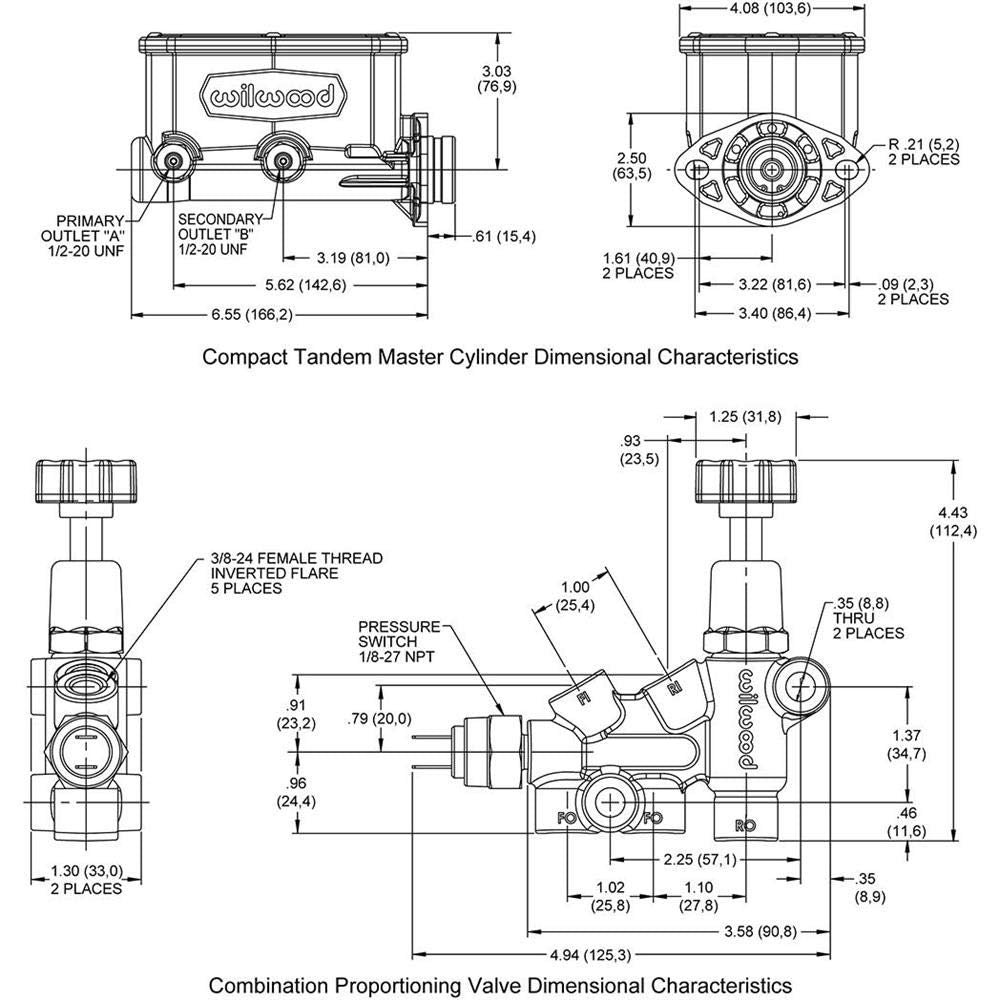

The Tandem Master Cylinder represents the latest refinements in brake pressure actuation and fluid control in a compact package measuring only 6.55” from mounting flange to end.
It features a slotted flange mounting that allows for simple bolt-on installation for many OE mounts, including popular Compatible with Chrysler, Corvette, GM, and Compatible with Ford Compatible with Mustang bolt patterns, and is suitable for manual or power brake system applications.
Generally, master cylinders without pushrods are intended for power brake use and are available in two bore sizes, 1.00” or 1-1/8”, and two finishes, ball burnished or black E-coat.
The combination proportioning valve simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems.
It maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder.
The combo valve and left-hand side bracket are finished in black E-coat for durability and performance appearance.
Precision bent stainless steel fluid tubes come with preinstalled plated steel tube nuts for straightforward bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder.
Stainless steel button head fasteners thread into the bracket for easy installation and long-lasting, rust-free performance.
Connect the fluid lines, bleed the system, and complete the installation.
