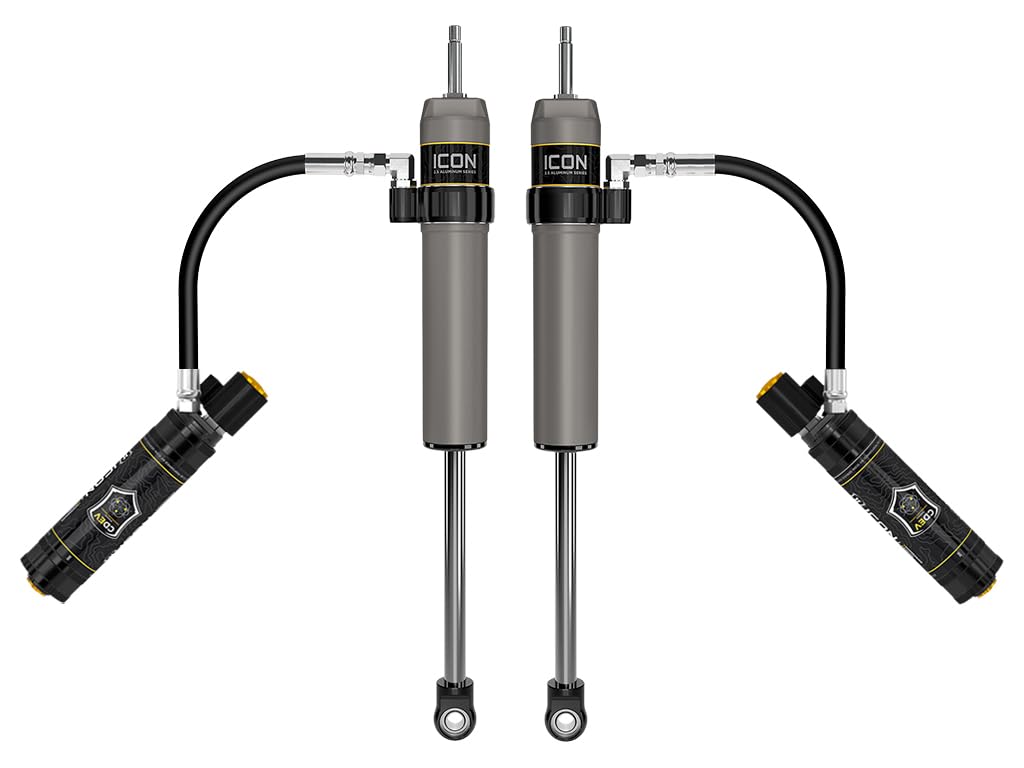

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are built and designed to give your vehicle a smooth ride on the street and outstanding performance off-road.
These shocks are specifically configured for each application in both damping tune and length.
Like all ICON'S Shock Absorbers, V.S.
2.5 Aluminum Series shocks are re-tunable and fully rebuildable.
For specific remote reservoir and piggyback applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that, when used, creates an additional 20% of damping force.
This additional force helps control the suspension when compressing at high velocity and prevents harsh bottom outs.
The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force created by the shock when compressed.
This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain.
CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle.

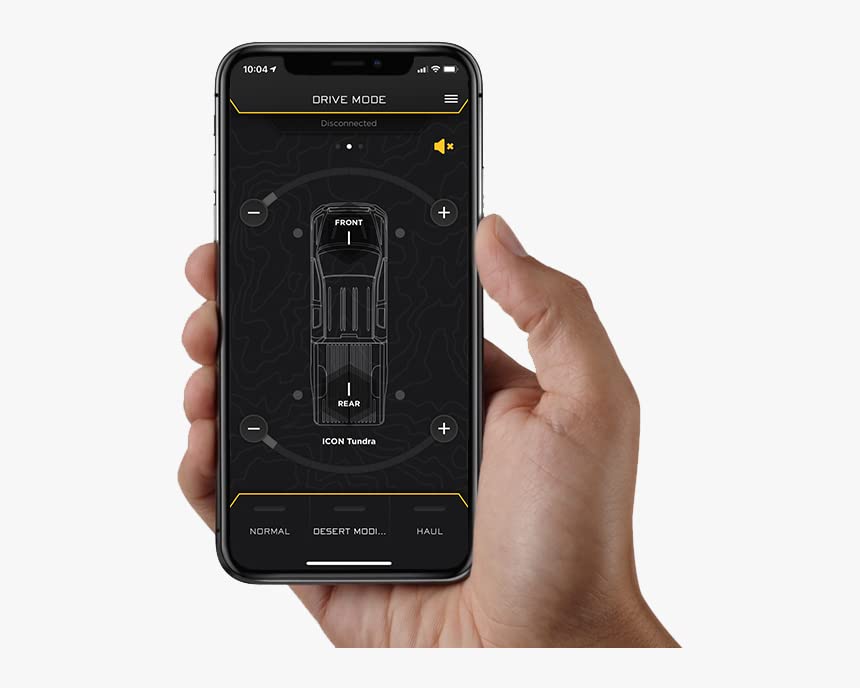

Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
