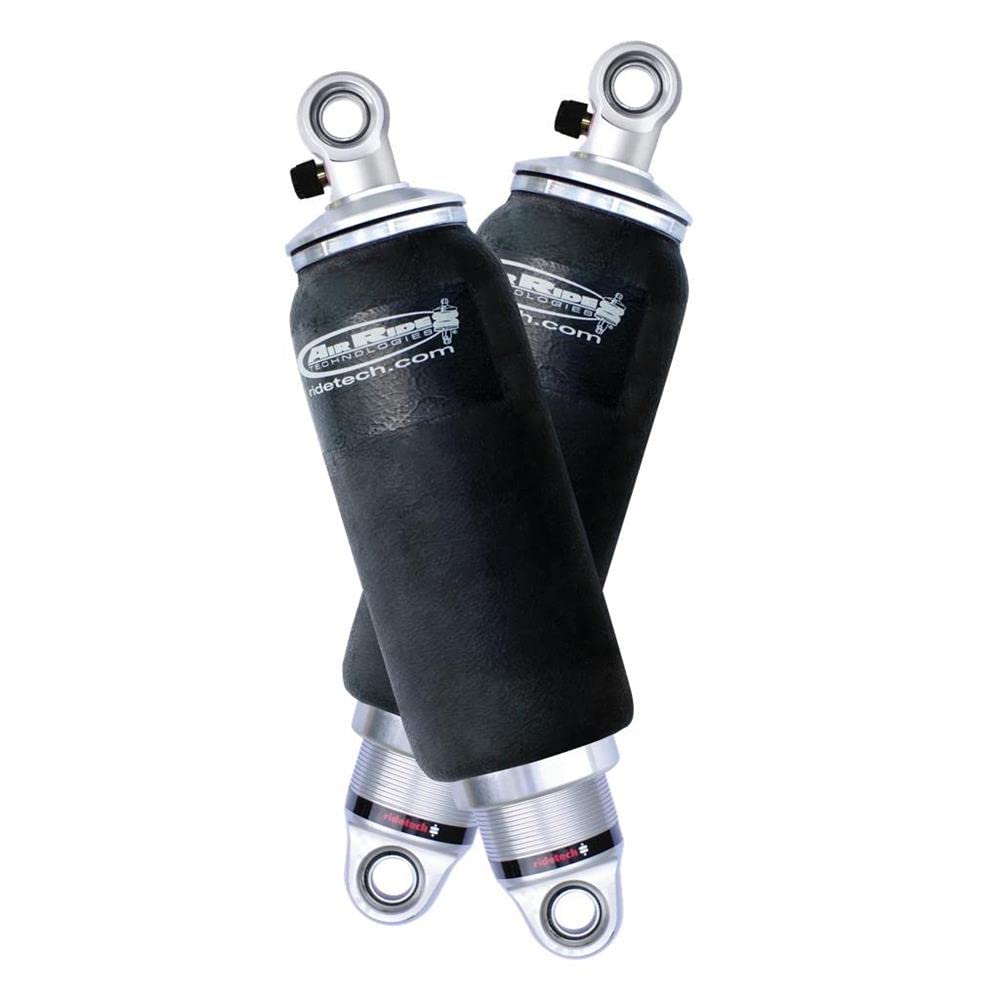

The 8000 ShockWave Series.
Although your specific vehicle may not be listed, a variety of ShockWaves are designed to work with just about whatever setup you’re using.
Whether replacing your current CoilOvers or starting a fresh build, air suspension needs can be suited.
Recommended Applications: Solid rear axle: Rear axle weight is less than 2,000lbs.
NOT recommended for IFS installations … not enough load capacity.

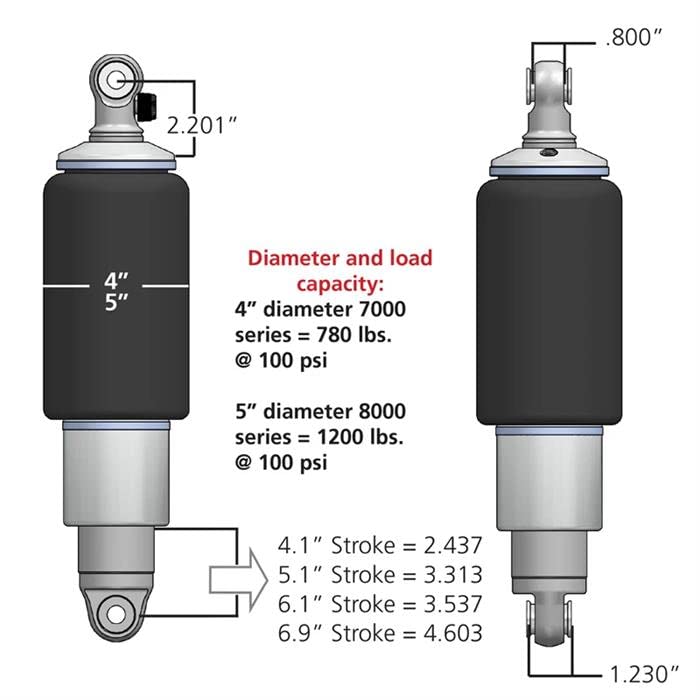

Diameter and load capacity: 5?
diameter 8000 series = 1,200 lbs.
@ 100 psi.
The Handling Quality Series features single adjustable shock valving.
It is housed in an impact forged aluminum construction.
The HQ series is available in a wide range of stroke lengths and mounting styles to fit a large variety of applications.
Features: Completely redesigned internal design.
Aluminum construction.
Single adjustable shock valving.
Available in a wide range of stroke lengths and mounting styles to fit a large variety of applications.
Impact forged body / mono-tube design for superior ride quality and durability.
Easy and precise valve adjustment with 24 rebound clicks.
