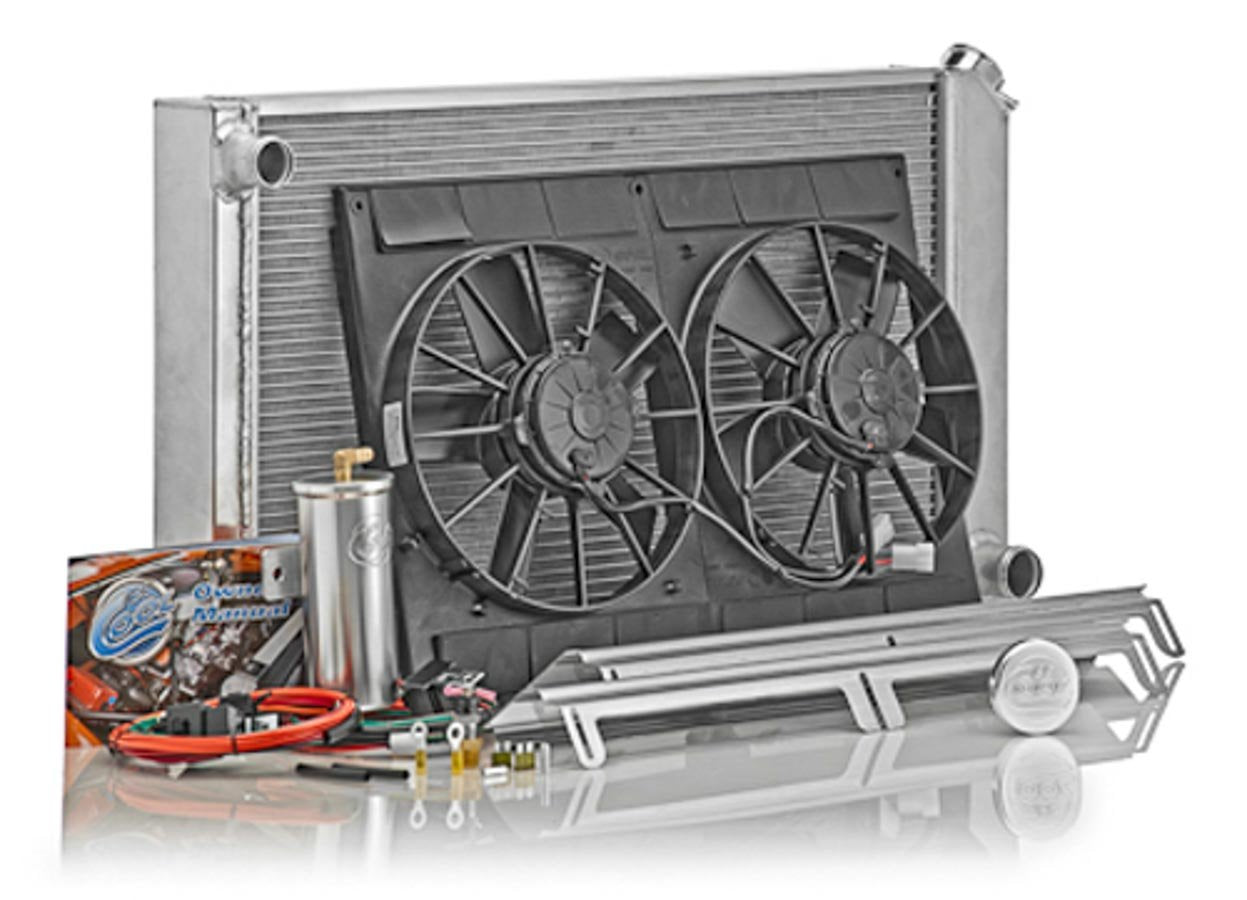

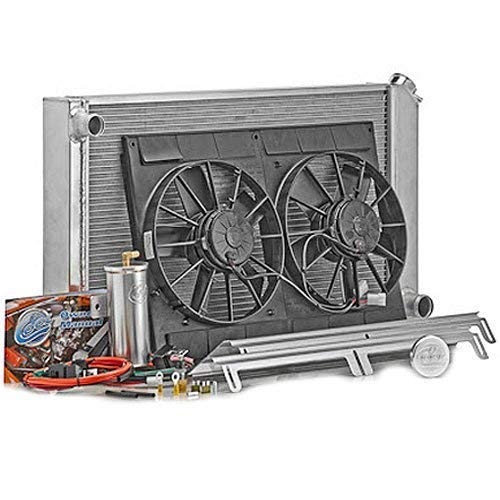

Aluminum Radiator Module System for 1968-77 Chevelle/El Camino, Regal, Cutlass, LeMans, 1970-77 Monte Carlo, 1971-79 Impala, and 1969-77 Grand Prix.
Rated up to 700 HP, it measures 33''W x 19''H.
Crossflow conversion is included for automatic transmission.
The natural finish radiator module system includes a direct-fit dual 1'' core radiator, qualifier electric fans, wiring harness with temperature control sending unit and 40 amp relays, stainless steel and/or aluminum electric fan mounting brackets with hardware, and a diamond-cut aluminum coolant recovery tank.
It also features a billet aluminum round-style radiator cap.
Inlet location and size is driver side / 1-1/2'' and outlet location and size is passenger side / 1-3/4''.
Core type is dual.
Radiator height is 18-1/2'', width is 33'', thickness is 3'', core height is 18'', core width is 27-1/2'', and core thickness is 2''.
Notes indicate that modification of the top mounting plate for crossflow conversion may be required on 1968-77 Chevelle/El Camino.
