With over 5 decades of experience, CSF manufactures radiators.

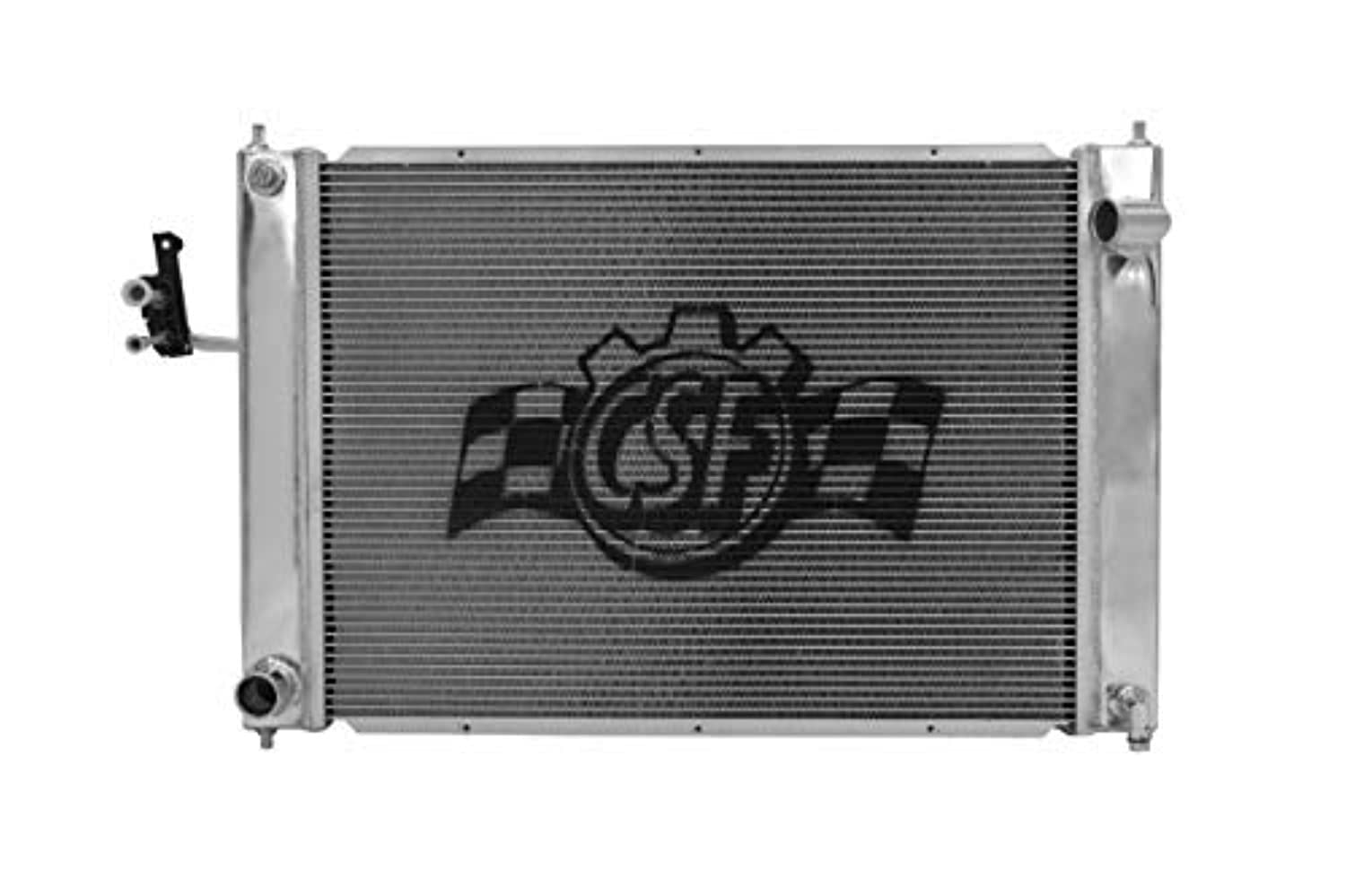

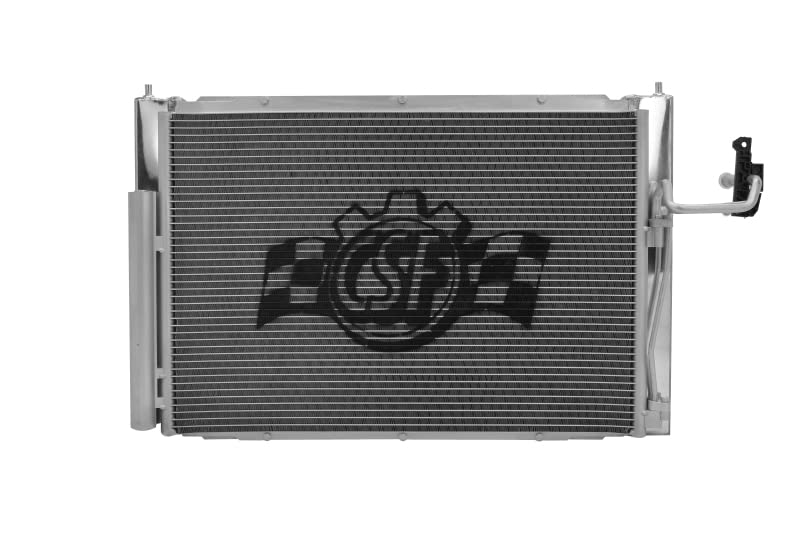

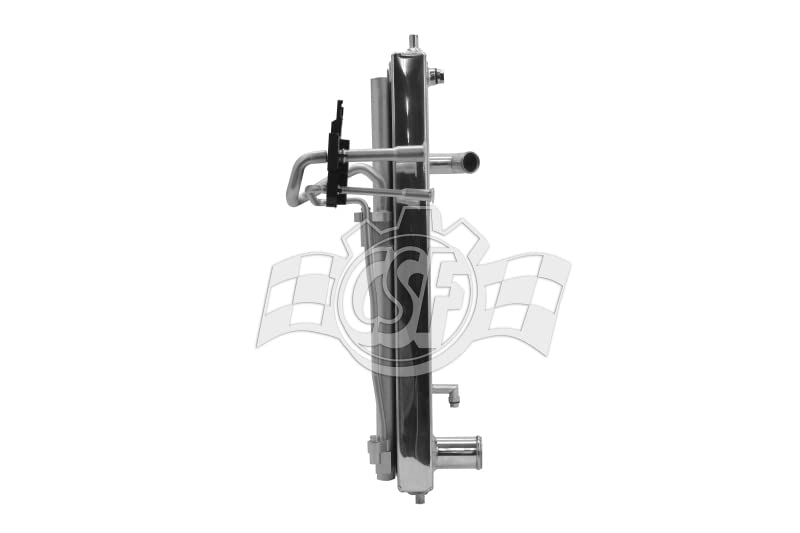

A CSF High-Performance All-Aluminum Radiator is the obvious choice for keeping your engine cool and your 370Z/G37 running at its best.
Designed for performance on the street or at the track, a performance radiator is essential for high horsepower builds and vehicles needing added cooling performance in motorsports environments.
The Triple-Pass Flow Structure allows coolant to flow across the radiator core three times before exiting for the lowest outlet temperatures possible.
This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape 'O' type radiator tube, CSF uses a specially engineered tube in the shape of a 'B'.
These 'B-tubes' are carefully formed and brazed over the seam to seal.
CSF can use thinner and lighter aluminum material (with better cooling efficiency) because this design is stronger than normal 'O' shape tubes that are welded.
The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs.
one large tube within the same space criteria.
With 'B-tubes', you achieve 'dual liquid laminar flow'.
CSF also employs ultra-efficient multi-louvered fins that are precisely aligned to maximize air movement through each radiator core.
Fin specifications are measured and calculated for each application and tested for maximum heat rejection efficiency in our wind-tunnel lab.
