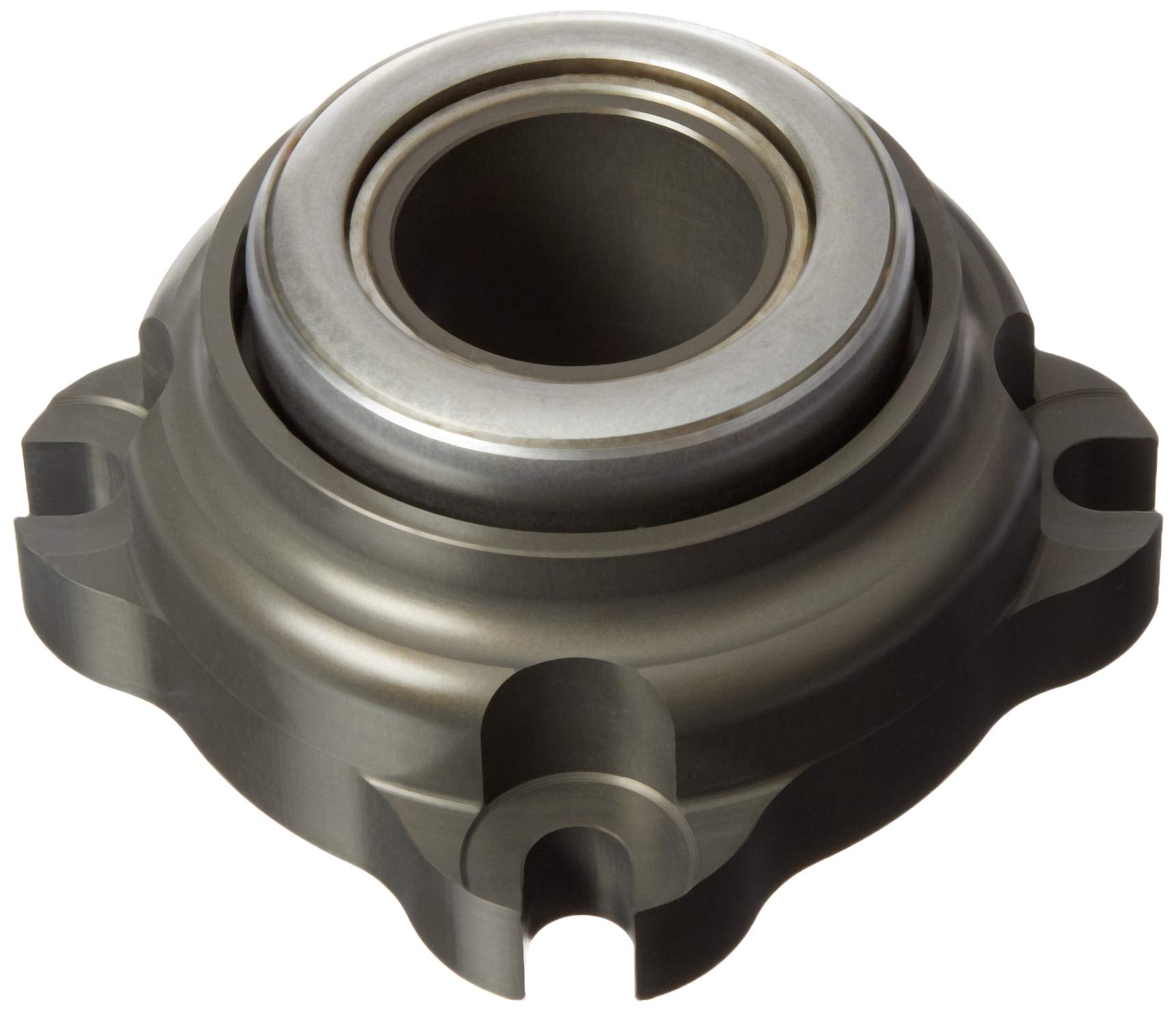

Compatible with Ram hydraulic release bearings designed for use with multiple disc clutches or Ram.
The bearing base mounts to the front of the transmission using the provided bolts.
Ram hydraulic bearings require a 3/4 or 7/8 inch master cylinder and the -4 AN connection line.
Total travel is .500 inches.
All parts necessary for rebuild are available from Ram.
Bearing ID is 1.357, throw out bearing OD is 2.50, stroke is .460, and overall height is 2.013.
This fits a standard Saginaw or Muncie transmission.
AN3 fittings are used.
Round face is for diaphragm type clutches, while flat face is for finger type clutches.
Learn more about hydraulic release bearings and how to properly install them by reading our tech article on how to install a hydraulic throwout bearing.
Clutches, flywheels, and release bearings are strictly factory warranty only.
The customer must return the unit to Ram for evaluation and inspection.
For a full list of warranty information, please see our warranty information here.
